Process; Completing Assembly; Operation - Swedstyle Memory S Handbuch

8 Swedstyle Memory - EN
CAUTION. Risk of minor or moderate injury through tripping
During assembly and operation, poorly routed Cables may become a trip hazard.
Tripping over Cables may lead to minor or moderate injury.
• Ensure that Cables are routed properly to avoid trip hazards
• Be careful not to trip over Cables when installing the Handset
NOTICE
• Ensure proper ESD handling during assembly. Damage that can be attributed to
electrostatic discharge will void warranty claims.
• To avoid damage to the product, measure the dimensions of the Handset before assembly.
• Before assembly, all parts must be acclimatised to the ambient conditions.
• Do not lift the Handset by its cable. This will cause irreparable damage to the produc
INFO Perform a product risk assessment so that you can respond to potential residual hazards.
Assembly instructions must be included in your end user Operating Manual.
4.1

Process

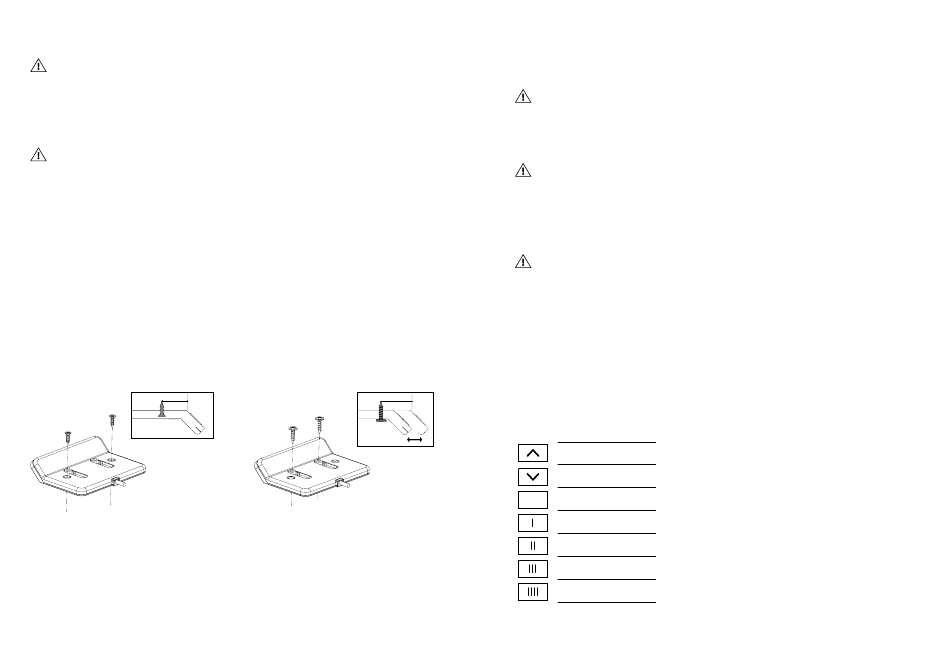

1. Choose whether you want to mount the hand control fixed or with a sliding function
34
2. Position the Handset under the table top and mark the position of the Mounting Points.
3. Use the screwdriver and 2 Mounting Screws to attach the Handset to the Table Top.
FIXED
28
NOTICE
The required tightening torque depends on the material of the Table Top. Do not exceed 2 Nm.
4.3

Completing assembly

After the Swedstyle Memory is attached to the Table Top, you must connect the Cable
to the Control Box.
SLIDING FUNCTION
34
28
5

OPERATION

CAUTION. Risk of minor or moderate injury through uncontrolled movement
The table may not always stop exactly at the expected position. Failure to anticipate the table's
movements may lead to minor or moderate injury through crushing.
• Wait until the system has completely stopped before attempting to use the table
CAUTION. Risk of minor or moderate injury through unsecured objects
While the table moves up and down, unsecured objects may fall off the table and onto body
parts. This may lead to minor or moderate injury through crushing.
• Ensure loose objects are kept away from the edge of the table
• Do not leave unnecessary objects on the table during movement
CAUTION. Risk of minor or moderate injury through crushing
Failure to release Handset Keys correctly may result in the table failing to stop properly.
This may lead to minor or moderate injury through crushing.
• Do not slide your finger to a different Handset key while another button is pressed
• Disconnect the system immediately if any Handset Key becomes stuck
INFO. The technology within the Handset may be interrupted by external interferences during
operation. This may lead to certain user inputs (i.e. button presses) not being recognized.
This section of the Operating Manual contains a selection of instructions for operating the Table
System to which the Handset is connected. Handset Keys are represented as follows:
UP Key
DOWN Key
S
SAVE Key
Memory Position Key 1
Memory Position Key 2
Memory Position Key 3
Memory Position Key 4
Swedstyle Memory - EN 9
