Connecting the electricity
2. Strip the insulation from the wires.
• Stripping length: 8 mm
Tightening torques
To avoid damage and faulty contacts, tighten the terminals using a torque of
NOTICE!
1.2 – 1.4 Nm.

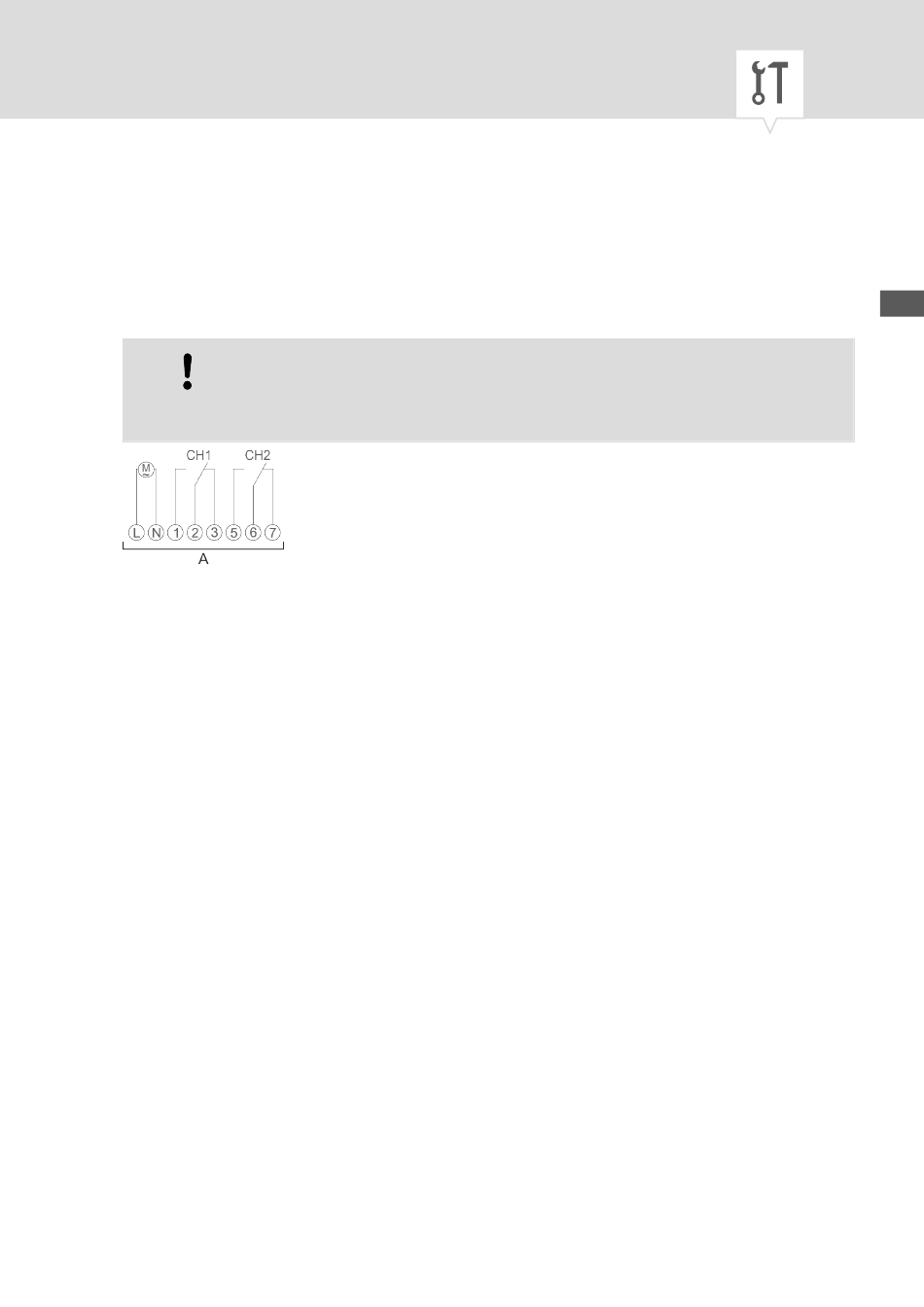

Fig. 5: Circuit diagram
A 2-channel extension
3. Connect the channel extension as per the circuit diagram (Fig. 5).
