Boffi ECLIPSE Montage- Und Serviceanleitung Seite 3

1
3
Ø35mm
Ø1" 3/8
- Non in dotazione
- Not in the equipment
- Pas donnés
- Nicht vorhandenen

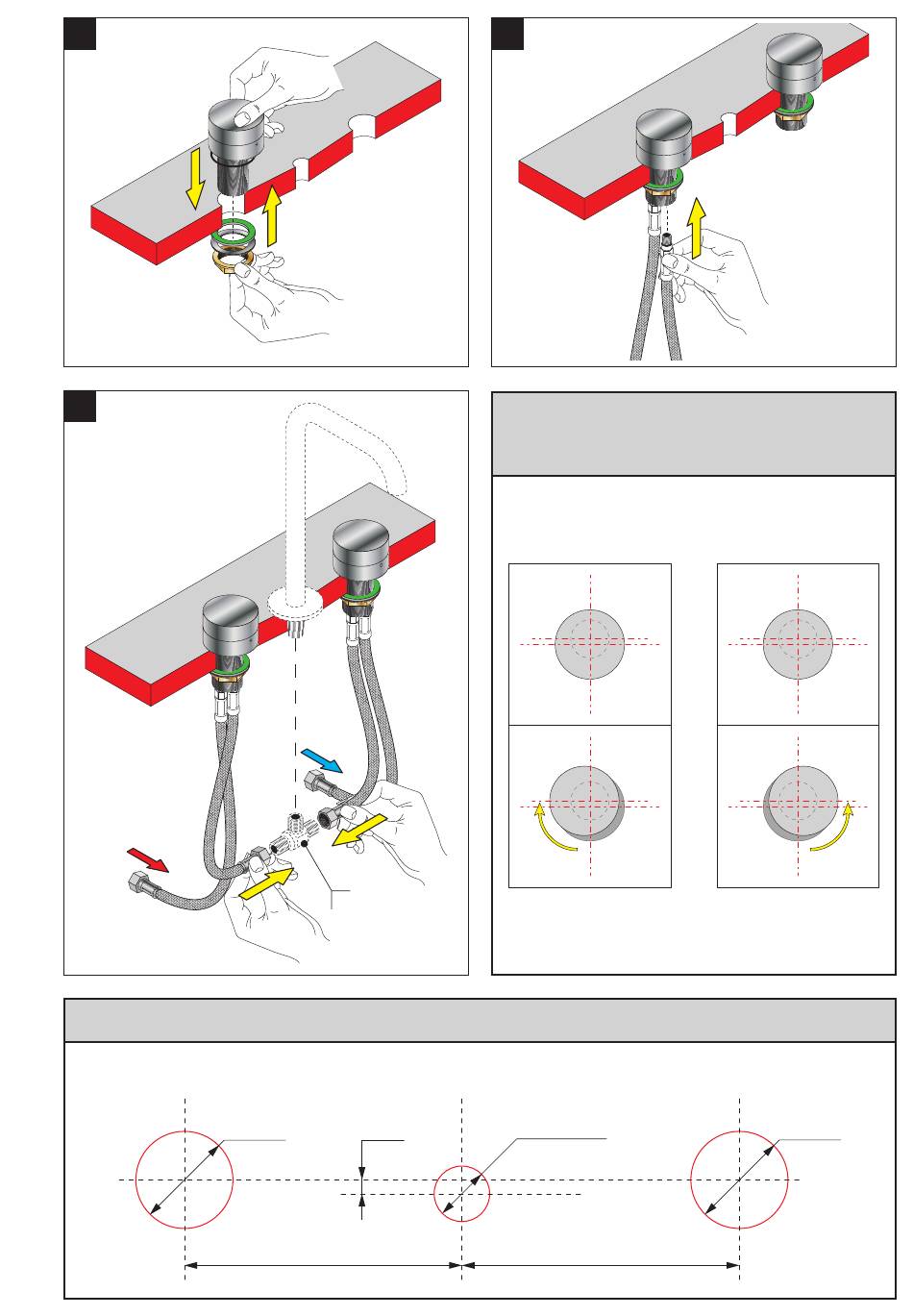

Schema di foratura - Drilling's diagram
Schème de percement - Lochenschablone
RGRX01-06 + RIRX03-04-09-10
5mm
13/64"
100mm
3" 15/16
2
Funzionamento rubinetti
Fonctionnement robinets
Arbeitsweise von Armaturen
CALDA
HOT
CLOSED
90°
OPEN
Ø20mm
Ø25/32"
100mm
3" 15/16
-3-
Taps working
CLOSED
OPEN
Ø35mm
Ø1" 3/8
FREDDA
COLD
90°
