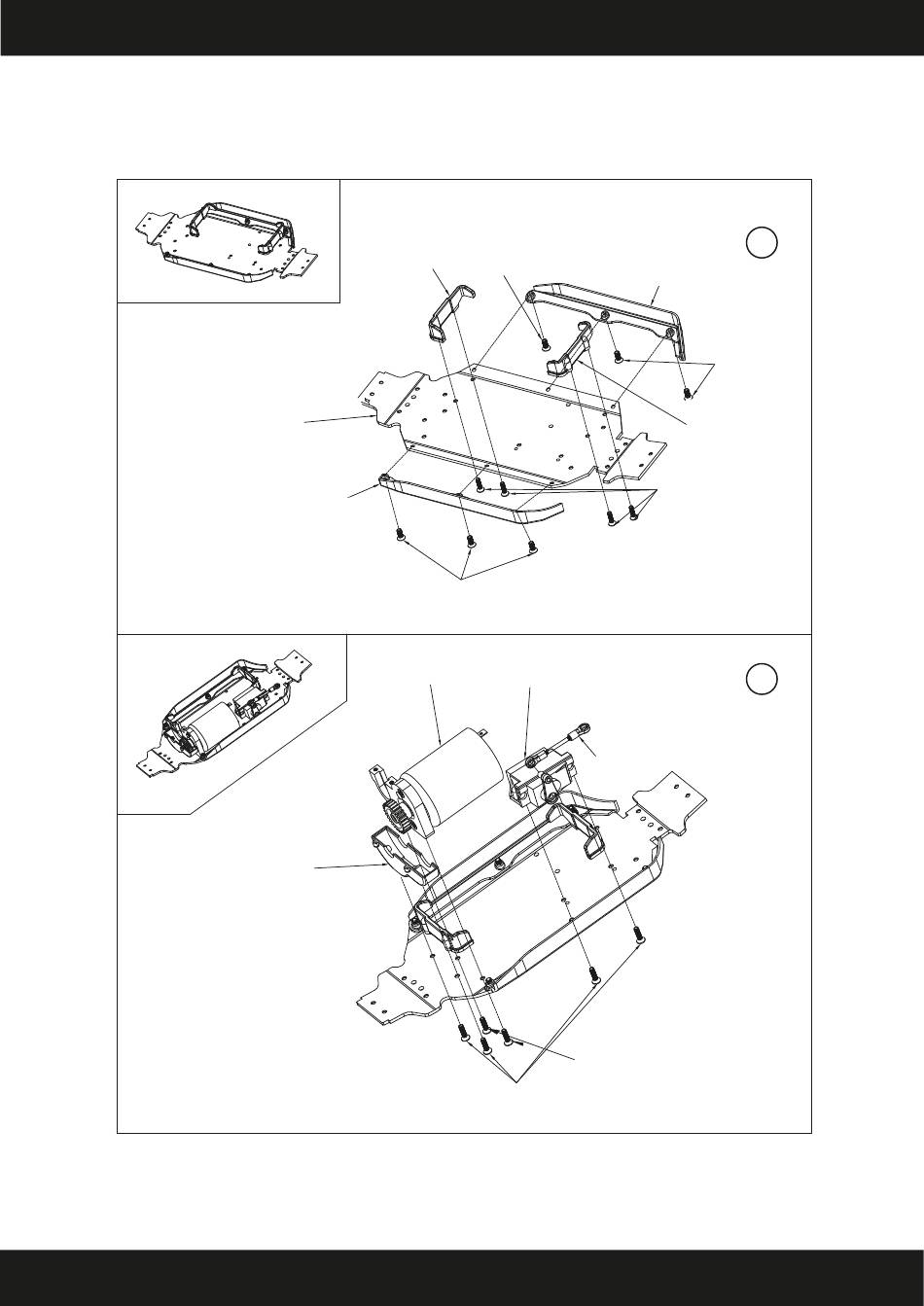

Battery
compartment
partition-A
287345 1249
Vehicle bottom
1255
Bottom rail right
Motor assembly
287356
1262
Bottom of
reduction gear
box
287377
1323
2.6*5KB
Cross countersunk
head self tapping
screw
287377 1323
2.6*5KB Cross countersunk head self
tapping screw
287397 1307
Steering gear components
287369
L959-54
2.6*8KB
Cross countersunk head self tapping
screw
MODSTER Mini Cito
21
1255
Bottom edge left
287377
1323
2.6*5KB
Cross
countersunk
head self
tapping
screw
287355
1261
Battery
compartment
partition-B
L959-54 287369
2.6*8KBCross
countersunk
head self tapping
screw
22
1287 287387
Steering gear tie rod assembly
0114
2.5*8KM
Countersunk hear screw
