AUSPACKEN & MONTAGEANLEITUNG
UNPACKING AND ASSEMBLY INSTRUCTIONS.

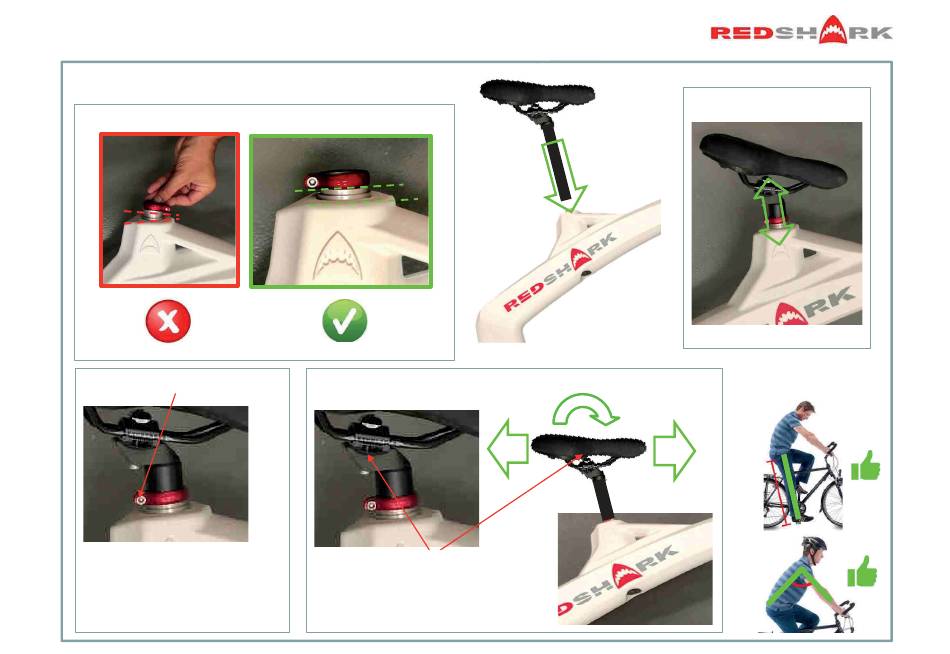

4. SATTEL-Montage
4.
SADDLE assembly
4.1. Öffnen und Einstellen der Klemmposition der Sattelstütze
4.1.
Open and adjust seat Post CLAMP position
4.3. Ziehen Sie die Schraube an
4.3.
Tight the bolt
DREHMOMENTANGABEN
SATTELSTÜTZE:
• Klemmschraube: M4
TORQUE SPECIFICATIONS
SEAT POST:
(1,9- 3,9 Nm) M6 (14,7-15,6 Nm)
Binder bolt: M4 (1.9- 3.9 Nm) M6 (14.7-
15.6 Nm) M8 (17.6-19.6 Nm)
M8 (17,6-19,6 Nm)
4.4. Einstellung der
4.4.
SADDLE position adjustment
SATTELposition
Lösen Sie die Schraube, stellen Sie den
Untight the bolt, adjust the seat to your
Sitz auf Ihre Position ein und ziehen Sie
position and tight the bolt.
die Schraube fest.
TORQUE SPECIFICATIONS:
DREHMOMENTANGABEN:
Seat fixing bolts (17.6 - 22 Nm)
• Sattelbefestigungsschrauben (17,6 - 22 Nm)
4.2. Überprüfen Sie die Höhe
4.2.
Check your height
Einstellungs-
Adjustment
empfehlungen
recommendations
4
