INTRODUCTION
The MICRO MODULE PACK allows the installation of a wireless
controller for incandescent, halogen, low-voltage, energy-saving or
LED light fixtures.
• Without the need to run wires, the Micro-Module Pack allows you to place a
switch where you choose.
• It integrates with existing switches eliminating the need of running new wires
or cutting extra holes in the wall.
• It installs in just minutes.
• It's compatible with all ebode home automation devices. For more informa-
tion, visit the site
DESCRIPTION

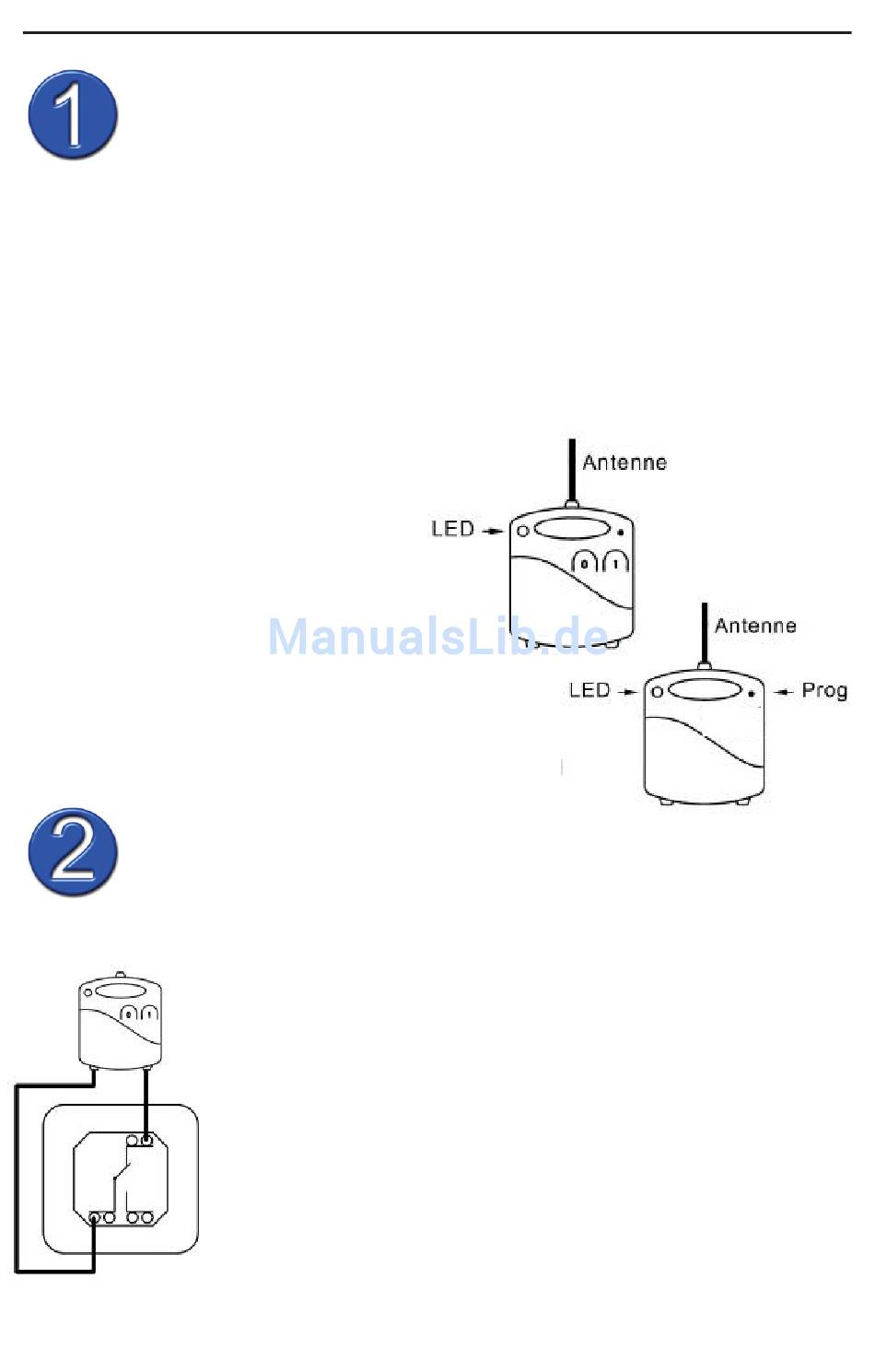

1.1 EMML Wireless Micro Transmitter
LED indicator
(1) For switching on/programming
(0) For switching off/programming
1.2 RMML Micro-Receiver
LED indicator
(PROG) for programming or (RESET)

INSTALLATION

July 2009
www.ebodeelectronics.eu.
2.1 EMML INSTALLATION OF THE MICRO TRANSMITTER
1. Cut out a 65 mm hole 40 mm deep with a hole saw.
2. Set the insert box in the wall .
3. Remove the battery's protective tab then press the
buttons to test. Pressing the (0) lights the red panel light.
Pressing the (1) lights the green panel light.
4. Connect the Micro Transmitter's wires to the switch (see
opposite diagram)
5. Place the Micro Transmitter and the switch in the insert
box taking care to pull out the antenna as much as you can.
page 6
Ref : PMML
