Technische Informationen
PLUS+1 Displays der Serie DM1x00
Installation

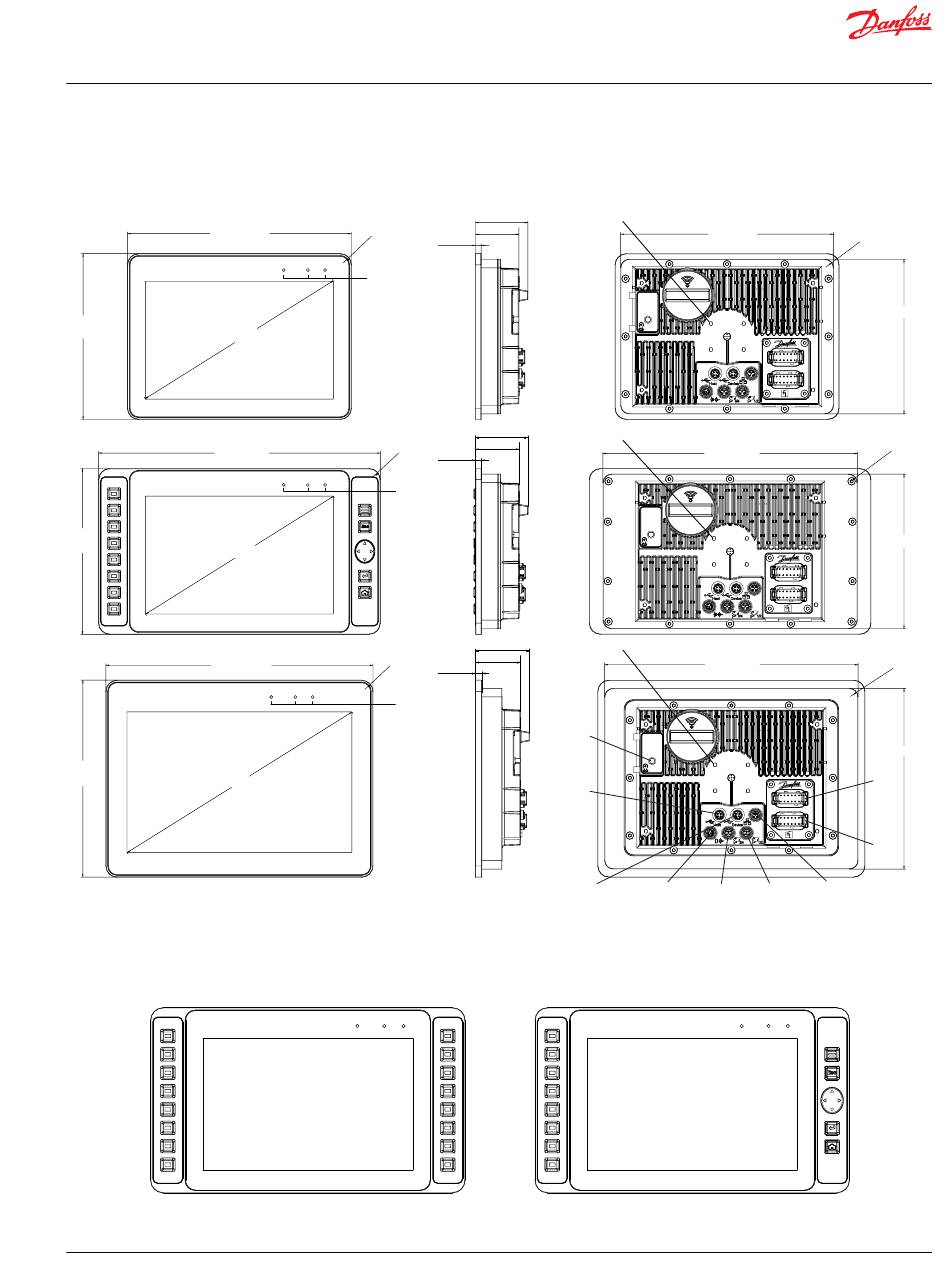

DM1x00-Serie Displayabmessungen
Abmessungen in mm [in], RAM-Halterung und Steckeranschlüsse
260.20 [10.24]
192.60
[7.58]
10.1 inch
327.2 [12.88]
192.60
[7.58]
10.1 inch
310.30 [12.22]
228.80
[9.01]
12.1 inch
Tasten-Varianten
Standard (links) und optionale Navigationstasten (rechts)
©
Danfoss | Dezember 2020
60.9 [2.40]
50.4 [1.98]
4 x R13
6.6 [0.26]
Flange
1 Light Sensor
2 RGB LED
3 RGB LED
60.9 [2.40]
50.4 [1.98]
4 x R13
6.6 [0.26]
Flange
1 Light Sensor
2 RGB LED
3 RGB LED
62.9 [2.50]
52.4 [2.06]
4 x R13
7.6 [0.30]
Flange
1 Light Sensor
2 RGB LED
3 RGB LED
RAM mount
247.2 [9.73]
RAM mount
295.5 [11.63]
RAM mount
294.4 [11.60]
C5
C4
C3
C9
C7
BC313277849405de-000202 | 21
4 x R10
179.60 [7.07]
4 x R10
179.60 [7.07]
4 x R10
209.90 [8.26]
C1
C2
C8
C6
