RAID Subsystem DVA-08E, -08K, -16K
12.3

Connecting a VIDOS NVR

To connect a VIDOS NVR
1.
NOTICE!
Two and more subsystems: Make the SCSI connection after you have changed the SCSI ID of
i
the second and the further subsystems.
Due to SCSI 3 specifications, we do not recommend to daisy chain more than three
subsystems (cable length: maximum 12 m (39.4 ft.)
The DVA-08E does not support daisy chaining.

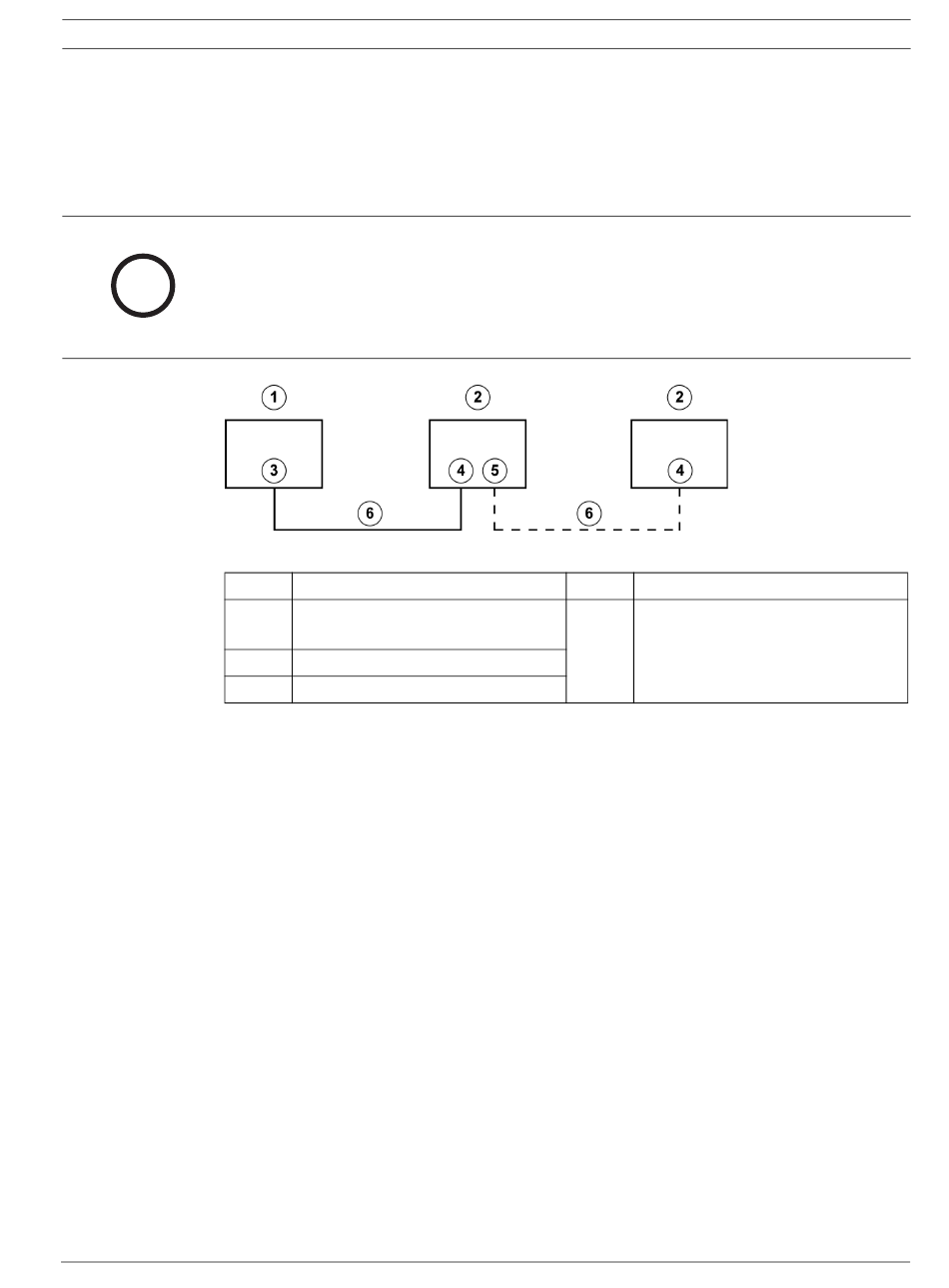

Figure 12.3 Connecting VIDOS NVR
1
2
3
4
2.
3.
4.
5.
6.
7.
Bosch Security Systems
Connect a VIDOS NVR with the subsystem. You must switch the VIDOS NVR and the
subsystem off.
Take care of proper connection and tighten the screws of the plug.
VIDOS NVR
RAID subsystem (no daisy chaining
for DVA-08E)
SCSI port
CH0-IN
For daisy chaining several subsystems, you must switch off the termination of channel
CH0/1-OUT of all subsystems except the last.
Expand the configuration tree -> click Configuration -> Channel -> Channel 0 or
Channel 1 -> ID Tab -> Termination: Disabled -> Apply.
Click Configuration -> Configuration Parameters -> System tab -> Reset the Controller -
> Apply. The subsystem is reset.
For daisy chaining, change the CH0/1-OUT SCSI channel ID of the second subsystem.
Expand the configuration tree -> click Configuration -> Channel -> Channel 0 or
Channel 1 -> Parameters Tab -> for DVA-08K: clear the 0 and 1 check boxes and select
the 2 and 3 check boxes; for DVA-16K: clear the 0, 1, 2, and 3 check boxes and select the
4, 5, 6 and 8 check boxes -> Apply.
Click Configuration -> Configuration Parameters -> System tab -> Reset the Controller -
> Apply. The subsystem is reset.
Click Configuration -> Host LUN Mapping and change to new ID.
Switch on the subsystem and then the VIDOS NVR. The power switches of the subsystem
are located on the rear side of the unit.
Quick Installation Guide
Connecting a Digital Video Recorder | en
5 CH0-OUT
6 DVA-ACON-VD68A or
DVA-ACON-VD680A
F.01U.027.800 | V4 | 2008.08
