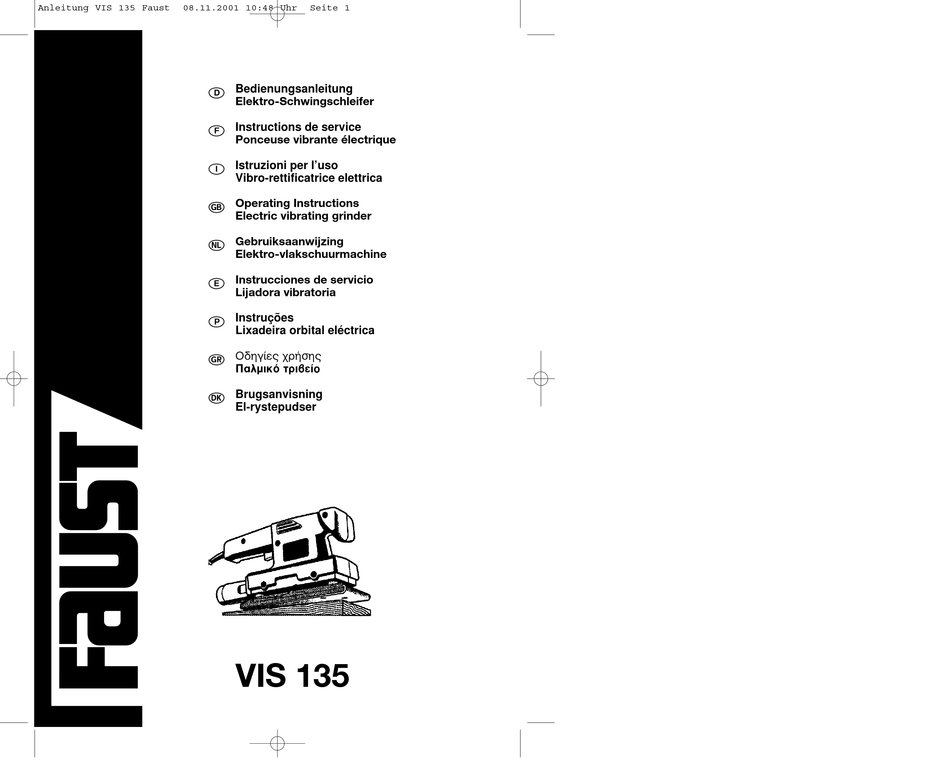

Anleitung VIS 135 Faust 08.11.2001 10:48 Uhr Seite 1 Bedienungsanleitung Elektro-Schwingschleifer Instructions de service Ponceuse vibrante électrique Istruzioni per l’uso Vibro-rettificatrice elettrica Operating Instructions Electric vibrating grinder Gebruiksaanwijzing Elektro-vlakschuurmachine Instrucciones de servicio Lijadora vibratoria Instruções Lixadeira orbital eléctrica O‰ËÁ›Â˜ ¯Ú‹Û˘ ¶·ÏÌÈÎfi...
Anleitung VIS 135 Faust 08.11.2001 10:48 Uhr Seite 2 VERWENDUNG Der VIS 135 ist zum Schleifen von 1 Frontgriff 2 Typenschild Holz, Metall, Kunststoff und ähnlichen 3 Ein-/Ausschalter Werkstoffen unter Verwendung des 4 Arretierknopf entsprechenden Schleifblatts be- 5 Handgriff stimmt. 6 Schleifpapier 7 Schwingplatte 8 Klemmvorrichtung...
60 mittel 10 44.602.01 100 fein 44.602.02 Um den Schwingschleifer optimal aus- nutzen zu können, benutzen Sie immer das Original-Einhell-Sonderzu- behör; dies ist in jedem Fachhandel erhältlich. Schleifpapierbefestigung – Netzstecker ziehen. – Schleifpapier in geöffnete Klemm- vorrichtung einlegen und schließen.
Anleitung VIS 135 Faust 08.11.2001 10:48 Uhr Seite 4 Please read these operating instruc- tions carefully with particular atten- 1 Front gripp 2 Machine identification tion to the safety notes. Always plate store these operating instruccions 3 On/Off trigger together with the vibrating grinder. 4 Locking button 5 Main grip 6 Sandpaper...
44.602.01 100, fine 44.602.02 In order to take full advantage of your vibrating grinder, always use original Einhell special accessories, available at all hardware shops. Attaching sandpaper – Remove the plug from the mains supply. – Insert the end of the sandpaper and close the clamping mechanism.
Anleitung VIS 135 Faust 08.11.2001 10:48 Uhr Seite 6 Lisez attentivement le mode d'em- ploi en prêtant une attention parti- 1 Poignée frontale 2 Plaque signalétique culière aux consignes de sécurité. 3 Interrupteur Marche- Conservez le mode d'emploi avec la Arrêt ponceuse vibrante.
44.602.01 100 fin 44.602.02 Pour vous assurer une utilisation opti- male de votre ponceuse, utilisez tou- jours les accessoires d'origine Einhell, disponibles chez tous les revendeurs spécialisés. Fixation du papier à poncer – Retirez le cordon secteur. – Introduire le papier dans le dispositif de serrage préalablement ouvert...
Anleitung VIS 135 Faust 08.11.2001 10:48 Uhr Seite 8 Leest u de gebruiksaanwijzing goed door en let u in het bijzonder op de 1 Voorste handgreep 2 Typeplaatje veiligheidswenken. Bewaart u de 3 Aan/uit-schakelaar gebruiksaanwijzing samen met de 4 Blokkeerknop vlakschuurmachine.
Seite 9
44.602.02 Om de vlakschuurmachine optimaal te kunnen gebruiken, gebruikt u steeds het originele speciale toebehoor van Einhell, dat is in elke speciaalzaak ver- krijgbaar. Bevestiging van het schuurpapier – Stekker uit het stopcontact trekken. – Schuurpapier in de geopende klem- inrichting leggen en sluiten.
Anleitung VIS 135 Faust 08.11.2001 10:49 Uhr Seite 10 Por favor lea cuidadosamente las instrucciones do servicio y preste 1 Asidero frontal 2 Placa de tipo especial atención a las indicaciones 3 Interruptor de de seguridad. Guarde las instruc- encendido ON/OFF ciones de servicio junto con la lija- 4 Botón de retención dora vibratoria.
100 fino 44.602.02 Para el uso óptimo de la lijadora vibra- toria, utilice siempre accesorios origi- nales Einhell; estos se obtienen en el comercio especializado. Fijación del papel abrasivo – Extraer el enchufe de red. – Colocar el papel abrasivo en el dis- positivo de fijación y cerrar.
Anleitung VIS 135 Faust 08.11.2001 10:49 Uhr Seite 12 Leia com atenção as instruções considerando particularmente as 1 punho frontal 2 placa de tipo regras de segurança. Guarde as 3 interruptor ON/OFF instruções juntamente com a lixa- 4 batão de fixação deira orbital.
Seite 13
44.602.01 100 fino 44.602.02 Para poder aproveitar integralmente as capacidade da lixadeira orbital, uti- lize sempre peças originais da Einhell que pode adquirir nas lojas especia- lizadas. Fixação da lixa – Tirar a ficha eléctrica. – Colocar a lixa no dispositivo de fixação aberto e apertar.
Anleitung VIS 135 Faust 08.11.2001 10:49 Uhr Seite 16 Leggere attentamente le istruzioni per l’uso, con particolare riguardo per le 1 Maniglia frontale 2 Targhetta del Produttore indicazioni di sicurezza. Conservare 3 Interruttore d’accen- queste istruzioni insieme alla vibro- sione/spegnimento rettificatrice.
44.602.01 100 fine 44.602.02 Per un rendimento ottimale della vibro- rettificatrice, utilizzare sempre acces- sori speciali originali Einhell, reperibili in tutti i negozi specializzati. Fissaggio della carta abrasiva – Staccare la spina dalla presa di cor- rente. – Inserire la carta abrasiva nel dispo- sitivo di bloccaggio aperto e chiu- derlo.
60 mellem 10 44.602.01 100 fin 44.602.02 For at udnytte rystepudseren optimalt, bør De altid benytte originalt Einhell-til- behør; det kan fås i enhver specialfor- retning. Fastgørelse af slibepapiret – Træk netstikket ud – Stik slibepapiret i den åbnede klem- meanordning og luk klemmen.
Seite 20
Anleitung VIS 135 Faust 08.11.2001 10:49 Uhr Seite 20 ISC 12/97...
