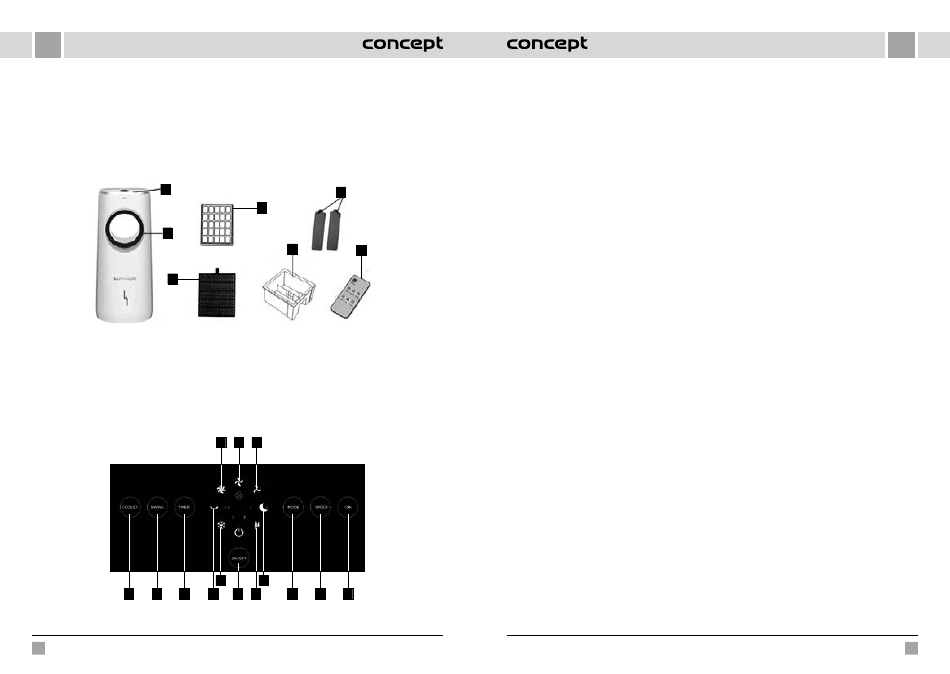

PRODUCT DESCRIPTION

1 Control panel with display
2 Air outlet
3 Dust filter
4 Water filter
5 Freeze pack
6 Water tank
7 Remote control
1
2
4

DESCRIPTION OF THE CONTROL PANEL

A Cooling mode button
B Oscillation button
C Timer button
D ON/OFF button
E Mode setting button
F Airflow speed setting button
G Ionization function button
A B. C
Note: Functions on the control buttons of the control panel correspond to the functions of the buttons on the remote
control.
46
5
3
6
7
H Cooling mode indicator
I Oscillation indicator
J High airflow speed indicator
K Medium airflow speed indicator
L Low airflow speed indicator
M Sleep mode indicator
N Natural breeze mode indicator
J K L
H M
I D N E F G
OPERATING INSTRUCTIONS
Connect the power cord to the mains. The appliance is in standby mode.
ON/OFF button (D)
Press the ON/OFF button to switch off the appliance. After switched on, the appliance starts at low airflow speed.
Airflow speed setting button (F)
Press this button to change the airflow speed in 3 levels (the corresponding indicator always lights up on the display).
Mode setting button (E)
Press this button to choose from 3 saved modes:
1. Basic: no indication on the display. It is necessary to set the airflow level manually (this mode is set after starting
the appliance).
2. Sleep: the icon (M) is displayed.
3. Natural breeze: the icon (N) is displayed.
Timer button (C)
Use the timer button to set the required operating time from 0 to 7.5 hours in 0.5-hour intervals.
Ionization function button (G)
Press this button to switch on/off the ionization function.
Oscillation button (B)
Press this button to switch on/off the oscillation function.
Cooling mode button (A)
Press this button to switch on/off the air cooling function.
Note: Always pour water into the water tank before starting the cooling mode!
Filling the water tank with water
Always switch off the appliance and unplug it from the mains before filling or emptying the water tank.
• Release the lock of the water tank on the back side of the appliance.
• Remove the water tank from the appliance. (In order to completely remove it, you need to release the pump
locks inside the tank and remove the pump. Make sure that the pump is installed in its original position before
reinstalling the tank.)
• Fill the water tank with water (we recommend using demineralized water to ensure maximum lifetime of the
appliance).
• Make sure that the water level is between the MIN and MAX lines.
• Adding ice cubes or freeze packs into the water in the water tank make the air cooling function more efficient (the
freeze packs can be re-frozen and reused).
• Make sure that the water level does not fall below the MIN line (applies only in active cooling mode).
• We recommend changing the water at least once a week.
