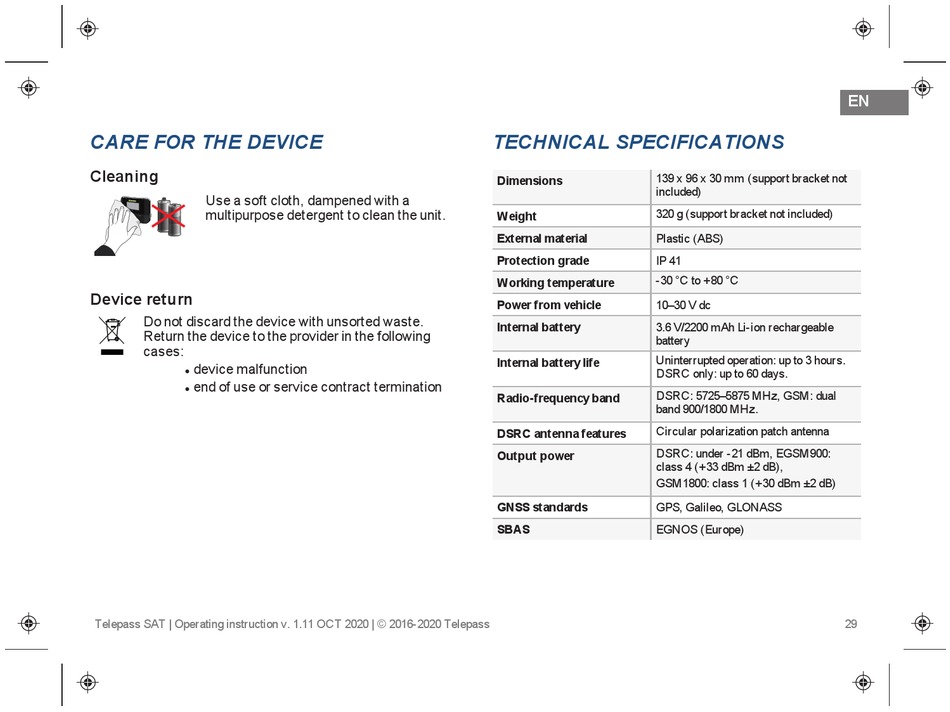

CARE FOR THE DEVICE
Cleaning
Use a soft cloth, dampened with a
multipurpose detergent to clean the unit.
Device return
Do not discard the device with unsorted waste.
Return the device to the provider in the following
cases:
device malfunction
l
end of use or service contract termination
l
Telepass SAT | Operating instruction v. 1.11 OCT 2020 | © 2016-2020 Telepass

TECHNICAL SPECIFICATIONS

139 x 96 x 30 mm (support bracket not
Dimensions
included)
320 g (support bracket not included)
Weight
External material Plastic (ABS)
Protection grade IP 41
-30 °C to +80 °C
Working temperature
Power from vehicle 10–30 V dc
Internal battery 3.6 V/2200 mAh Li-ion rechargeable
battery
Uninterrupted operation: up to 3 hours.
Internal battery life
DSRC only: up to 60 days.
DSRC: 5725–5875 MHz, GSM: dual
Radio-frequency band
band 900/1800 MHz.
Circular polarization patch antenna
DSRC antenna features
DSRC: under -21 dBm, EGSM900:
Output power
class 4 (+33 dBm ±2 dB),
GSM1800: class 1 (+30 dBm ±2 dB)
GNSS standards GPS, Galileo, GLONASS
SBAS EGNOS (Europe)
