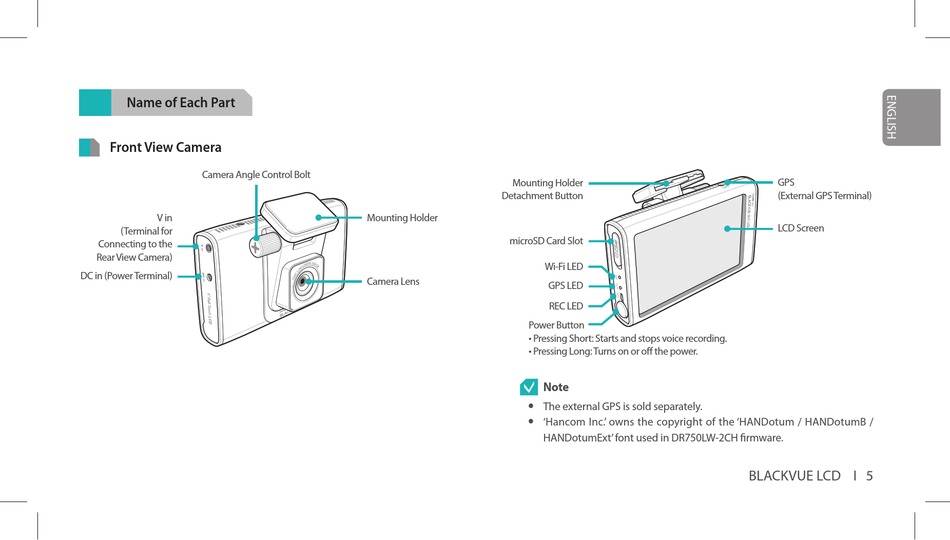

Name of Each Part

Front View Camera
Camera Angle Control Bolt
V in
(Terminal for
Connecting to the
Rear View Camera)
DC in (Power Terminal)
Mounting Holder
Detachment Button
Mounting Holder
microSD Card Slot
Wi-Fi LED
Camera Lens
Power Button
• Pressing Short: Starts and stops voice recording.
• Pressing Long: Turns on or off the power.
Note
y The external GPS is sold separately.
y 'Hancom Inc. ' owns the copyright of the 'HANDotum / HANDotumB /
HANDotumExt' font used in DR750LW-2CH firmware.
GPS LED
REC LED
GPS
(External GPS Terminal)
LCD Screen
