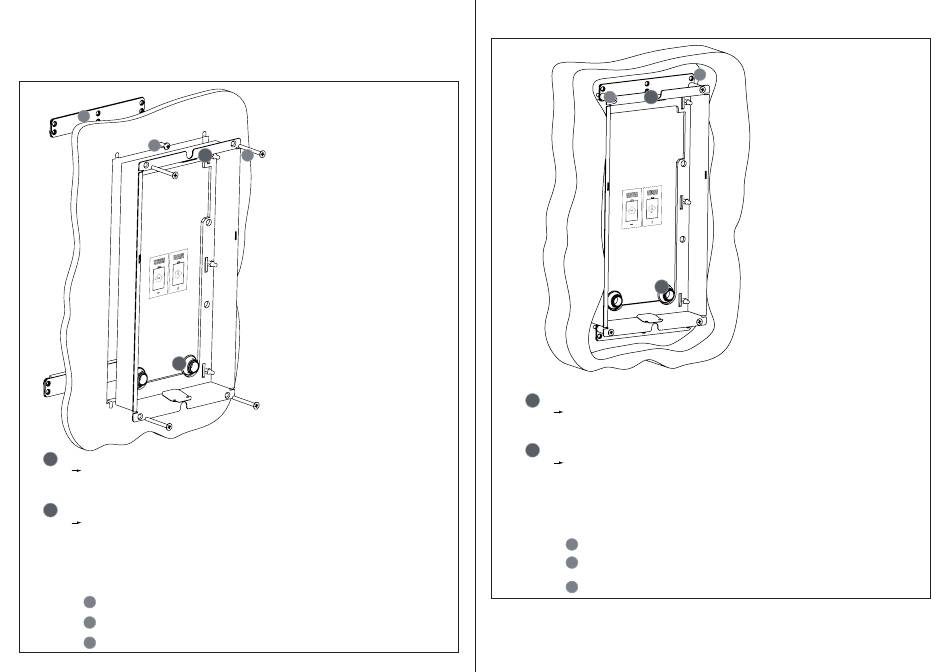

Cavity-mounting
It is possible to carry out the cavity-mounting for walls with a thickness of up to 35 mm
(1.38 inch).
In case of thicker walls, it is recommended to mount the flush-mount box with RAWL ®
spring toggles M3x50.
2a
2b
1
1
..... IP 65 cable feed through
Installation cable feed through.
Note: - Per cable one cable feed through has to be used!
- It is only possible to use cables with a diametre of 2 - 7mm (0.08 - 0.28 in)
- The opening of the cable feed-in has to be smaller than the diameter of the used cable!
2
..... Flush mount box
Mounting via mounting kit
Note: - Take care of the mounting direction ("UP" icon).
- The flush mount box has to be mounted flush with the wall.
- Please take care of the correct mounting direction: The microphone has to be located at
the bottom edge of the terminal and it may not be covered.
For the position of the microphone, please see the short reference of the touch terminal.
- Watertight material to be placed between wall and flush mount box (if required) has to be
ordered separately from other manufacturers.
2a
Glue the mounting brackets onto the backside of the wall.
Additionally it is also possible to screw the mounting brackets onto the wall.
2b
Fix the flush mount box with the 4 mounting screws
2c
2
2c
Wall-mounting
2
2a
1
1
..... IP 65 cable feed through
Installation cable feed through.
Note: - Per cable one cable feed through has to be used!
- It is only possible to use cables with a diametre of 2 - 7mm (0.08 - 0.28 in)
- The opening of the cable feed-in has to be smaller than the diameter of the used cable!
2
..... Flush mount box
Mounting via mounting kit
Note: - Take care of the mounting direction ("UP" icon).
- The flush mount box has to be mounted flush with the wall.
- Please take care of the correct mounting direction: The microphone has to be located at
the bottom edge of the terminal and it may not be covered.
For the position of the microphone, please see the short reference of the touch terminal.
- Watertight material to be placed between wall and flush mount box (if required) has to be
ordered separately from other manufacturers.
The flush mount box, the spacers and the mounting brackets have to be screwed together.
2a
To prepare for pastering, it is recommended to fix the flush mount box to
2b
the wall via the mounting openings of the mounting brackets.
Before plastering, insert the flush-mount cover (not pictured).
2c
2b
