Commend POE-SPLIT-M Kurzanleitung

POE-SPLIT-M
Mounting kit for POE-SPLIT

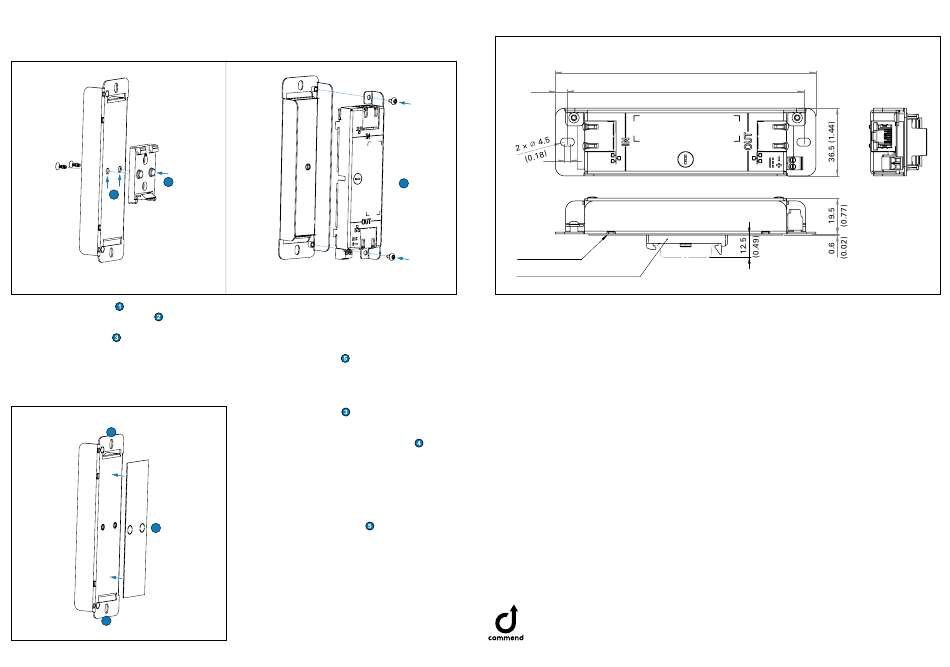

Mounting with top-hat rail clamp
2
1
• Break open the holes in the housing.
• Position the top-hat rail clamp in the desired orientation and screw it onto the housing shell from
the inside.
• Place the POE-SPLIT in the correct orientation (ensure correct mounting direction) in the housing
and screw it on.
• Optional: If the installation situation permits it, use these mounting holes
below).
Mounting with double-sided adhesive tape
5
4
5
3
for installation (see
• Place the POE-SPLIT in the correct orienta-
tion (ensure correct mounting direction) in the
housing and screw it on (see above).
• Place the double-sided adhesive tape
bottom side of the housing shell (only for the
flush mount box of an id5, od5 or od10). There
must be no contact between the Intercom sta-
tion and the POE-SPLIT inside the flush mount
box. The orientation of the POE-SPLIT must be
adapted to the respective wiring.
• Optional: If the installation situation permits it,
use these mounting holes for installation.
Dimensions
Measuring units in mm (in), not to scale!
6.5 (0.26)
3 (0.12)
Double-sided
adhesive tape
Top-hat rail clamp
Mounting instructions
• This kit shall be installed by trained and qualified personnel only.
• Only use recommended tools when installing this kit.
• The double-sided tape is intended for one-time application and cannot be realigned after it has
been positioned.
• Do not install this kit on unstable walls or on surfaces which cannot support the weight of the
device.
Extent of supply
• Housing shell lined with insulation foil on the inside
• 2 pan head screw (M3×5, TX 10) for mounting the POE-SPLIT onto the housing shell
• Top-hat rail clamp
• 2 countersunk screw (PT3×8, TX 10) for mounting the top-hat rail clamp
on the
• Double-sided adhesive tape for alternative mounting
• 2 wall mounting screws (4 × 45 mm, Phillips recessed head) incl. dowels (SX6)
• Short reference
Manufacturer's reference
For technical specifications, see the respective data sheet.
For the latest software and documentation, visit: www.commend.com
Keep this description in safe custody.
Type: D-BZ-POESPLITM, Version: 1.0/0321
