Wall mount kit EE SH9
The wall mount kit EE SH9 (uncoated stainless steel) can be used to mount the Duetto
series versions EE 980, EE 980CM, SIP-EE 980 and SIP-EE 980CM to the wall (in surface mount
version).
1 2
3 4

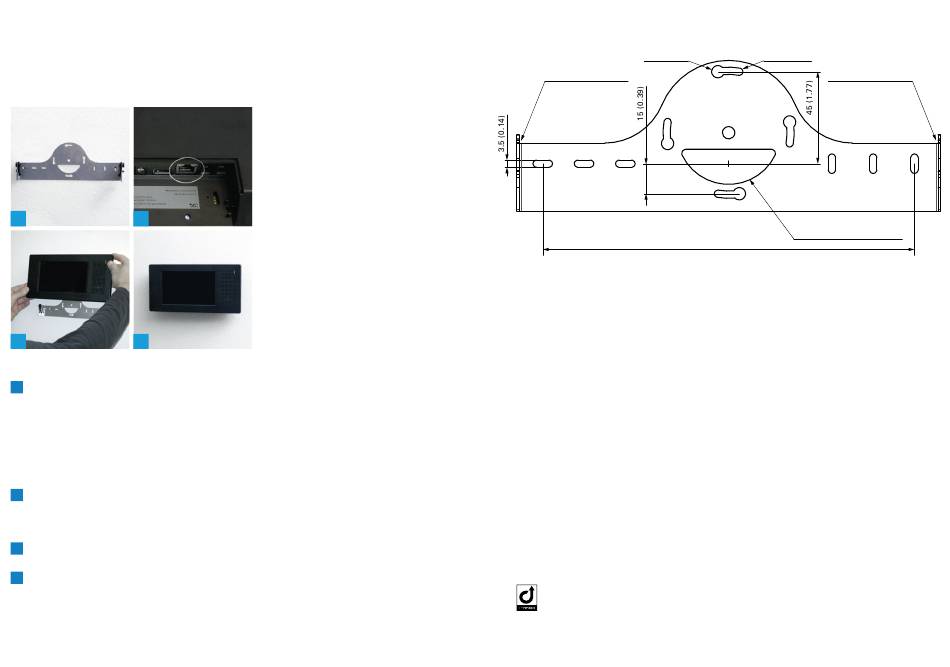

Mount the wall kit on the wall. Use the outermost openings of the wall mount kit (if
1
possible).
Recommendation:
• Mounting on concrete and bricks: Use dowels S5 (5 x 25 mm) and chipboard screws
(5 x 25 mm).
• Mounting on flush-mounted box: Use the screws of the flush-mounted box (e.g. chip-
board screws (3.0 x 15 mm)).
Screws and dowels are not included in extent of supply.
Connect all required cables to the control station. Be sure that all cables for the control
2
desk are routed through the appropriate opening at the centre of the wall mount kit.
Note: The connection diagram of the control station is included in the short reference
"D-BZ-EE980" .
Slide the control station from the top onto the wall mount kit into the appropriate
3
opening at the back of the device until the anti-twist protection locks in place.
Control station Duetto is ready to use.
4
Dimensions
Dimensions in mm (in), not to scale!
Ø 6 (0.24)
anti-twist protection
Latest software and documentation
For current software and documentation visit: www.commend.com
Manufacturer's reference
The device may be only installed by authorised engineers.
Please keep this description in safe custody!
Type: D-BZ-EESH9, Version: 1.1/1016
Ø 3.5 (0.14)
anti-twist protection
opening for cable gland
180 (7.09)
