About the device
1. Introduction
Thank you for selecting this Uninterruptible Power
Supply (UPS). It provides you with a perfect protection
for connected equipment. The manual is a guide to
install and use the UPS. It includes important safety
instructions for operation and correct installation of the
UPS. If you have any problems with the UPS, please
refer to this manual before calling a technical service.
The device works according to the Line Interactive
principle and offers an AVR feature, which means an
automatic voltage regulation of the output voltage by
using a boost & buck circuit. It can compensate mains
voltage fluctuations in a range of 70%...125% nominal
mains voltage.
For data safety and timely shutdown of PCs, the UPS
features two communication ports for monitoring pur-
poses.
2. Installation
2.1 Unpacking
1. The UPS device weighs between 13kg and 24kg,
depending on the model. Be careful when unpacking
and lifting it. Improper use of force might harm you.
2. Included in the delivery are:
- 1x User manual German/English
- 1x UPS communication cable RS232
- 1x UPS communication cable USB
- 1x Modem cable
- 1x Mains cord, type IEC
2.2 2.2 Selecting installation position
It is necessary to select a proper environment to install
the unit, in order to minimize the possibility of damage
to the UPS and extend its life time. Please follow the
advices below:
1. Keep at least 20cm (8 inches) clearance from the
rear panel of the UPS to the wall.
2. Do not block the airflow to the ventilation openings
of the unit.
3. Please check the installation environment to avoid
overheat and excessive moisture.
4. Do not place the UPS in an environment near dusty,
corruptive or salty material or flammable objects.
5. Do not expose the UPS to outdoors.
Date: 04-06-2018
10

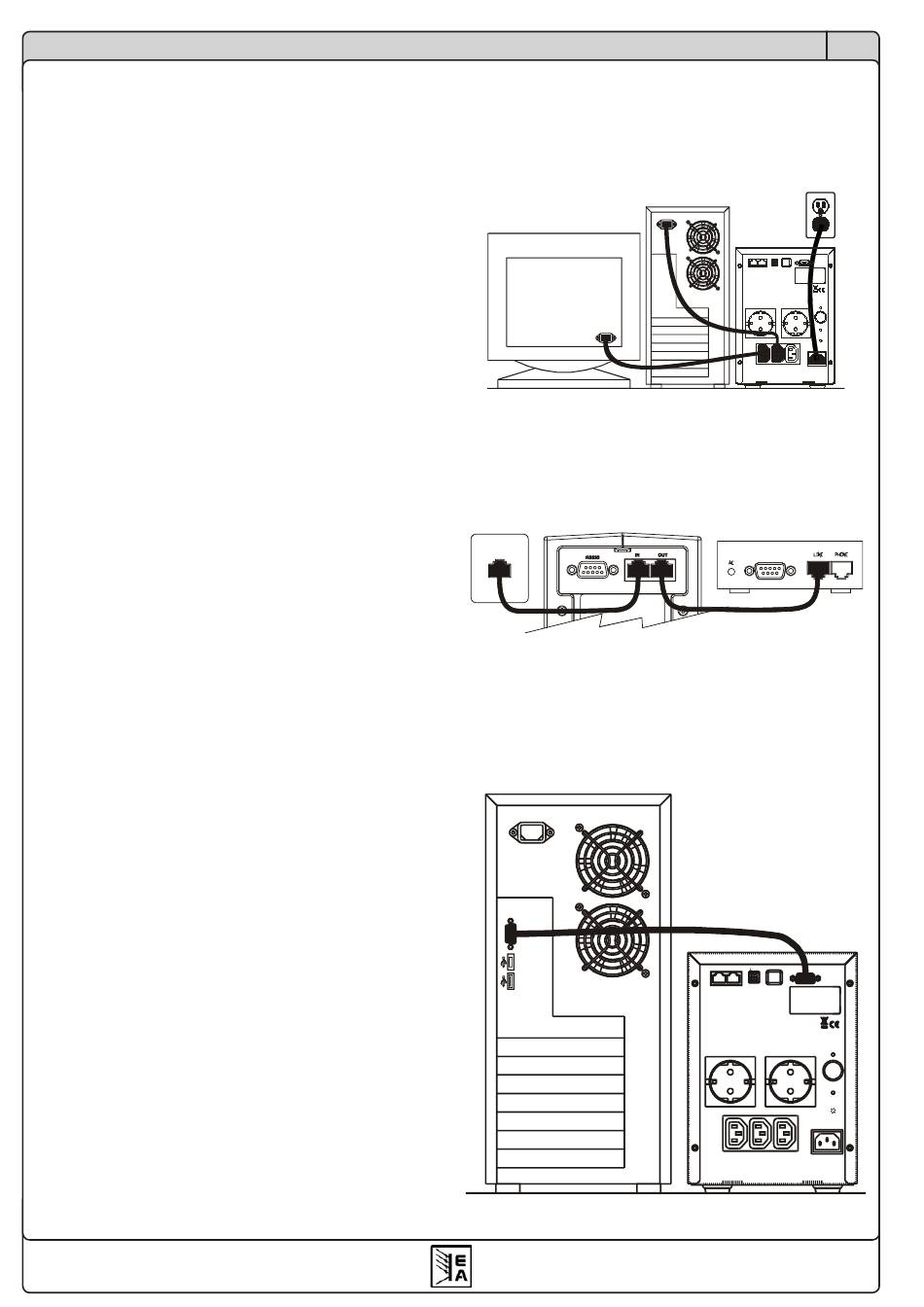

2.3 Load connection
First connect the UPS to a mains supply socket that
is fused according to the requirements. Then connect
the load(s) to the UPS.
The device also features a surge protection for modem/
LAN connections. Connect the communication line to
protect with the two sockets on the rear. The signals
are led through:
In order to supervise the UPS with a PC, connect one
of the included communication cables. In case the
included RS232 cable is too short, it can be extended
by a 1:1 extension cable. But it is recommended to not
exceed 10m total length.
