The M-Bus application program may also contain the initialization string "AT&FU1<CR>",
which will then be transmitted to the modem with every program start or before the telephone
connection is setup. Modern M-Bus programs have been developed for the MS Windows
 
Windows 98 / NT / XP
means of a Windows internal modem driver (Tapi devices). The CD "Tools&Docs" contains
an installation file Mdmrelay.inf for Windows operating systems.
An Example of the Installation of the M-Bus Modem Driver for MS Windows 95 / 98 /NT /XP
• Insert the supplied CD with the INF file in the PC drive
Select system control with Start / Settings
•
• Start the modem configuration by double clicking on the "Modems" symbol
• Click Append / Select modem / Diskette / OK in succession
• Select Relay M-Bus modem 2400 bps (300 bps) (select desired modem with 2400 baud
or 300 baud)
Baud rate, data format (8E1) and initialization string (AT&FU1) are setup after the modem
driver has been installed. The driver for the M-Bus modem can be selected and used in the
application program now.

4. Configuring the M-Bus Modem on the Bus (MOD003)

The modem on the bus requires an M-Bus level converter with serial RS-232C interface. A 9-
pin serial cable male / male and a nullmodem adaptor are in scope of supply. These two
parts give the following pinning:

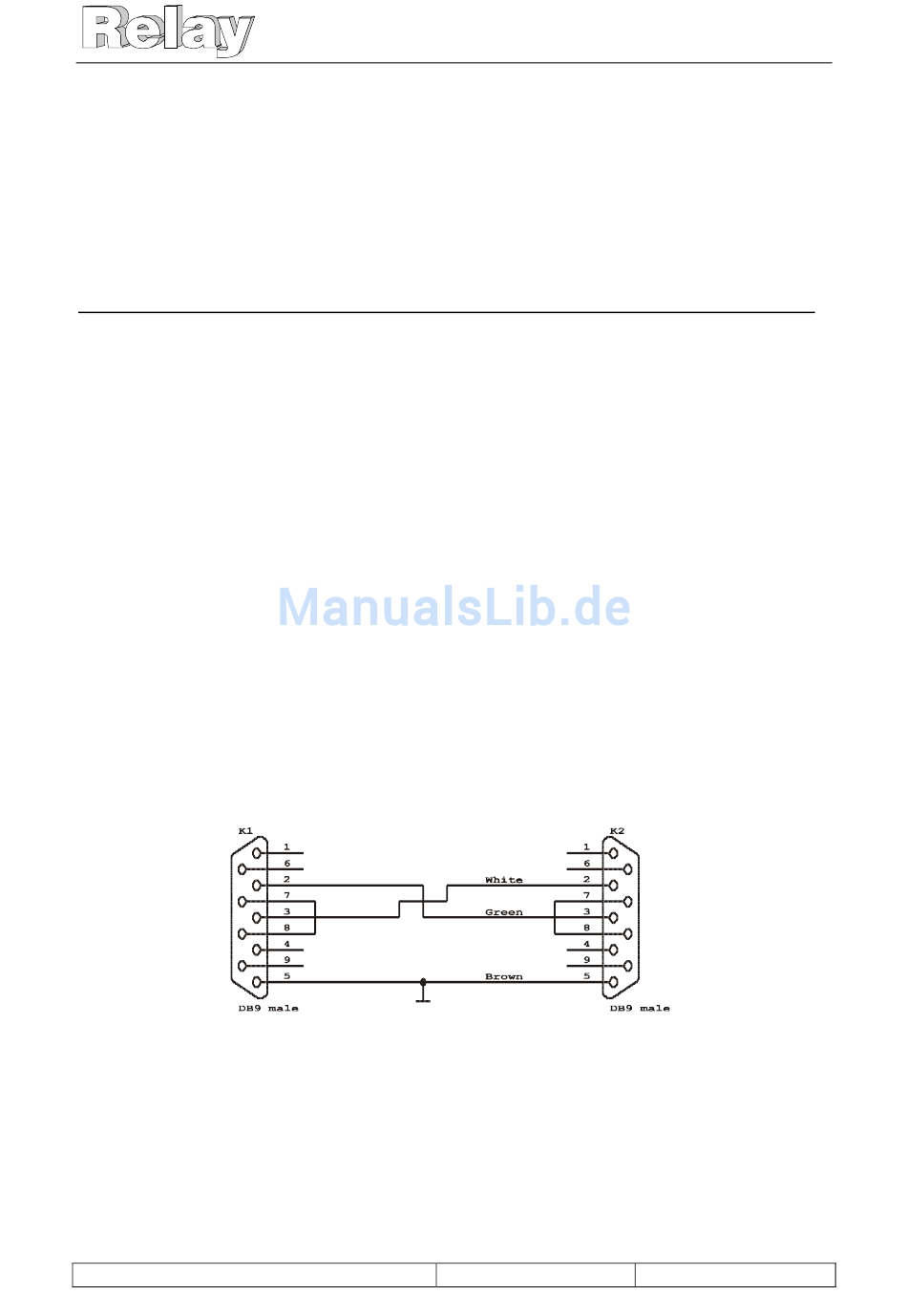

Interface cable (incl. Adaptor) assignment for Bus Modem
M-Bus - MODEM
GmbH, Stettiner Str. 38, D-33106 Paderborn

/ Vista / 7 operating systems. They communicate with a modem by
13.12.11, Version 3.0

Seite / Page 11
