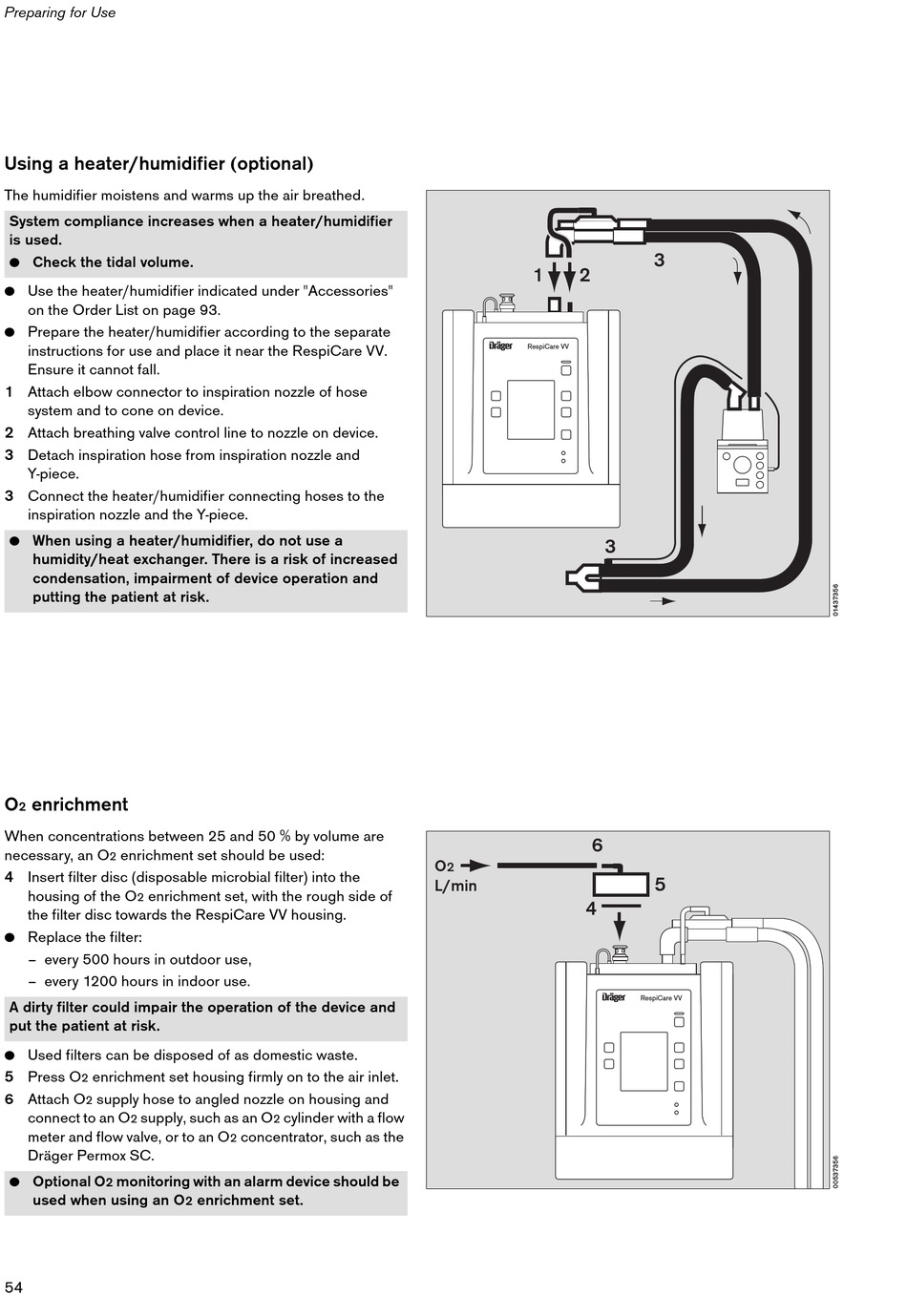

Preparing for Use
Using a heater/humidifier (optional)
The humidifier moistens and warms up the air breathed.
System compliance increases when a heater/humidifier
is used.
Check the tidal volume.
Use the heater/humidifier indicated under "Accessories"
on the Order List on page 93.
Prepare the heater/humidifier according to the separate
instructions for use and place it near the RespiCare VV.
Ensure it cannot fall.
1 Attach elbow connector to inspiration nozzle of hose
system and to cone on device.
2 Attach breathing valve control line to nozzle on device.
3 Detach inspiration hose from inspiration nozzle and
Y-piece.
3 Connect the heater/humidifier connecting hoses to the
inspiration nozzle and the Y-piece.
When using a heater/humidifier, do not use a
humidity/heat exchanger. There is a risk of increased
condensation, impairment of device operation and
putting the patient at risk.
O
enrichment
2
When concentrations between 25 and 50 % by volume are
necessary, an O
enrichment set should be used:
2
4 Insert filter disc (disposable microbial filter) into the
housing of the O
enrichment set, with the rough side of
2
the filter disc towards the RespiCare VV housing.
Replace the filter:
– every 500 hours in outdoor use,
– every 1200 hours in indoor use.
A dirty filter could impair the operation of the device and
put the patient at risk.
Used filters can be disposed of as domestic waste.
5 Press O
enrichment set housing firmly on to the air inlet.
2
6 Attach O
supply hose to angled nozzle on housing and
2
connect to an O
supply, such as an O
2
meter and flow valve, or to an O
Dräger Permox SC.
Optional O
monitoring with an alarm device should be
2
used when using an O
54
cylinder with a flow
2
concentrator, such as the
2
enrichment set.
2
1
2
D
RespiCare VV
3
6
O
2
L/min
4
D
3
5
RespiCare VV
