Instruction manual HK 12/2
__________________________________________________________________________
4. Description of the hydraulic crimping unit

4.1. Description of the components

The hydraulic crimping unit type HK 12/2 consists of the following components:

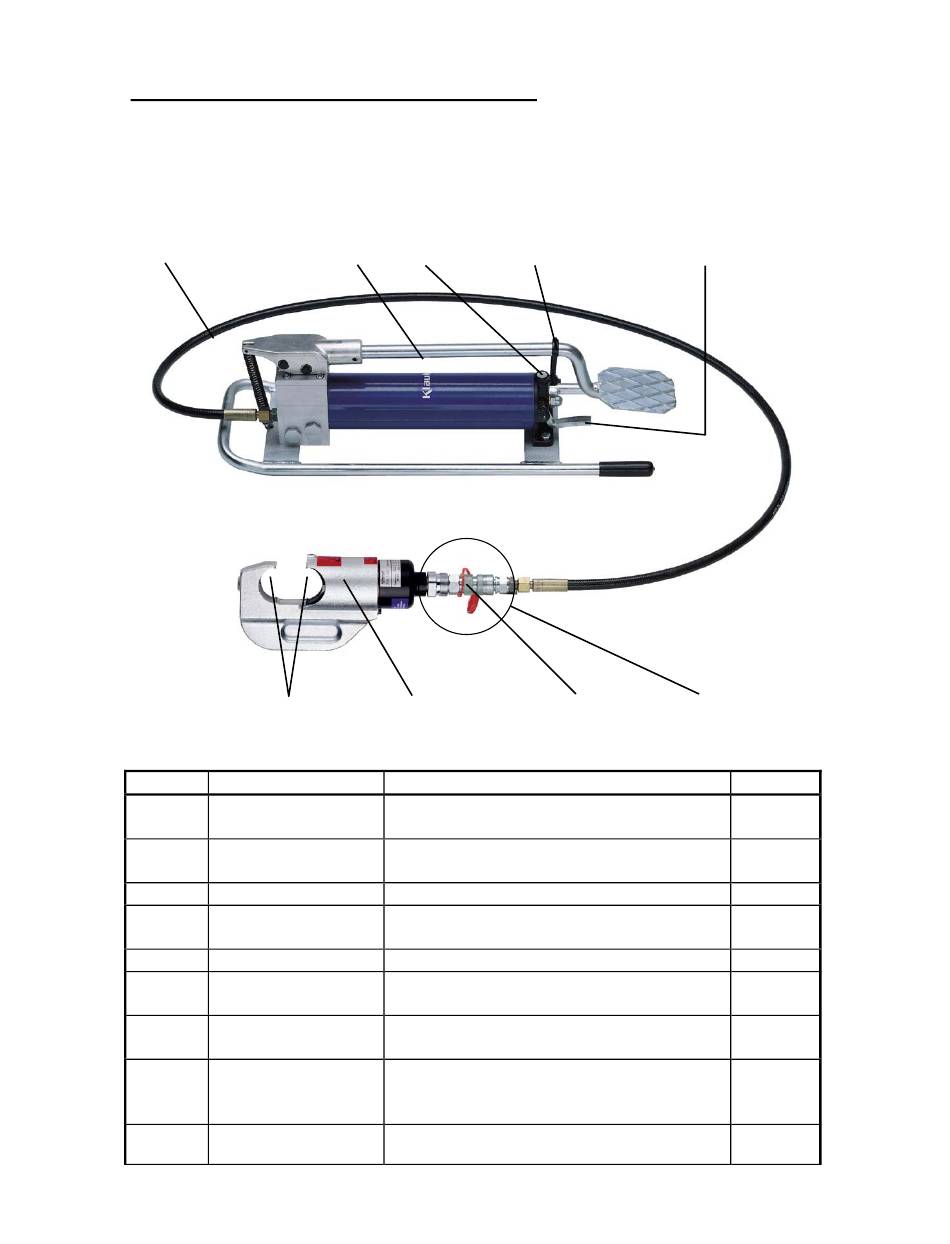

picture 1
High pressure hose Pump lever
Pos.-No. 7 Pos.-No. 1
Dies
Pos.-No. 6
Table 1
Pos.-No. Description
1 Pump lever
2 Hook
3 Release button
4 Oil plug
5 Crimping head
6 Dies
7 High pressure hose
8 Coupling
9 Lock
All manuals and user guides at all-guides.com
Oil plug
Pos.-No. 4
Crimping head
Pos.-No. 5
Function
To actuate the pump
To fix the pump lever for easy and safe
transportation
To release the pressure of the pump
Screw for the oil reservoir to service the
pump
Body of the working unit
Interchangeable crimping dies for wide
crimps
Steel armed hydraulic high pressure hose
detachable connection consisting of a male
and a female plug/sleeve to connect the
crimping head with the pump.
Threaded sleeve to lock the retractable sleeve of
the female coupling.
Hook Release button
Pos.-No. 2 Pos.-No. 3
Lock Coupling
Pos.-No. 9 Pos.-No. 8
page 13
Reference
pp. 14, 15,
19
pp. 14, 15,
19
p. 14
p. 18
p. 15
pp. 15, 19
pp. 15, 18,
19
pp. 13, 14
pp. 13, 14
