Correct Installation - Chamberlain RPD10 Bedienungsanleitung

Push the motor (1) completely into the tube. The limit switch
operates only if the drive unit is fully inserted. Ensure that the
adapter ring is pushed fully home.
Do not force it or strike it.
Do not damage the tubular motor by drilling!
Secure the mounting bracket (9) to the wall
(use suitable screws and plugs).
Fig. 6

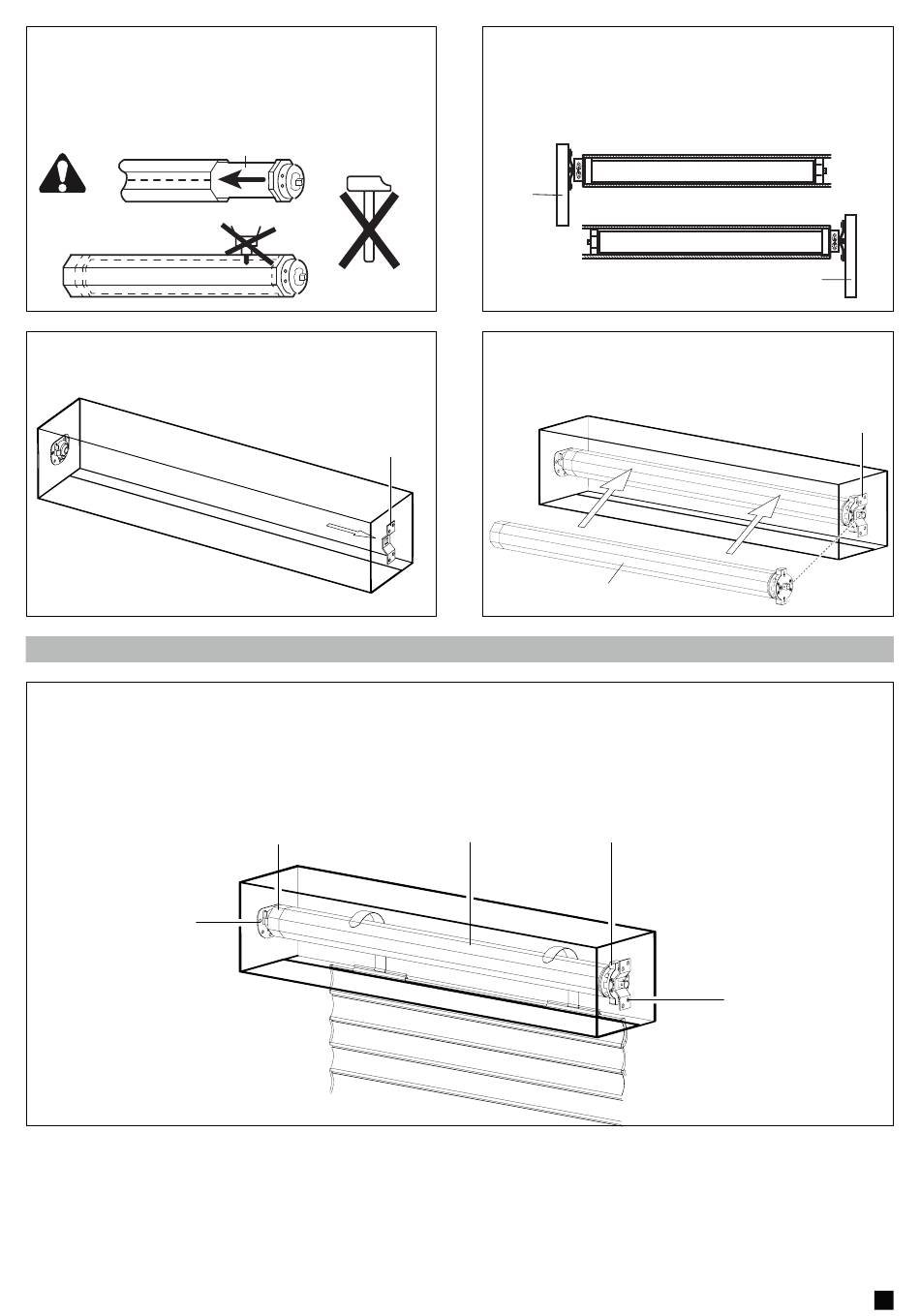

CORRECT INSTALLATION

The illustration shows the motor (a), the wall bracket on the drive side (b), the steel tube (c), the end cap (d) and the
opposite tube bracket (e).
e
Fig. 8
1
Fig. 4
9
d
Proceed according to the specific requirements for
left-sided (a) or right-sided (b) operation.
a
Fig. 5
Insert the motor (a) into the mounting bracket (9) and secure it.
a
Fig. 7
c a
14
b
9
b
