Celestron kids Kurzanleitung Zur Einrichtung

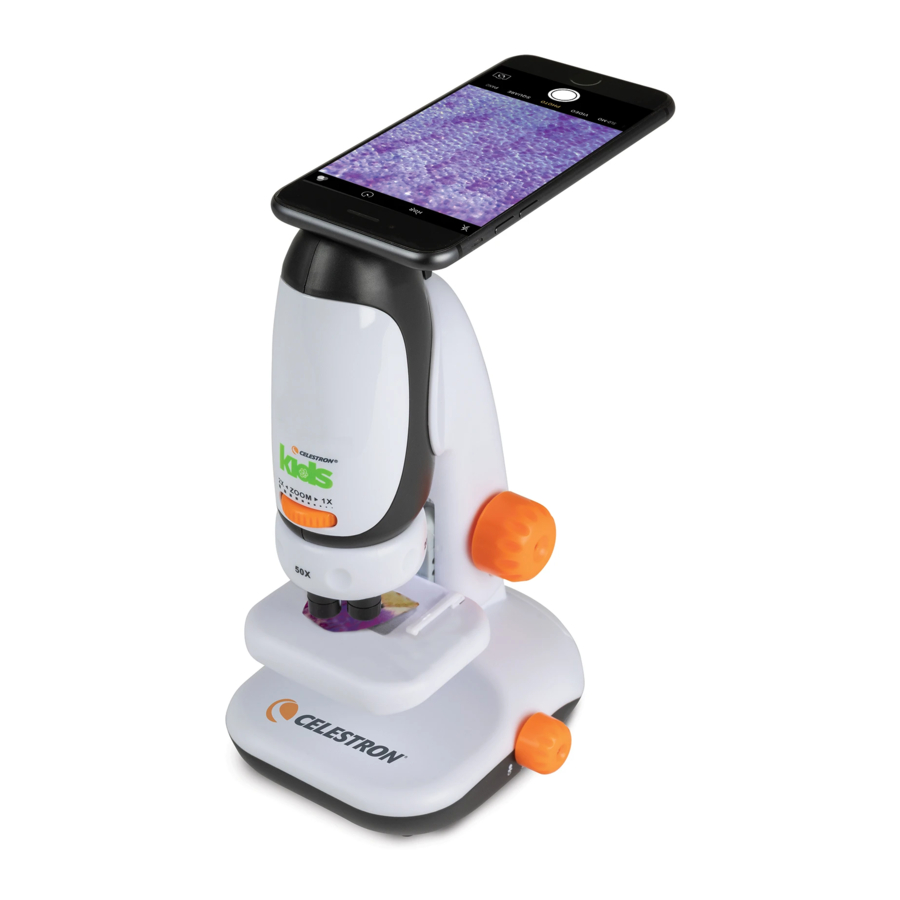

Microscope
with Smartphone Adapter
1
2
3
4
5
6
7
8
15 16
17

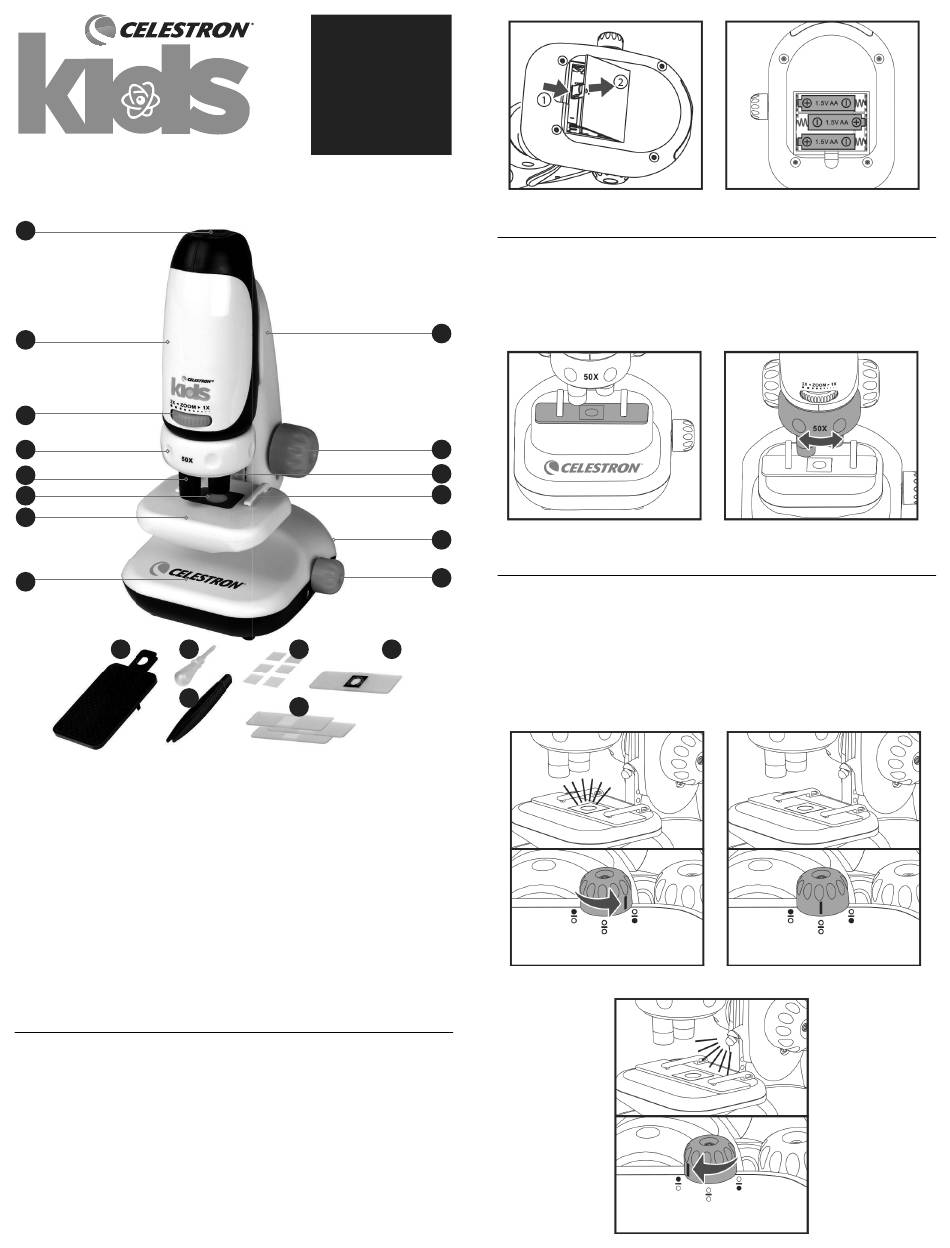

1. Eyepiece / Adapter Slot
2. Handheld Microscope
3. Zoom Dial
4. Turret
5. Objective Lens
6. Transmissive LED Cover
7. Specimen Stage
8. Microscope Base
9. Microscope Arm
10. Focusing Dial
Installing the Battery
1. Open the Battery Compartment Door at the bottom of the
Microscope Base (8) by lifting it up while pressing the
Compartment Door Latch in the direction shown in the following
diagram.
2. Install 3 fresh AA batteries with their positive (+) and negative (-)
poles correctly positioned.
3. Replace the Battery Compartment Door. The microscope is now
ready for use. Be sure to remove the batteries before storing the
Microscope for any length of time.
QUICK
SET-UP
G U I D E
ENGLISH
#44119
18 20
19
11. Refl ective LED Light
12. Specimen Slide Clips
13. Mini Storage Drawer
14. LED On/Off Switch
15. Smartphone Adapter
16. Dropper
17. Tweezers
18. 6 Blank specimen slide covers
19. 3 Blank specimen slides
20. Prepared slide with cotton
swatch
Using the Microscope
1. Place the Specimen Slide on the Specimen Stage (7) and secure
with the Specimen Slide Clips (12).
2. Turn the Turret (4) to the desired magnifi cation. (We recommend
starting with 50x and increasing the magnifi cation as needed.)
9
10
11
12
13
Illumination
14
1. Turn the LED ON/OFF Switch (14) to the right to turn on the
Transmissive LED to illuminate transparent specimens.
2. Turn the LED ON/OFF Switch to the middle to turn off all LEDs
3. Turn the LED ON/OFF Switch to the left to turn on the Refl ective
LED (11) to illuminate non-transparent specimens.
ILLUMINATION FROM BELOW LED OFF
ILLUMINATION FROM ABOVE
