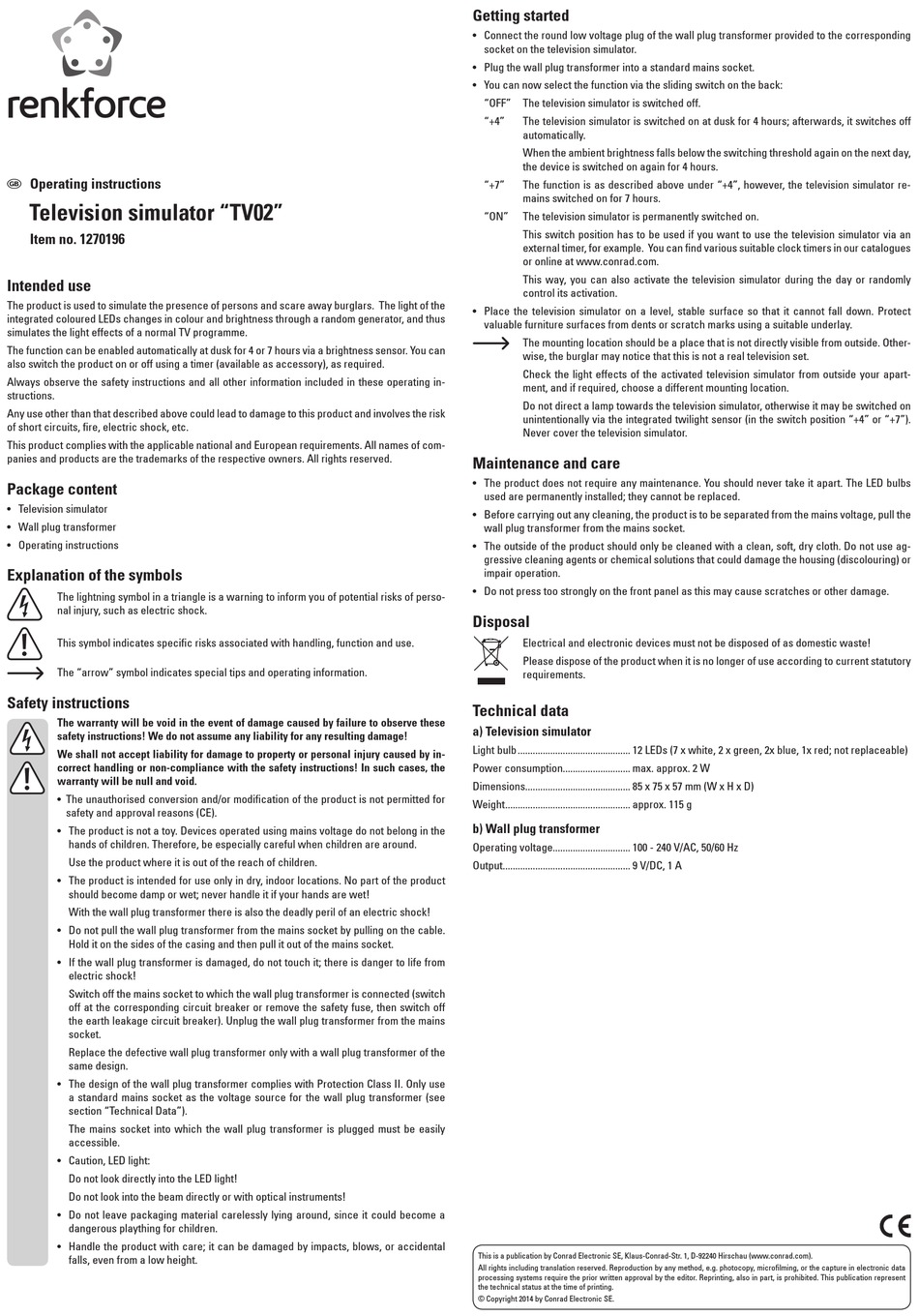

G Operating instructions
Television simulator "TV02"
Item no. 1270196
Intended use
The product is used to simulate the presence of persons and scare away burglars. The light of the
integrated coloured LEDs changes in colour and brightness through a random generator, and thus
simulates the light effects of a normal TV programme.
The function can be enabled automatically at dusk for 4 or 7 hours via a brightness sensor. You can
also switch the product on or off using a timer (available as accessory), as required.
Always observe the safety instructions and all other information included in these operating in-
structions.
Any use other than that described above could lead to damage to this product and involves the risk
of short circuits, fire, electric shock, etc.
This product complies with the applicable national and European requirements. All names of com-
panies and products are the trademarks of the respective owners. All rights reserved.
Package content
• Television simulator
• Wall plug transformer
• Operating instructions
Explanation of the symbols
The lightning symbol in a triangle is a warning to inform you of potential risks of perso-
nal injury, such as electric shock.
This symbol indicates specific risks associated with handling, function and use.
The "arrow" symbol indicates special tips and operating information.
Safety instructions
T he warranty will be void in the event of damage caused by failure to observe these
safety instructions! We do not assume any liability for any resulting damage!
W e shall not accept liability for damage to property or personal injury caused by in-
correct handling or non-compliance with the safety instructions! In such cases, the
warranty will be null and void.
• The unauthorised conversion and/or modification of the product is not permitted for
safety and approval reasons (CE).
• The product is not a toy. Devices operated using mains voltage do not belong in the
hands of children. Therefore, be especially careful when children are around.
Use the product where it is out of the reach of children.
• The product is intended for use only in dry, indoor locations. No part of the product
should become damp or wet; never handle it if your hands are wet!
With the wall plug transformer there is also the deadly peril of an electric shock!
• Do not pull the wall plug transformer from the mains socket by pulling on the cable.
Hold it on the sides of the casing and then pull it out of the mains socket.
• If the wall plug transformer is damaged, do not touch it; there is danger to life from
electric shock!
Switch off the mains socket to which the wall plug transformer is connected (switch
off at the corresponding circuit breaker or remove the safety fuse, then switch off
the earth leakage circuit breaker). Unplug the wall plug transformer from the mains
socket.
Replace the defective wall plug transformer only with a wall plug transformer of the
same design.
• The design of the wall plug transformer complies with Protection Class II. Only use
a standard mains socket as the voltage source for the wall plug transformer (see
section "Technical Data").
The mains socket into which the wall plug transformer is plugged must be easily
accessible.
• Caution, LED light:
Do not look directly into the LED light!
Do not look into the beam directly or with optical instruments!
• Do not leave packaging material carelessly lying around, since it could become a
dangerous plaything for children.
• Handle the product with care; it can be damaged by impacts, blows, or accidental
falls, even from a low height.
Getting started
• Connect the round low voltage plug of the wall plug transformer provided to the corresponding
socket on the television simulator.
• Plug the wall plug transformer into a standard mains socket.
• You can now select the function via the sliding switch on the back:
"OFF"
The television simulator is switched off.
"+4"
The television simulator is switched on at dusk for 4 hours; afterwards, it switches off
automatically.
When the ambient brightness falls below the switching threshold again on the next day,
the device is switched on again for 4 hours.
"+7"
The function is as described above under "+4", however, the television simulator re-
mains switched on for 7 hours.
"ON"
The television simulator is permanently switched on.
This switch position has to be used if you want to use the television simulator via an
external timer, for example. You can find various suitable clock timers in our catalogues
or online at www.conrad.com.
This way, you can also activate the television simulator during the day or randomly
control its activation.
• Place the television simulator on a level, stable surface so that it cannot fall down. Protect
valuable furniture surfaces from dents or scratch marks using a suitable underlay.
The mounting location should be a place that is not directly visible from outside. Other-
wise, the burglar may notice that this is not a real television set.
Check the light effects of the activated television simulator from outside your apart-
ment, and if required, choose a different mounting location.
Do not direct a lamp towards the television simulator, otherwise it may be switched on
unintentionally via the integrated twilight sensor (in the switch position "+4" or "+7").
Never cover the television simulator.
Maintenance and care
• The product does not require any maintenance. You should never take it apart. The LED bulbs
used are permanently installed; they cannot be replaced.
• Before carrying out any cleaning, the product is to be separated from the mains voltage, pull the
wall plug transformer from the mains socket.
• The outside of the product should only be cleaned with a clean, soft, dry cloth. Do not use ag-
gressive cleaning agents or chemical solutions that could damage the housing (discolouring) or
impair operation.
• Do not press too strongly on the front panel as this may cause scratches or other damage.
Disposal
Electrical and electronic devices must not be disposed of as domestic waste!
Please dispose of the product when it is no longer of use according to current statutory
requirements.
Technical data
a) Television simulator
Light bulb ............................................. 12 LEDs (7 x white, 2 x green, 2x blue, 1x red; not replaceable)
Power consumption........................... max. approx. 2 W
Dimensions.......................................... 85 x 75 x 57 mm (W x H x D)
Weight .................................................. approx. 115 g
b) Wall plug transformer
Operating voltage............................... 100 - 240 V/AC, 50/60 Hz
Output................................................... 9 V/DC, 1 A
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent
the technical status at the time of printing.
© Copyright 2014 by Conrad Electronic SE.
