PowerMax
I
Operating instructions -- PowerMax cam unit PMU
PowerMax Schiebereinheit SN5650-PMU-0065 — SN5650-PMU-0260

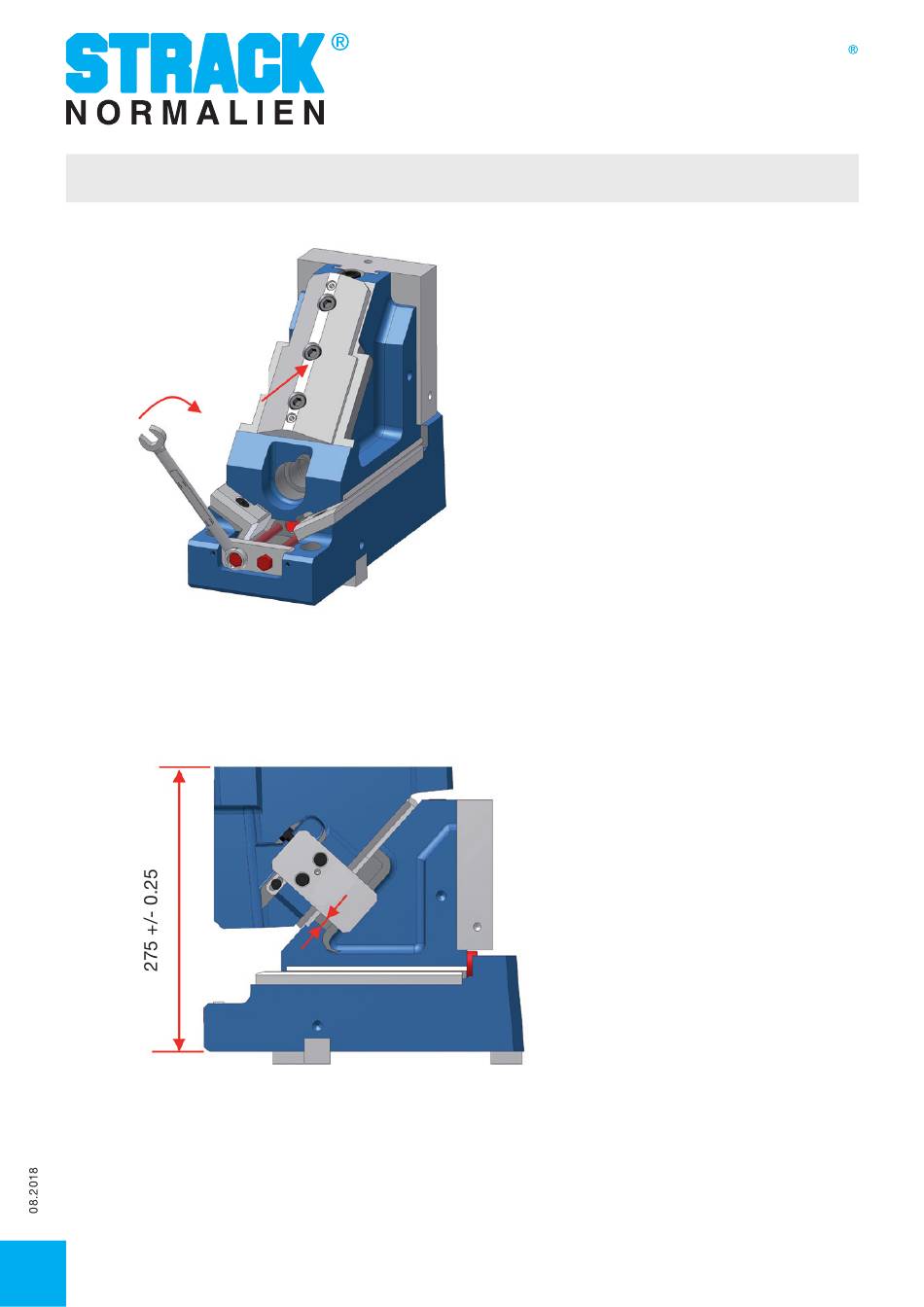

picture 3
3. Now push the cam slide in the front
position (step 1). Turn the screws
SN5651-LOS-SPS-M8 x 90 in the
slide top (step 2). Tighten the screws
2
1
cautiously to fasten the cam slide
(step 2).
picture 4
4. The slide has an installation height
of 275 +/- 0.25 mm. Put a final
dimension (10 mm) between the slide
stop and the active return cramp,
to get the exact installation height.
18
STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de
