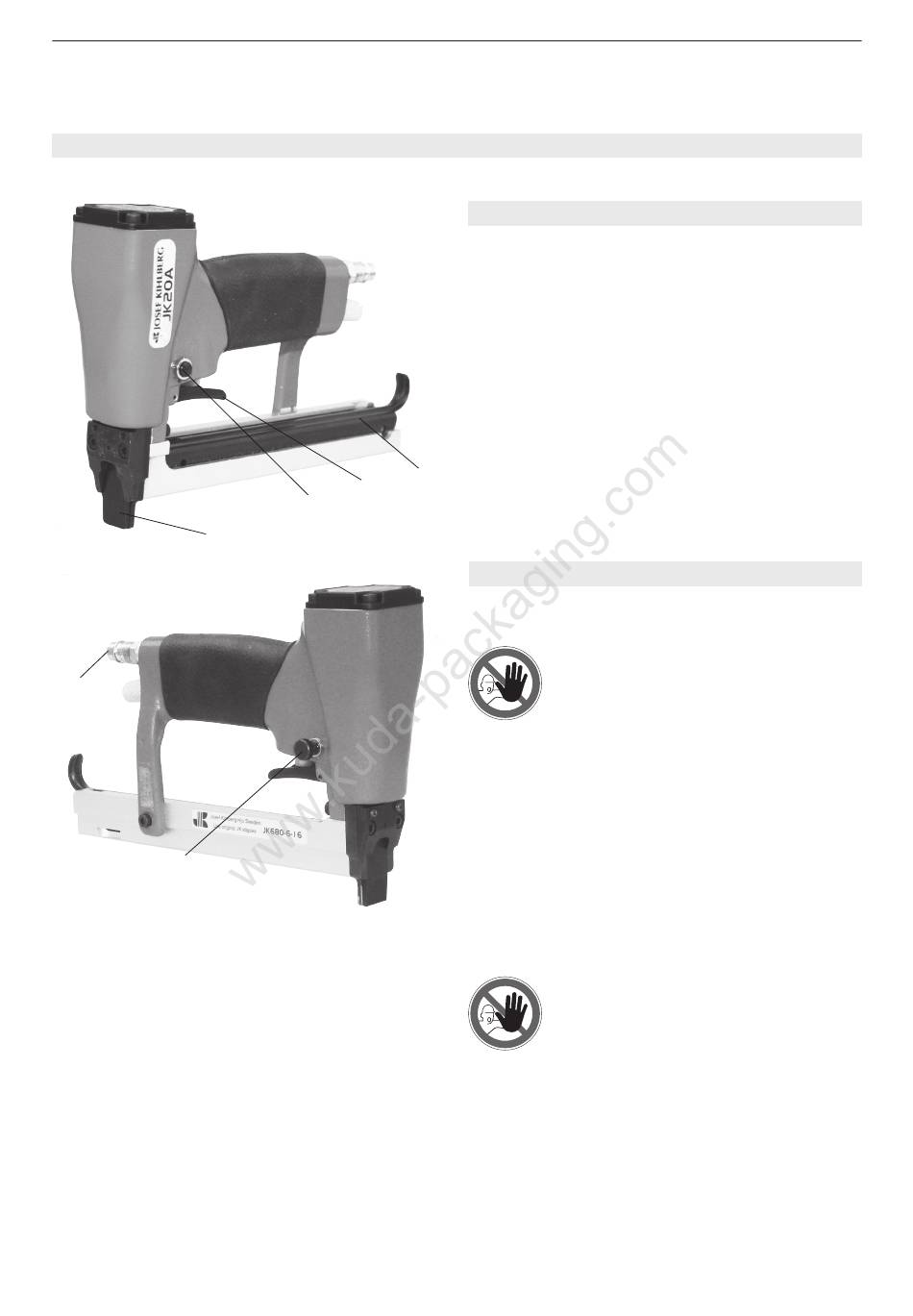

DESCRIPTION

1 Door
2 Single fire button
3 Trigger
4 Magazine lid
5 Compressed air connection
6 Speed adjustment
4
3
2
Stapler JK20A has both single shot and continuous
firing without safety yoke.
1. Single shot firing:

2. Continuous firing:

3. Speed of continuous firing:
+420 607 237 237
info@kuda-packaging.com

4.1 DESIGN

4.2 FUNCTION

Never fire staples into the air!
Press the single fire button (Fig. 1/2) on the left
side above the trigger and a single shot will be
fired when the trigger is activated.
Release the single fire button (1/2) on the left
hand side and continuous firing will occur for as
long as the trigger (1/3) is activated.
The firing speed is regulated by the speed adjust-
ment knob (1/6) on the right side. Turning counter
clockwise will increase the speed (max. 28 shots/
sec) 7 bars; turning clockwise reduces the speed.
Warning: before stapling ensure that
your hand or any other part of your
body is not underneath the nozzle.
servis@josef-kihlberg.eu
Josef Kihlberg JK20A680
