Dimension - Homa CONDISTAR H76 K Originalbetriebsanleitung

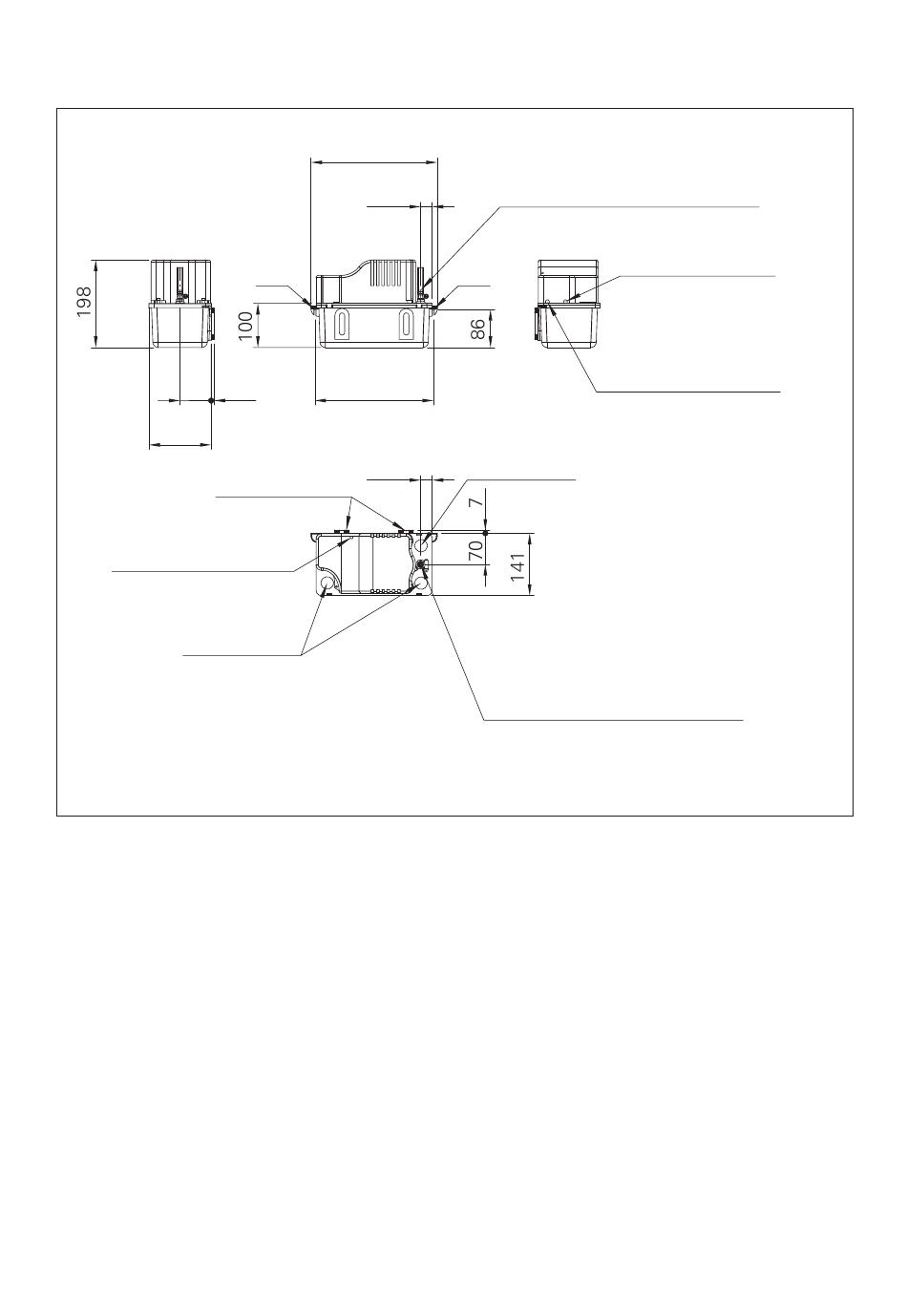

8. Dimension

70
141
Test switch
for fuction control
Inlet
(covered with caps)
40 | EngliSH
285
26
ø 5
7 267
26
affixed rubber pads
ø 28
Pressure side connection 3/8" with
integrated non-return valve for PVC-hose I ø 9
Cable with plug
ø 5
Float switch with
volt free alarm contact
Inlet
ø 28
Pressure side connection 3/8" with
integrated non-return valve for PVC-hose I ø 9
