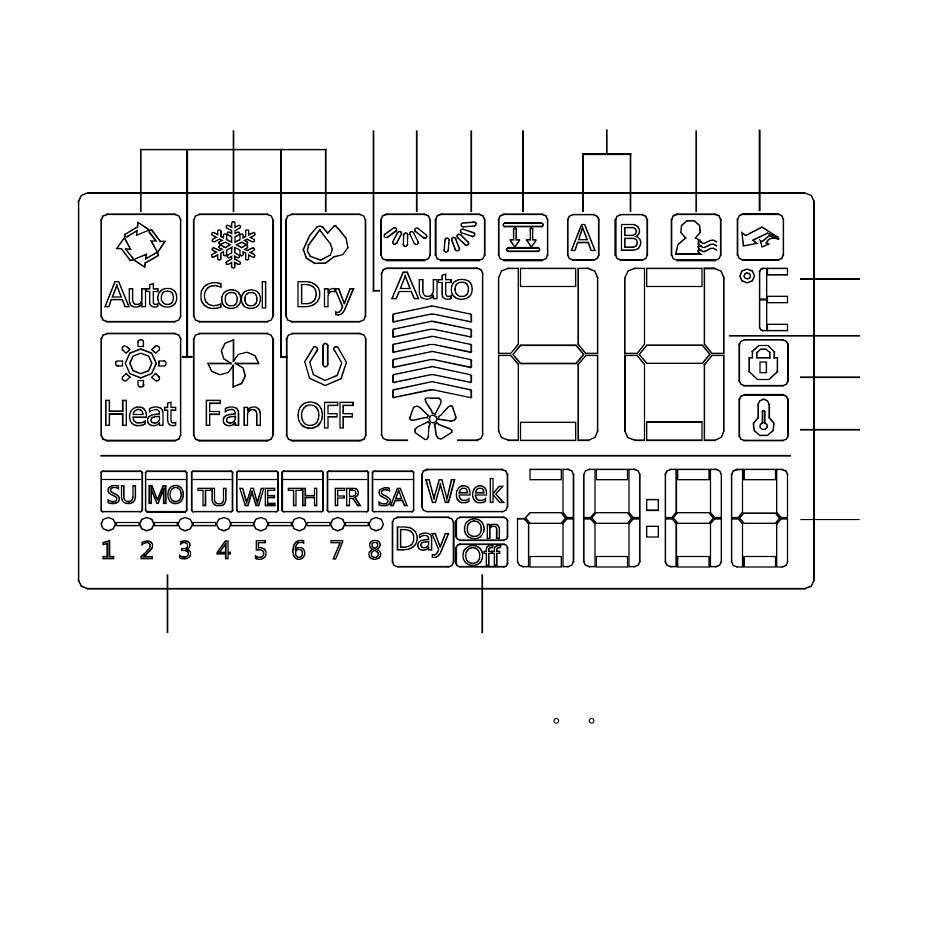

5. Name on the LCD of the wire controler
15
1 Operation mode indication
2 Fan speed indication
3 Left-right swing indication
4 Up-down swing indication
5 Faceplate function indication
6 Main unit and secondary unit indication
7 Follow me function indication
1 2 3 4 5
14
8 PTC function indication
9 C / F indication
10 Temperature display
11 Lock indication
12 Room temperature indication
13 Clock display
14 On/Off timer
15 Timer display
44
6 7 8
9
10
11
12
13
