Behringer COMPRESSOR/SUSTAINER CS400 Bedienungsanleitung

COMPRESSOR/SUSTAINER CS400
Ultimate Dynamics Effects Pedal
(2)
(1)
(5)
(8)
Thank you for showing your confidence in us by purchasing the
Behringer COMPRESSOR SUSTAINER CS400. This ultimate effects pedal is
specifically designed to achieve super-smooth compression and endless
sustain. Thanks to its high-performance features you can compress loud
and boost low signals without degrading the original sound.
A compressor limits the dynamic range of a signal. This means that
signal peaks will be attenuated and the level differences between
loudest and softest playing are reduced. This results in a more powerful
and pressure-rich tone.

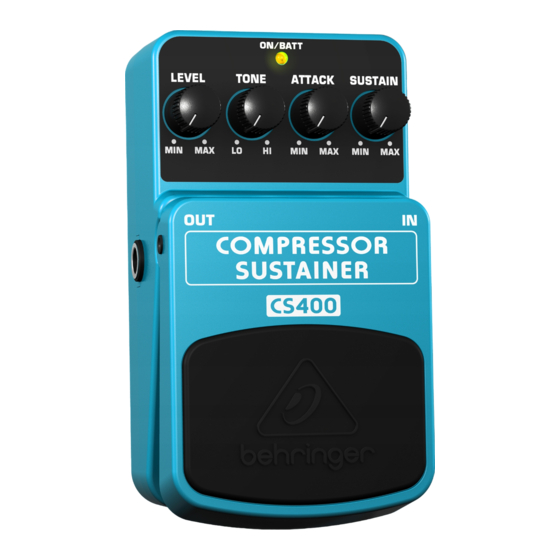

1. Controls
The LEVEL control adjusts the output level.
(1)
Turn up the TONE control to achieve more presence and
(2)
sound clarity.
The ATTACK control determines how fast the compressor reacts
(3)
on the input signal. The attack time is sweepable between slow
and fast.
The SUSTAIN control determines the amount of compression that
(4)
results in long-lasting tones.
The ON/BATT LED illuminates when the effect is activated. It also
(5)
serves as a battery level indicator.
Use the footswitch to activate/deactivate the effect.
(6)
Use this 1/4" TS IN connector to plug in the instrument cable.
(7)
The 1/4" TS OUT connector sends the signal to your amp.
(8)
Use the DC IN connection at the front of the unit to plug in a 9V power
supply (not included).
V1.0
A50-00002-85309
(3)
(4)
(7)
(6)
