Schaltplan - Simon Firescreen Control Efs Installationsanleitung

®
Firescreen Control EFS Version V9.20 & V9.21

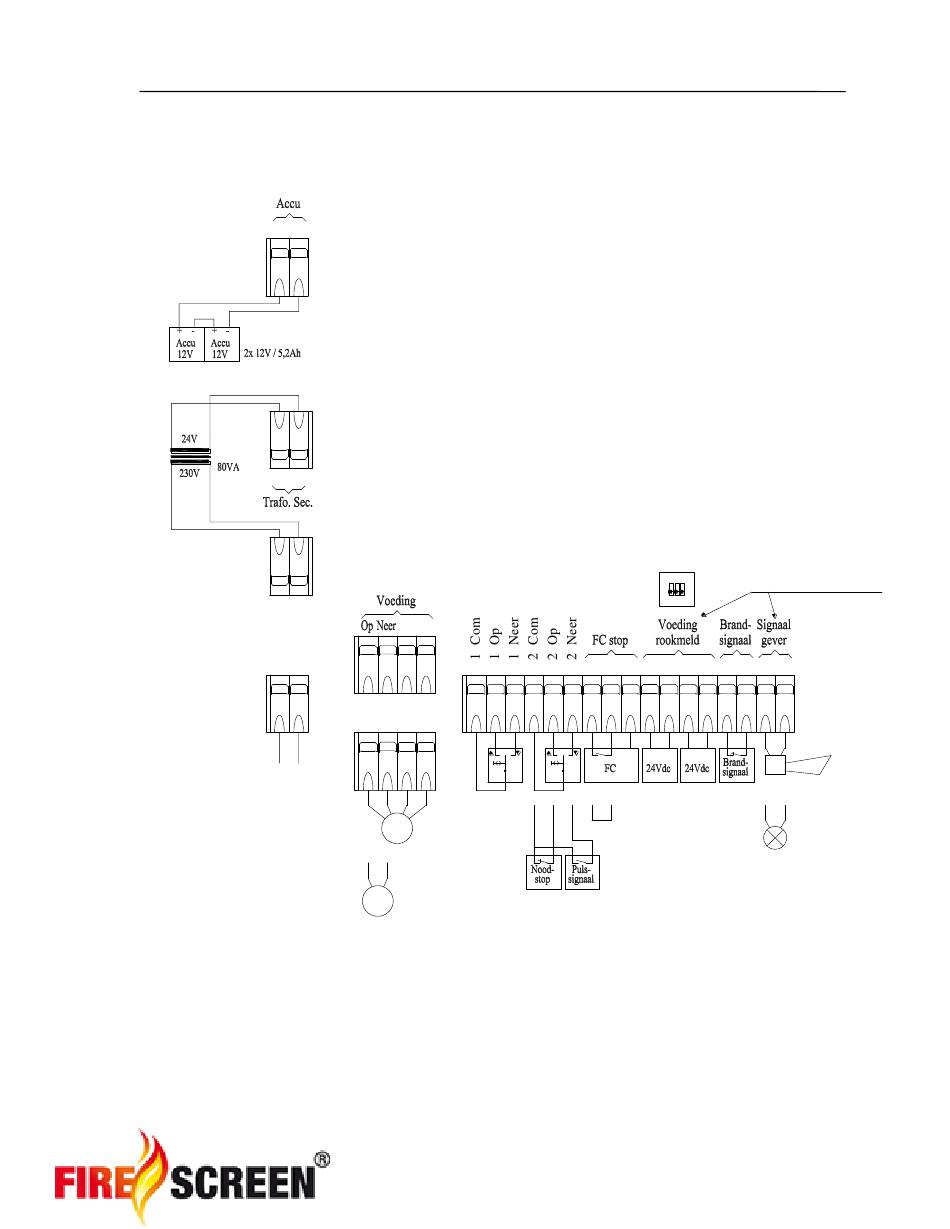

7. Schaltplan

+ -
24Vac
L1 N
Trafo. Prim.
Voeding
L1 N
Voeding 230Vac
- +
1/2 2/1 3 4
M
1/2 2/1
M
13
max. 300mA totaal
On
123
+ In - + - + - + In +
+ - + -
Dip-switch 2 On
Juli 2015
-
