VALLONE COMO 03 Montageanleitung Seite 7

1
2
3
4
3
fig. 2
4
1
fig. 1
COMO 03
D MONTAGEANLEITUNG
EN INSTALLATION INSTRUCTIONS
EN
M O U NT I NG INS T RUC T I ONS

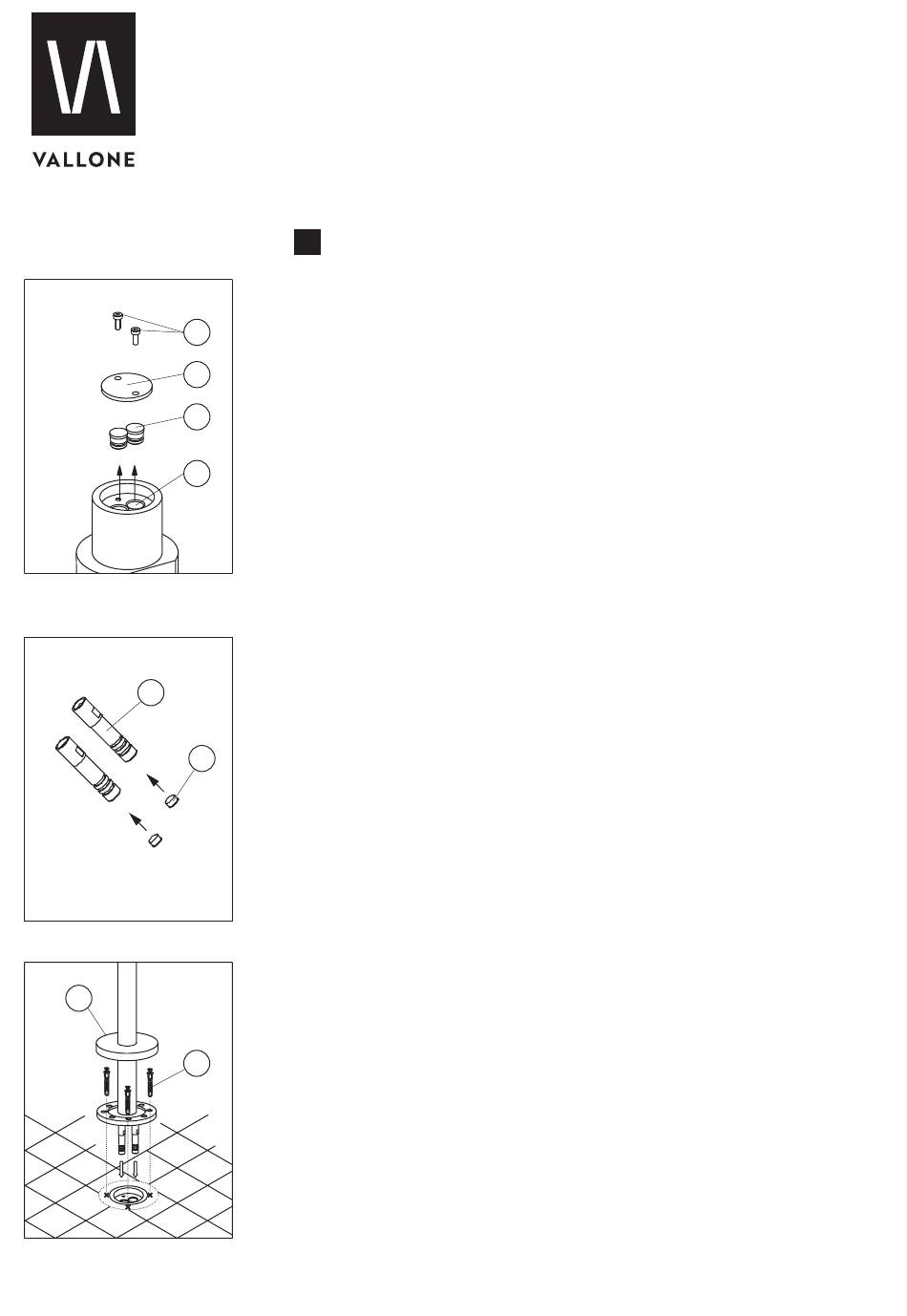

In order to connect the mixer to the flush-mounted box COMO U6, first take off the
cover. Continue as follows:
• Loosen both screws (1) and take off the cover plate (2). Also remove both caps (3)
from the inlets (4).
TO I NS TAL L T H E MI XER, CONT I NUE A S FOL LOWS:
• Place the flush-mounted box on its intended location over the flush-mounted box.
• Connect the warm and cold water inlets of the mixer to the appropriate
connections of the flush-mounted box.
• If the operating pressure is higher than recommended in the installation manual,
2
attach the pressure reducer (2) included in the scope of delivery to the bottom of
the flexible pipes (3). (Fig. 2)
• Now align the mixer as desired. Once aligned, use a pencil to mark four points on
the floor through the holes in the bottom plate.
• Drill an 8 x 40 mm hole into the ground at the marked points. Place one dowel (1)
in each of the four holes.
• Fasten the mixer with the supplied screws through the holes of the base plate.
• Now place the collar (4) on the base plate.
• Open the water supply to the mixer.
7
