DEEP VACUUM PUMP OPERATING INSTRUCTIONS
DO NOT ATTEMPT TO OPERATE WITHOUT USING OIL!!!
IMPORTANT!: Use oil specifically refined for Deep Vacuum Pumps. Use of oil not refined for
Deep Vacuum Pumps and/or operating with contaminated oil will void warranty.
In order to make the best use of your investment, familiarize yourself with the new features and
operating instructions before starting pump. Routine care and maintenance of your vacuum pump
will give you years of reliable service.
Each vacuum pump has been factory tested for CFM and micron performance. The serial number
has been recorded. Complete and mail the warranty form immediately to validate your warranty.
Retain shipping box and packing material for use if factory warranty service is required.
OPERATING INSTRUCTIONS
1. OIL FILL
This vacuum pump has been tested at the factory and shipped with only trace amounts of oil. OIL MUST BE
ADDED BEFORE OPERATING! Failure to add oil will damage cartridge and void warranty!

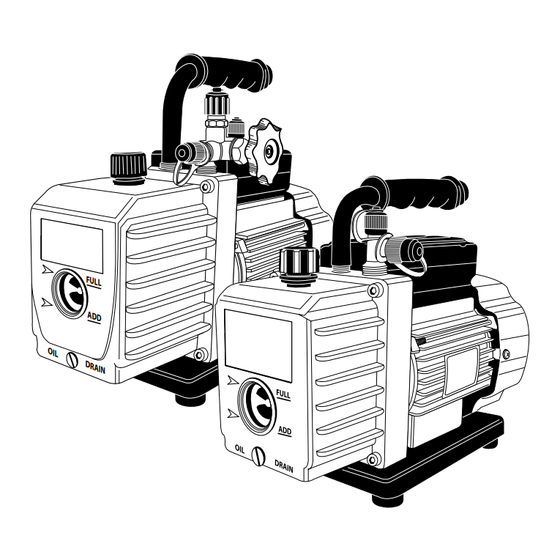

a. Make sure the oil drain plug located at the bottom of the front casing is closed before
attempting to add oil.
b. Remove the large oil fill plug from the top of pump and insert the oil bottle into the fill port.
c. Slowly add oil until oil level rises to the Oil "FULL" Line. Do not overfill with oil!
d. Replace the oil fill plug.
CAPACITY:
1.5 CFM = 5 oz. / 147 ML
F U L L
A D D
O I L
D R A
I N
3 CFM = 8.8 oz. / 260 ML
WARNING!
www.mastercool.com
6 CFM = 7.8 oz. / 230 ML
WEAR SAFETY GLASSES
