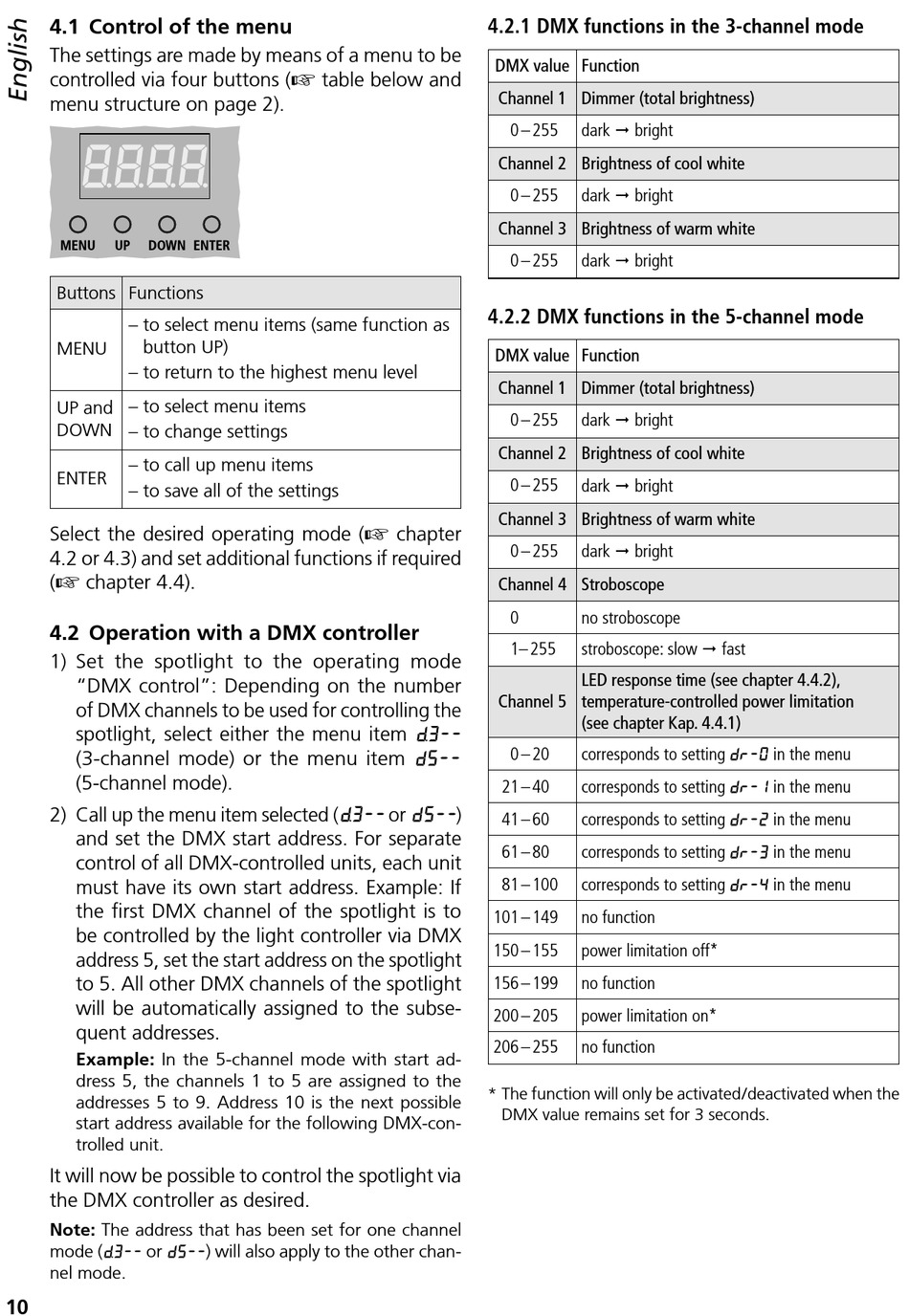

4.1 Control of the menu
The settings are made by means of a menu to be
controlled via four buttons (
menu structure on page 2) .
MENU UP DOWN
Buttons Functions
– to select menu items (same function as
button UP)
MENU
– to return to the highest menu level
– to select menu items
UP and
DOWN
– to change settings
– to call up menu items
ENTER
– to save all of the settings
Select the desired operating mode (
4 .2 or 4 .3) and set additional functions if required
☞
( chapter 4 .4) .
4.2 Operation with a DMX controller
1) Set the spotlight to the operating mode
"DMX control": Depending on the number
of DMX channels to be used for controlling the
spotlight, select either the menu item
(3-channel mode) or the menu item
(5-channel mode) .
2) Call up the menu item selected (
and set the DMX start address . For separate
control of all DMX-controlled units, each unit
must have its own start address . Example: If
the first DMX channel of the spotlight is to
be controlled by the light controller via DMX
address 5, set the start address on the spotlight
to 5 . All other DMX channels of the spotlight
will be automatically assigned to the subse-
quent addresses .
Example: In the 5-channel mode with start ad-
dress 5, the channels 1 to 5 are assigned to the
addresses 5 to 9 . Address 10 is the next possible
start address available for the following DMX-con-
trolled unit .
It will now be possible to control the spotlight via
the DMX controller as desired .
Note: The address that has been set for one channel
mode ( or
nel mode .
10
☞
table below and
ENTER
☞
) will also apply to the other chan-
4.2.1 DMX functions in the 3-channel mode
DMX value Function
Channel 1 Dimmer (total brightness)
0 – 255
Channel 2 Brightness of cool white
0 – 255
Channel 3 Brightness of warm white
0 – 255
4.2.2 DMX functions in the 5-channel mode
DMX value Function
Channel 1 Dimmer (total brightness)
0 – 255
Channel 2 Brightness of cool white
0 – 255
Channel 3 Brightness of warm white
chapter
0 – 255
Channel 4 Stroboscope
0
1– 255
Channel 5
0 – 20
21 – 40
or )
41 – 60
61 – 80
81 – 100
101 – 149
150 – 155
156 – 199
200 – 205
206 – 255
* The function will only be activated / deactivated when the
DMX value remains set for 3 seconds .
dark  bright
dark  bright
dark  bright
dark  bright
dark  bright
dark  bright
no stroboscope
stroboscope: slow  fast
LED response time (see chapter 4.4.2),
temperature-controlled power limitation
(see chapter Kap. 4.4.1)
corresponds to setting
corresponds to setting
corresponds to setting
corresponds to setting
corresponds to setting
no function
power limitation off*
no function
power limitation on*
no function
in the menu
in the menu
in the menu
in the menu
in the menu
