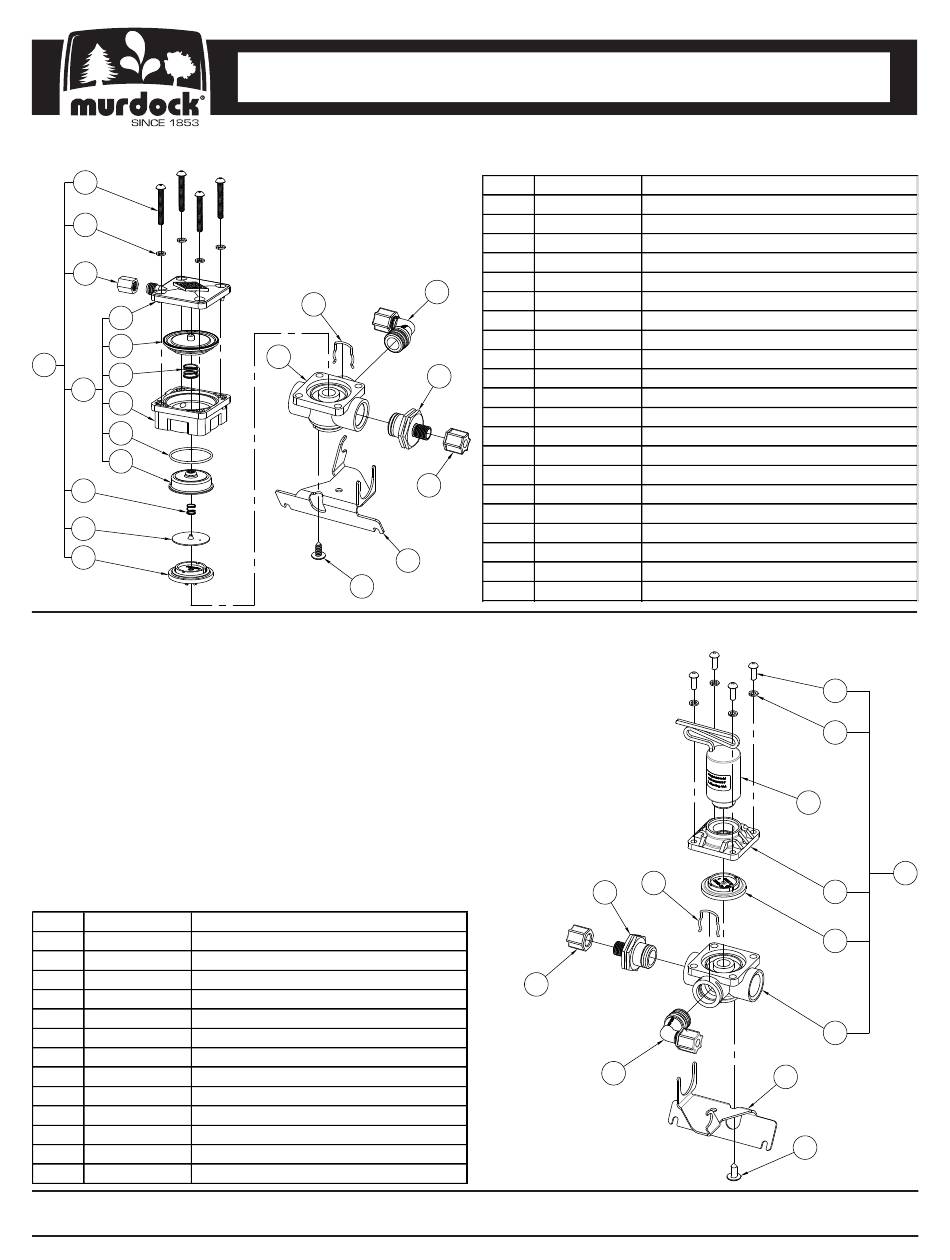

BF11 VENTILABSCHALTUNG
2
3
4
9
10
1
11
5
12
13
14
6
7
8
BF12 VENTILBRUCH
ITEM # TEILENUMMER BESCHREIBUNG
1
2570-140-001 9-12 VDC SOLENOID OP VALVE ASSY
2
6502-043-000 #8-32 UNC x 1/2" PHILLIPS SCREW
3
0331-003-000 #8 LOCKWASHERS
4
2570-061-000 SOLENOID BONNET
5
2563-010-001 WATER DIAPHRAGM ASSEMBLY
6
2570-027-000 VALVE BODY
7
2563-326-001 9VDC LATCHING SOLENOID ASSEMBLY
8
2800-108-001 1/4" INLET ADDAPTER
9
2570-051-001 1/4" OD PLASTIC ELBOW ASSEMBLY
10
1895-461-000 1/4" OD NYLON NUT
11
0326-100-000 RETAINING CLIP
12
0124-010-000 #10 X 1/2" PHILLIPS TRUSS HEAD
13
7014-1293-199 BF11/12 VALVE MOUNTING BRACKET
AQUADONA • Brunnenstr. 149 10115 Berlin
Tel.: 030 345 092 37 • Mail: service@aquadona.com • www.aquadona.com
7020-956-001
Festwasserspender "Amazonas"
17
19
15
16
18
21
20
Seite 18 von 19
ITEM # TEILENUMMER BESCHREIBUNG
1
2563-000-002 DIRECT ACTING ASSEMBLY
2
0116-012-000 #8-32 x 1-1/4" PHILLIPS ROUND HEAD
3
0331-003-000 #8 LOCKWASHERS
4
1895-450-000 1/8" PLASTIC COMPRESSION NUT
5
2563-000-001 DIRECT ACTING MOTOR ASSEMBLY
6
2563-008-000 PILOT ORIFICE PLATE SPRING
7
2563-019-001 PILOT ORIFICE PLATE ASSEMBLY
8
2563-010-001 WATER DIAPHRAM ASSEMBLY
9
2563-007-000 DIRECT ACTING COVER PLATE
10
2563-004-001 DIRECT ACTING DIAPHRAM ASSEMBLY
11
2563-003-000 ACTUATOR SPRING
12
2563-001-000 MOTOR HOUSING
13
0401-026-000 SEPERATOR CUP O-RING
14
2563-002-199 SEPERATOR CUP
15
2563-000-000 VALVE BODY
16
2800-108-001 1/4" INLET ADAPTER ASSEMBLY
17
2570-051-001 1/4" OD PLASTIC ELBOW ASSEMBLY
18
1895-461-000 1/4" OD NYLON NUT
19
0326-100-000 RETAINING CLIP
20
0124-010-000 #10 X 1/2" PHILLIPS TRUSS HEAD
21
7014-1293-199 BF11/12 VALVE MOUNTING BRACKET
11
8
10
9
2
3
7
1
4
5
6
13
12
