27 U-CONTROL UCA222 User Manual

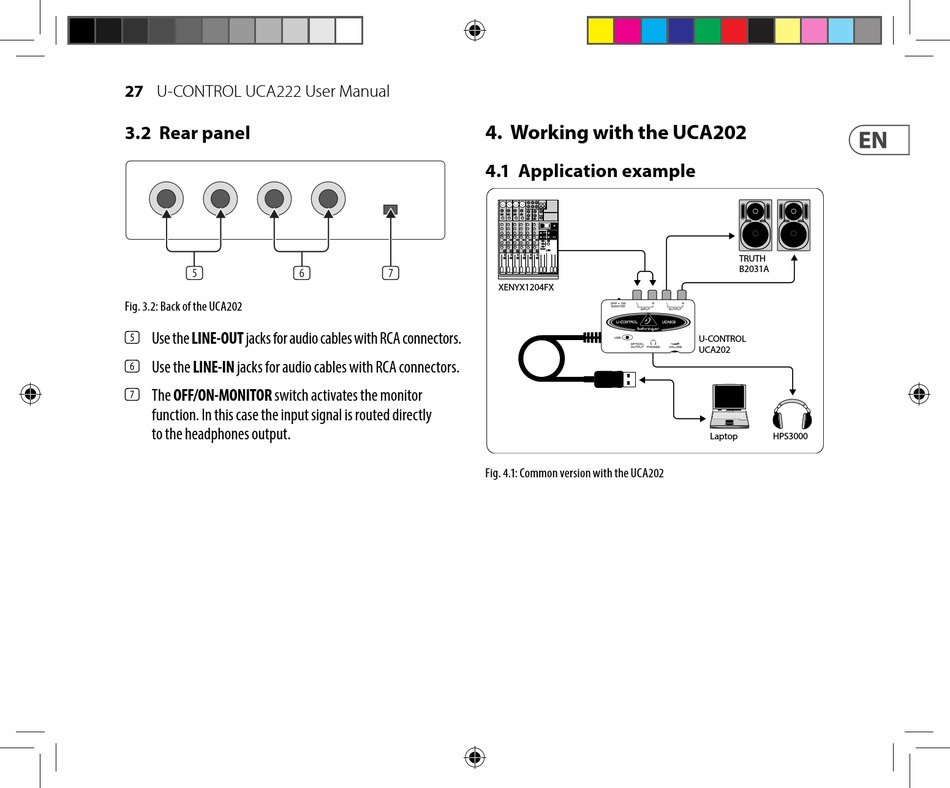

3.2 Rear panel

4)
Fig. 3.2: Back of the UCA202
(5) Use the LINE-OUT jacks for audio cables with RCA connectors.
(6) Use the LINE-IN jacks for audio cables with RCA connectors.
(7) The OFF/ON-MONITOR switch activates the monitor
function. In this case the input signal is routed directly
to the headphones output.
(5) (6)

4. Working with the UCA202

4.1 Application example

(7)
XENYX1204FX
Fig. 4.1: Common version with the UCA202
TRUTH
B2031A
U-CONTROL
UCA202
Laptop HPS3000
