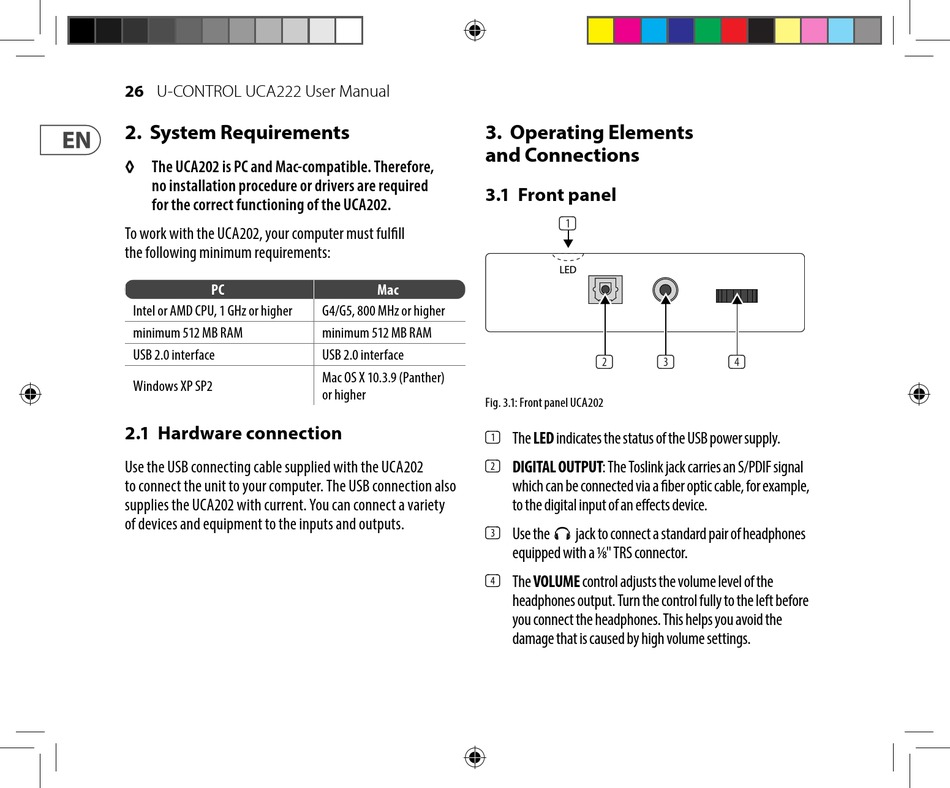

26 U-CONTROL UCA222 User Manual

2. System Requirements

◊ ◊ The UCA202 is PC and Mac-compatible. Therefore,
no installation procedure or drivers are required
for the correct functioning of the UCA202.
To work with the UCA202, your computer must fulfill
the following minimum requirements:
PC PC
Intel or AMD CPU, 1 GHz or higher
minimum 512 MB RAM
USB 2.0 interface
Windows XP SP2

2.1 Hardware connection

Use the USB connecting cable supplied with the UCA202
to connect the unit to your computer. The USB connection also
supplies the UCA202 with current. You can connect a variety
of devices and equipment to the inputs and outputs.
3. Operating Elements
and Connections

3.1 Front panel

Mac
G4/G5, 800 MHz or higher
minimum 512 MB RAM
USB 2.0 interface
Mac OS X 10.3.9 (Panther)
or higher
Fig. 3.1: Front panel UCA202
(1) The LED indicates the status of the USB power supply.
(2) DIGITAL OUTPUT: The Toslink jack carries an S/PDIF signal
(3) Use the
(4) The VOLUME control adjusts the volume level of the
(1)
LED
(2) (3)
which can be connected via a fiber optic cable, for example,
to the digital input of an effects device.
jack to connect a standard pair of headphones
equipped with a 1/8" TRS connector.
headphones output. Turn the control fully to the left before
you connect the headphones. This helps you avoid the
damage that is caused by high volume settings.
(4) (5)
