RS232 Adapter mit RS-232 DSUB-9 Stecker (male) ® Ladegerät mit RS232 Anschluss Antenne CD mit Handbuch und Konfigurationssoftware für Windows Systeme * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.

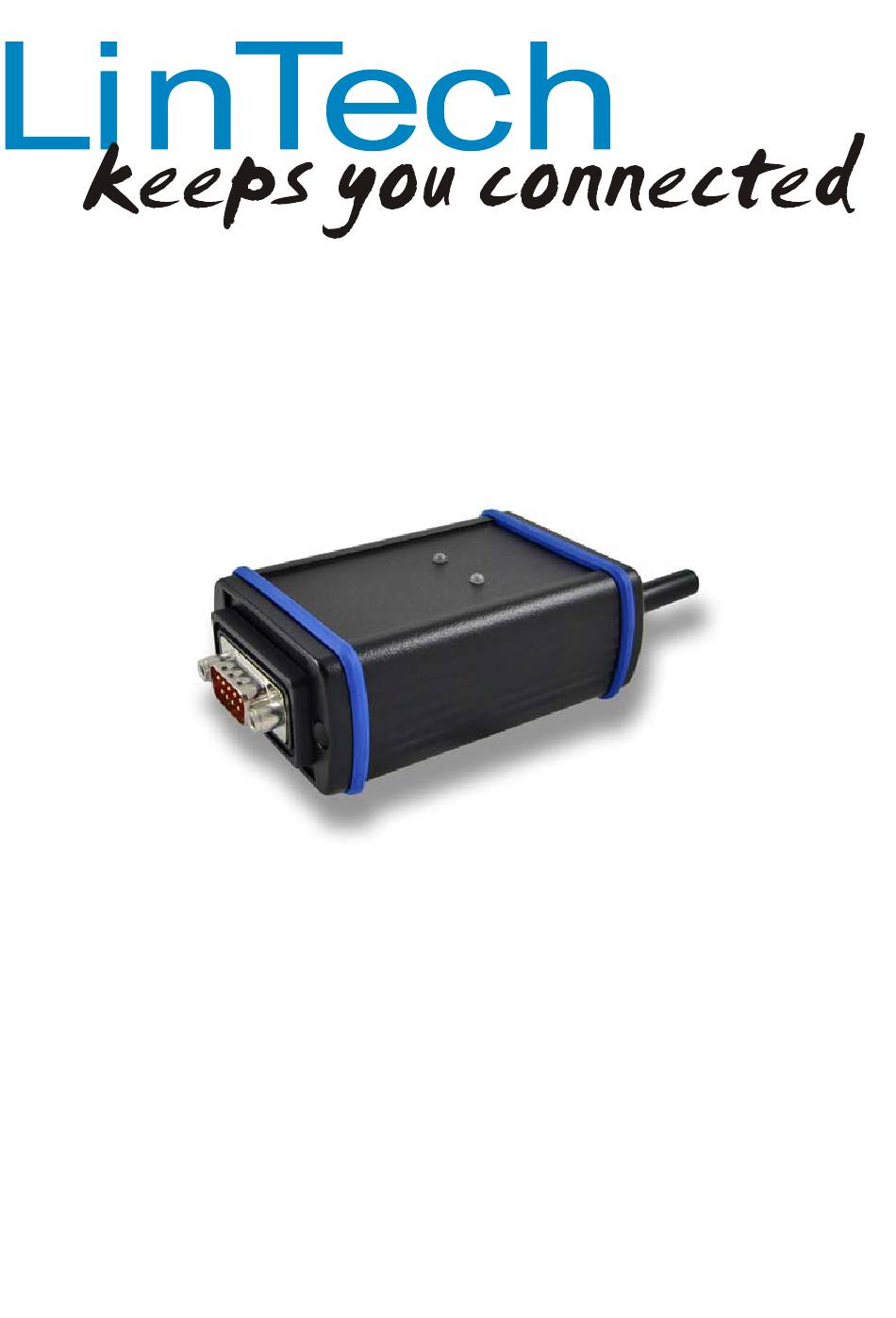

RS232 Anschluß Taste Wechseln Betriebsmodus Antenne Abbildung 1 Geräteansichten des Bluetooth RS232 IP65 Adapter ® Abbildung 2 Ladegerätes für 1409_IP * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Beachte: Bei der Adaptervariante ohne Akku leuchtet die LED beim Anstecken an ein RS232-Kabel mit Spannungsversorgung über PIN 9 kurzzeitig grün auf und erlischt dann – Anzeige „Betriebsspannung vorhanden“! * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Sie finden ein Gerät „LinTech RS232 „MINI“ - das ist der Bluetooth RS232 Adapter. Abbildung 3 Gerätesuche im Bluetooth Manager ® * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
COM-Ports müssen Sie die Bluetooth Verbindung zum Bluetooth RS232 Adapter einrichten. Hierbei wählen Sie in der Regel das Bluetooth Profil / Serial Port Profile / und das Gerät aus / LinTech RS232 MINI / mit welchem Sie kommunizieren möchten.
LED2 blinkt langsam kurz rot –„Konfigurationsmodus“- Dienst = COM-CONFIG . LED2 blinkt langsam kurz grün –„Normalbetrieb“ – Dienst = COM-HARDWARE * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
RS232 Adapters bzw. eine physikalische Verbindung zur seriellen Schnittstelle Ihres PC's. ® Weiterer Informationen entnehmen Sie bitte dem Handbuch zum BlueTool. 3.6. Konfiguration über AT-Kommandos * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Seite 10
Zeichen. Alle eingegebenen Kommandos müssen mit <CR> bestätigt werden. Alle Änderungen die vorgenommen wurden, werden sofort übernommen und im RS232 Adapter abgespeichert. * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
„1234“ eine Verbindung aufzubauen. Verlangt die zukünftige Gegenstelle einen PIN-Code für den Verbindungsaufbau, kann dieser ebenfalls über das Konfigurationsprogramm eingegeben werden. * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
- und im sogenannten Mastermodus arbeitet. Voraussetzung für den Betrieb im „Master" Modus war in jedem Fall, dass die Bluetooth - Gegenstelle bekannt ist. ® * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Wenn die Verbindung erfolgreich aufgebaut wurde (LED2 wechselt zwischen rot und grün) trennen Sie die beiden Adapter voneinander. Die Verbindungsparameter werden gespeichert und Sie können beide Adapter jetzt benutzen. * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Organe Wechsel zwischen „Normalbetrieb“ und Konfigurationsmodus“ bei kurzem Tastendruck. ODER: Wechsel zwischen Betriebsmodus „Slave“ und „Master“ bei langem Tastendruck. * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Tastendruck. und Orange 6.3. Sonderfunktionen LED2 Sequenz Bedeutung LED leuchtet rot RS232 Adapter befindet sich im Kopplungsmodus - Kabelersatz * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
Werfen Sie das Gerät/ Akkus nicht ins Feuer! Entsorgen Sie Geräte/Akkus gemäß den lokalen Bestimmungen (z. B. Recycling). Werfen Sie diese nicht in den normalen Hausmüll. * Bluetooth and the Bluetooth logos are trademarks owned by Bluetooth SIG, Inc., U.S.A. and licensed to LinTech GmbH, Berlin Germany.
