Givi BF51 Bauanleitung

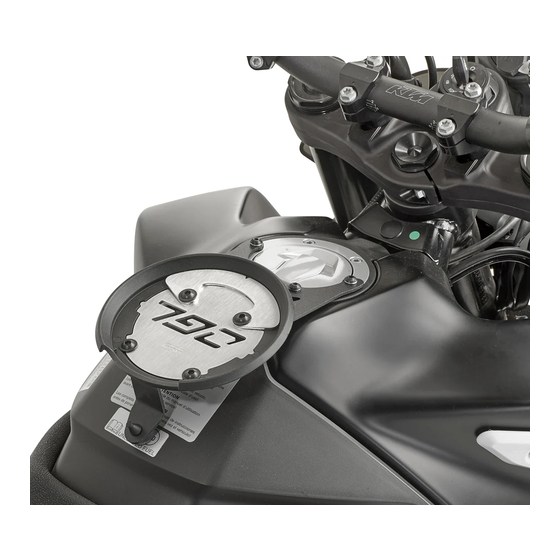

Flangia Specifica per borse Tanklock - Specific Carrier for Tanklock bags
Brides spécifiques pour Tanklock bagagerie souple - Tankringen für tanklock Weichtaschen
Aro específico para bolsa Tanklock - Anel específico para bolsa Tanklock
N° Descrizione
Supporto inferiore - Lower support
1 Support inférieur - Soporte inferior
Untere Halterung - Suporte inferior
Flangia - Support
Brides - Tankringen
2
Aro - Anel
Supporto - Support - Support
3
Halterung - Soporte – Apoio
Vite - Screw
Vis - Schraube
4
Tornillo - Parafuso
Vite - Screw
Vis - Schraube
5
Tornillo - Parafuso
Vite - Screw
6 Vis - Schraube
Tornillo - Parafuso
Vite - Screw
Vis - Schraube
7
Tornillo - Parafuso
Rondella spaccata - Split washer
8 Scheibe - Rondelle fendue
Arandela seccionada - Arruela Dentada
Distanziale - Spacer
Entretoise - Distanzstueck
9
Distanciador - Espaçador
Componenti Originali - Original Parts
Parties Originales - Original Bauteile
10
Componentes Originales - Componentes
Originais
Particolari inclusi nella borsa tanklock
Components included in the tanklock bag
Pièces inclues dans la tanklock bag
11
Teile inkludiert in der tancklock tasche
Componente incluído na bolsa tanklock
Despieces Incluidos bolsa tanklock
©Copyright 16/07/2020LF-Rev00
BF51 - BF51K
Caratteristiche
-
-
TBEI M5x45
TBEI M5x20
TBEIFN M6x10
TBEIFN M6x14
Ø5mm
Ø8,5x7 Foro 6mm
-
-
ISTRUZIONI DI MONTAGGIO - MOUNTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE - BAUANLEITUNG - INSTRUCCIONES
DE MONTAJE
Codice Quantità
GL4202V
GL4451
GL4204V
545TBEI
520TBEI
610TBEIFN
614TBEIFN
Z1049
C8,5L7F6T
-
-
1
1
1
2
2
2
2
4
4
-
-
1/4
