Givi BF91 Kurzanleitung

Flangia Specifica per borse Tanklock - Specific Carrier for Tanklock bags
Brides spécifiques pour Tanklock bagagerie souple - Tankringen für tanklock Weichtaschen
N°

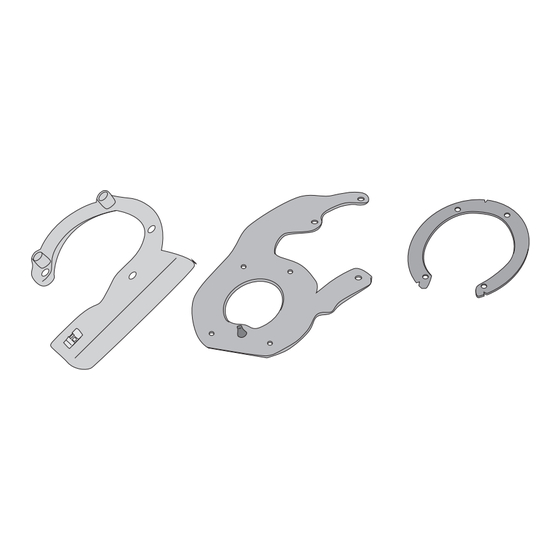

Supporto inferiore - Lower support
1
Support inférieur - Soporte inferior
Untere Halterung - Suporte inferior
Supporto - Support - Support
2
Halterung - Soporte – Apoio
Supporto superiore - Support higher - Support supérieur
3
Halterung höher - Soporte superior - Apoio superior
Vite - Screw - Vis - Schraube
4
Tornillo - Parafuso
Vite - Screw - Vis - Schraube
5
Tornillo - Parafuso
Vite - Screw - Vis - Schraube
6
Tornillo - Parafuso
Vite - Screw - Vis - Schraube
7
Tornillo - Parafuso
Distanziale - Spacer - Entretoise - Distanzstueck
8
Distanciador - Espaçador
Dado a gabbia - Cage nut
Écrou cage - Tuerca jaula
9
Halterung für Mutter - Porca especial
Dado - Bolt - Ecrou
10
Mutter - Tuerca – Porca
Componenti Originali - Original Parts
11
Parties Originales - Original Bauteile
Componentes Originales - Componentes Originais
Particolari inclusi nella borsa tanklock
Components included in the tanklock bag
Pièces inclues dans la tanklock bag
12
Teile inkludiert in der tancklock tasche
Componente incluído na bolsa tanklock
Despieces Incluidos bolsa tanklock
©Copyright 12/11/2024LF-Rev00
BF91 - BF91K
Aro específico para bolsa Tanklock
Descrizione
ISTRUZIONI DI MONTAGGIO - MOUNTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE - BAUANLEITUNG - INSTRUCCIONES
Caratteristiche
-
-
-
TBEI M4x33
TBEIX M4x12
TBEIF M6x10
TBEIFN M6x14
Ø7,5x6,5 foro 5,2mm
-
-
-
-
DE MONTAJE
Codice Quantità
GL5963V
GL5964V
GL5313V
433TBEI
412TBEIX
610TBEIF
614TBEIFN
C7,5L6,5F5,2 T
6DADIGB
4DADICX
-
-
1
1
1
3
4
2
1
3
1
4
-
-
1/4
