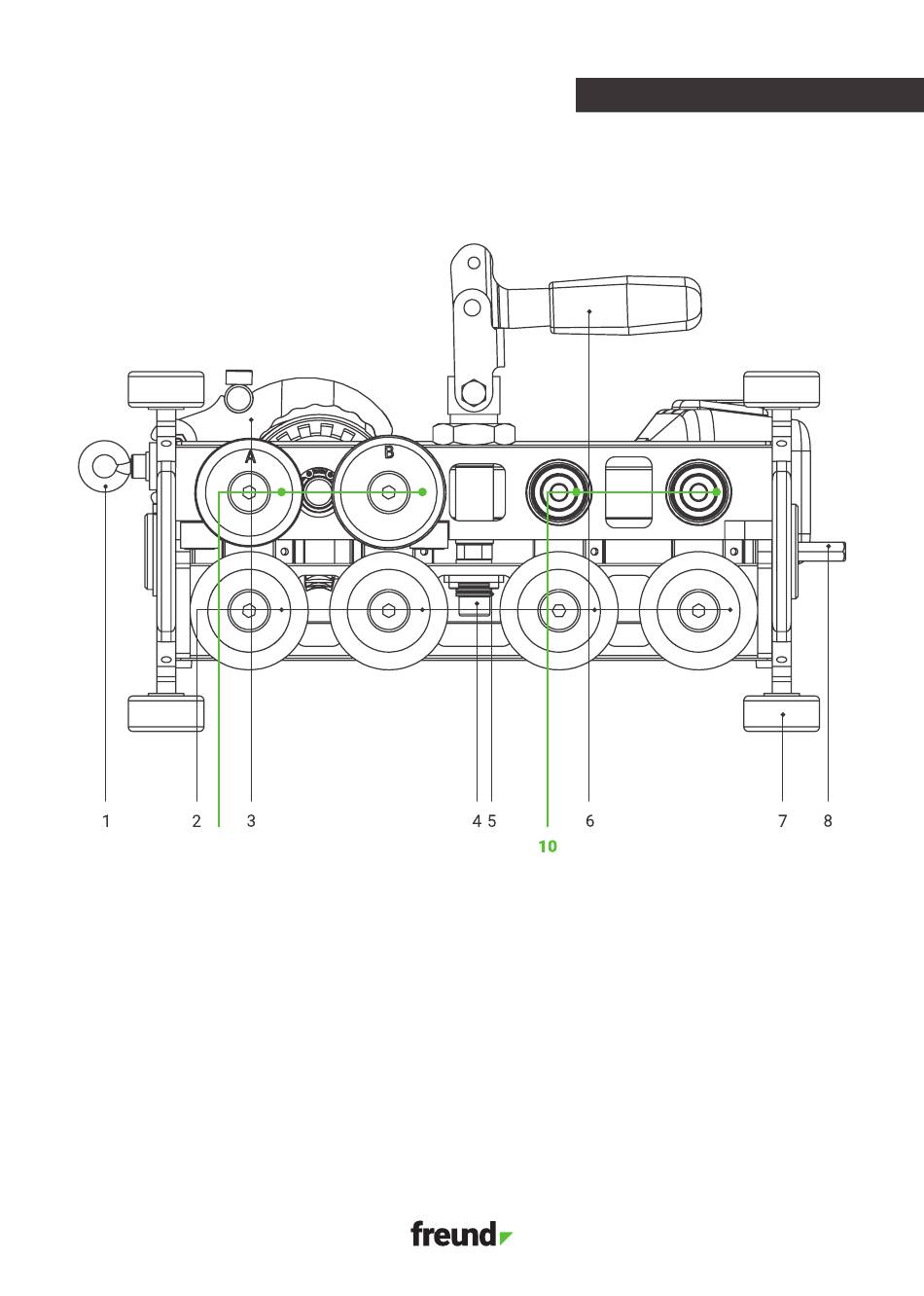

15. DRAWING SINGLE STANDING SEAM

9
1. Safeguarding with ring bolt
2. Rubber drive rollers
(4 pieces in a row)
3. Holder cordless screwdriver
4. Pressure adjustment screw
5. Disc springs
6. Tension lever
7. Track rolls (4 pieces)
WWW.FREUND-CIE.COM
8. Rear cordless screwdriver adapter
9. Forming rolls A and B
(Marking on forming rolls and
housing site)
10. Roll holders C and D free
Subject to technical changes. Please observe the safety instructions.
