10. MODE OF OPERATION

The seam is produced by driving rolls and forming
rolls. The forming rolls are marked A to D. Forming
rolls A and B are used to produce the single stan-
ding seam, forming rolls C and D close the single
standing seam to form a double standing seam.
This allows the double standing seam to be pro-
duced in one operation (without changing rolls).
In addition, two cutting rolls can be used in row C.

11. ADJUSTMENT OF THE SEAM HEIGHT

The Seaming Pro is factory-set to a seam height
of 25 mm (1"). For seams with a height of 32 mm
(1¼"), the rollers must be changed. The rollers are
secured with hexagon socket screws. Four rollers
of the same size must always be used. For seams
with a height of 38 mm (1.5"), the track rollers
can be ordered optionally (item. no. 93000014).
Subject to technical changes. Please observe the safety instructions.
29

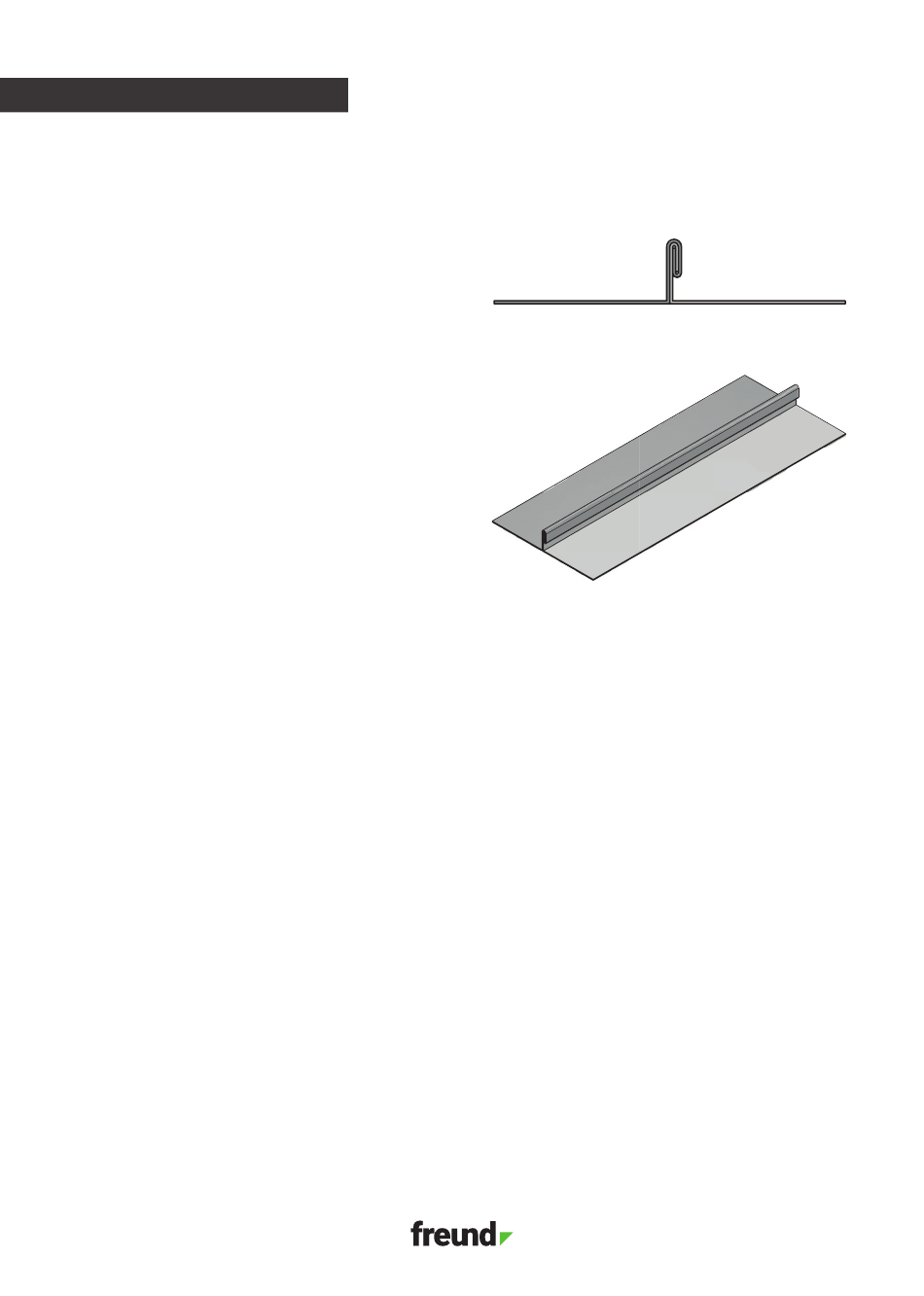

12. DOUBLE STANDING SEAM

Before the double standing seam is produced,
it must be ensured that the machine can enter
the pre-profiled panels. If this is not possible, the
panels must be preseamed to machine length
using a double squareseam folder.
To produce the double standing seam, the form
rolls A, B, C and D must be mounted and the
tension lever must be closed. Make sure that the
cordless screwdriver is not ready for operation
when changing the rollers.
