Krauser 4004-026-201 Montage Seite 7

Rear carrier
YAMAHA FZ 1 Fazer
from date of manufacture 2006
Item - No.:
4004-026-201 black
Assembling instructions
4

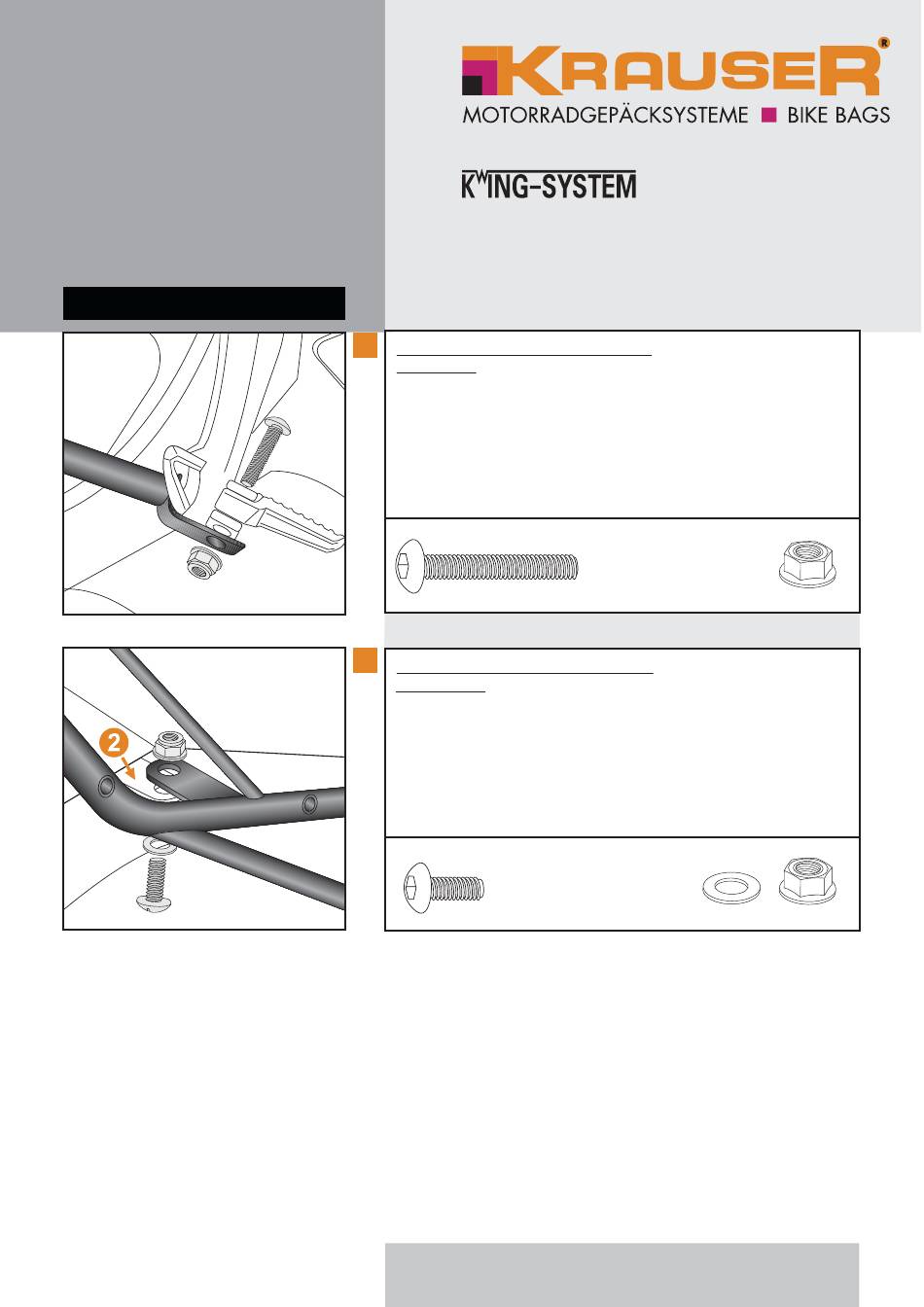

Fastening of the pipe strut left + right:
front below:
Change the footrest bracket bolt with filister head screw M8 x 45.
Then fix the pipe strut with special nut M8 on the thread.
Notice:
Slightly tighten the nut, so that the footrest can be moved.
5
Fastening of the pipe strut left + right:
in the middle:
At the crossing brace with filister head screw M 8 x 20, washer ø8,4
and special self-lock nut M8.
Ride the future
each 2x
each 2x
