D

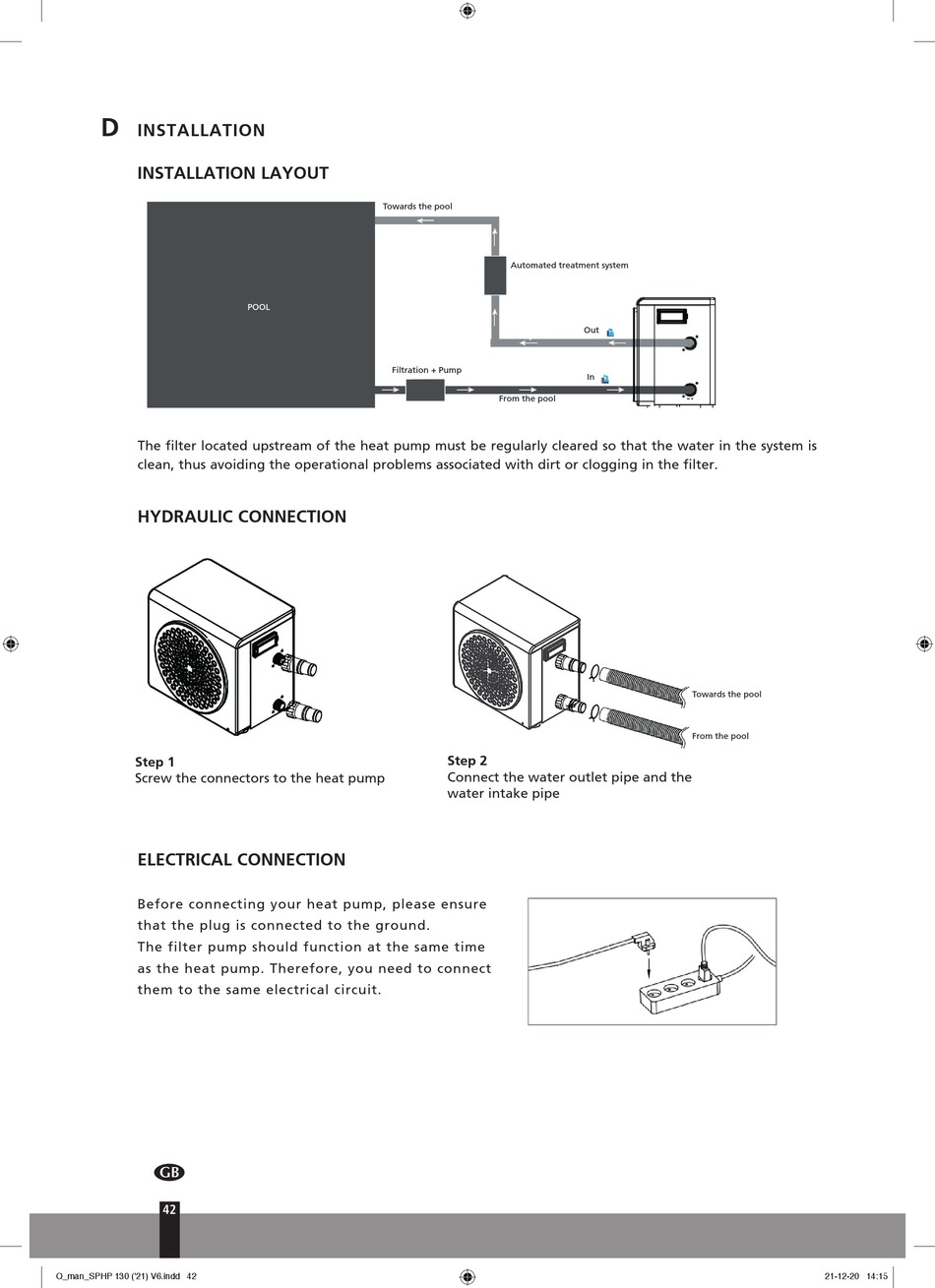

INSTALLATION

INSTALLATION LAYOUT

The filter located upstream of the heat pump must be regularly cleared so that the water in the system is
clean, thus avoiding the operational problems associated with dirt or clogging in the filter.

HYDRAULIC CONNECTION

Step 1
Screw the connectors to the heat pump

ELECTRICAL CONNECTION

Before connecting your heat pump, please ensure
that the plug is connected to the ground.
The filter pump should function at the same time
as the heat pump. Therefore, you need to connect
them to the same electrical circuit.
4
42
Q_man_SPHP 130 ('21) V6.indd 42 Q_man_SPHP 130 ('21) V6.indd 42
Towards the pool
POOL
Filtration + Pump
Automated treatment system
Out
In
From the pool
Step 2
Connect the water outlet pipe and the
water intake pipe
Towards the pool
From the pool
