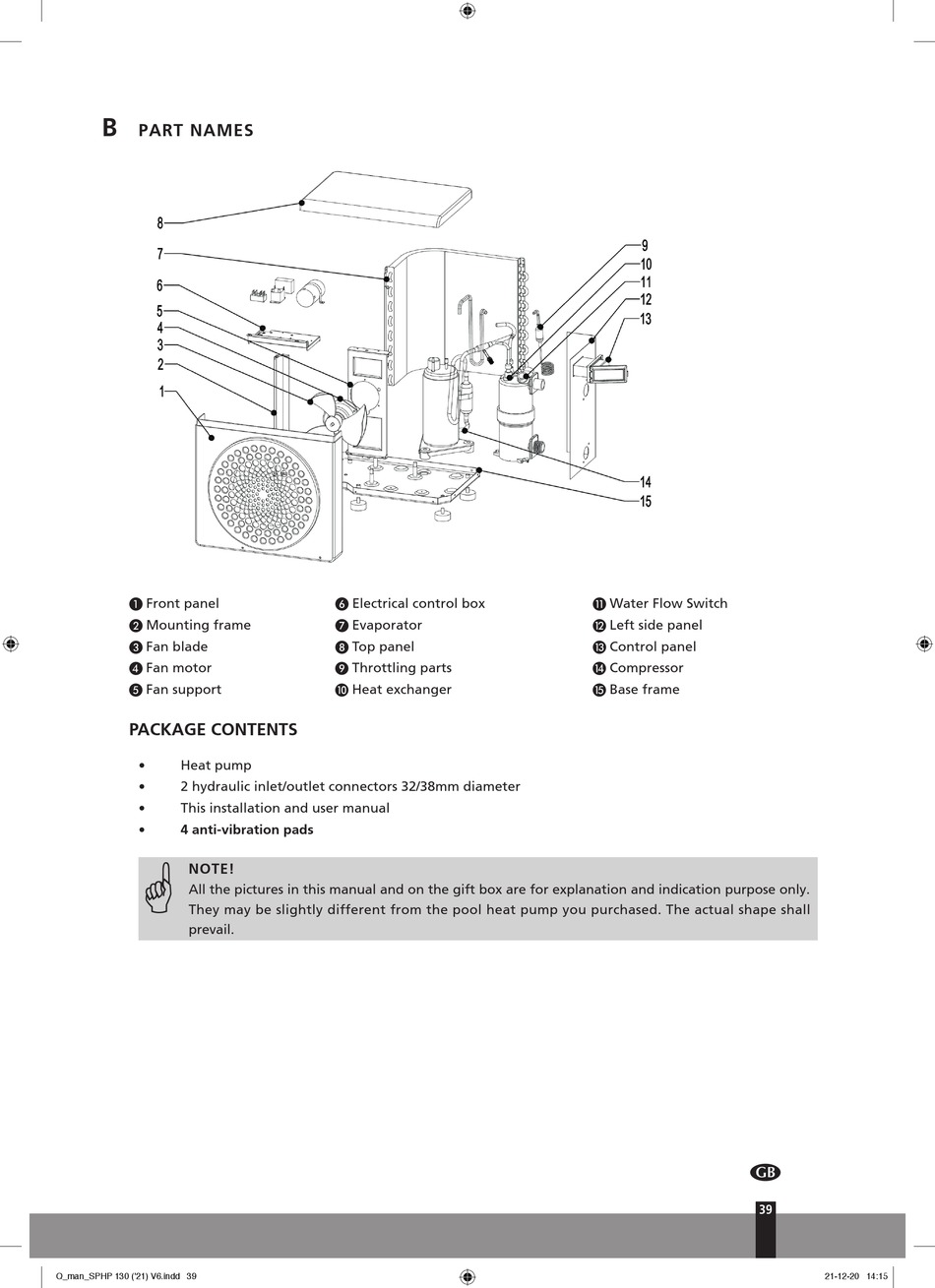

PART NAMES
A Front panel
B Mounting frame
C Fan blade
D Fan motor
E Fan support

PACKAGE CONTENTS

• Heat pump
• 2 hydraulic inlet/outlet connectors 32/38mm diameter
• This installation and user manual
• 4 anti-vibration pads
G
NOTE!
All the pictures in this manual and on the gift box are for explanation and indication purpose only.
They may be slightly different from the pool heat pump you purchased. The actual shape shall
prevail.
Q_man_SPHP 130 ('21) V6.indd 39 Q_man_SPHP 130 ('21) V6.indd 39
F Electrical control box
G Evaporator
H Top panel
I Throttling parts
J Heat exchanger
K Water Flow Switch
L Left side panel
M Control panel
N Compressor
O Base frame
