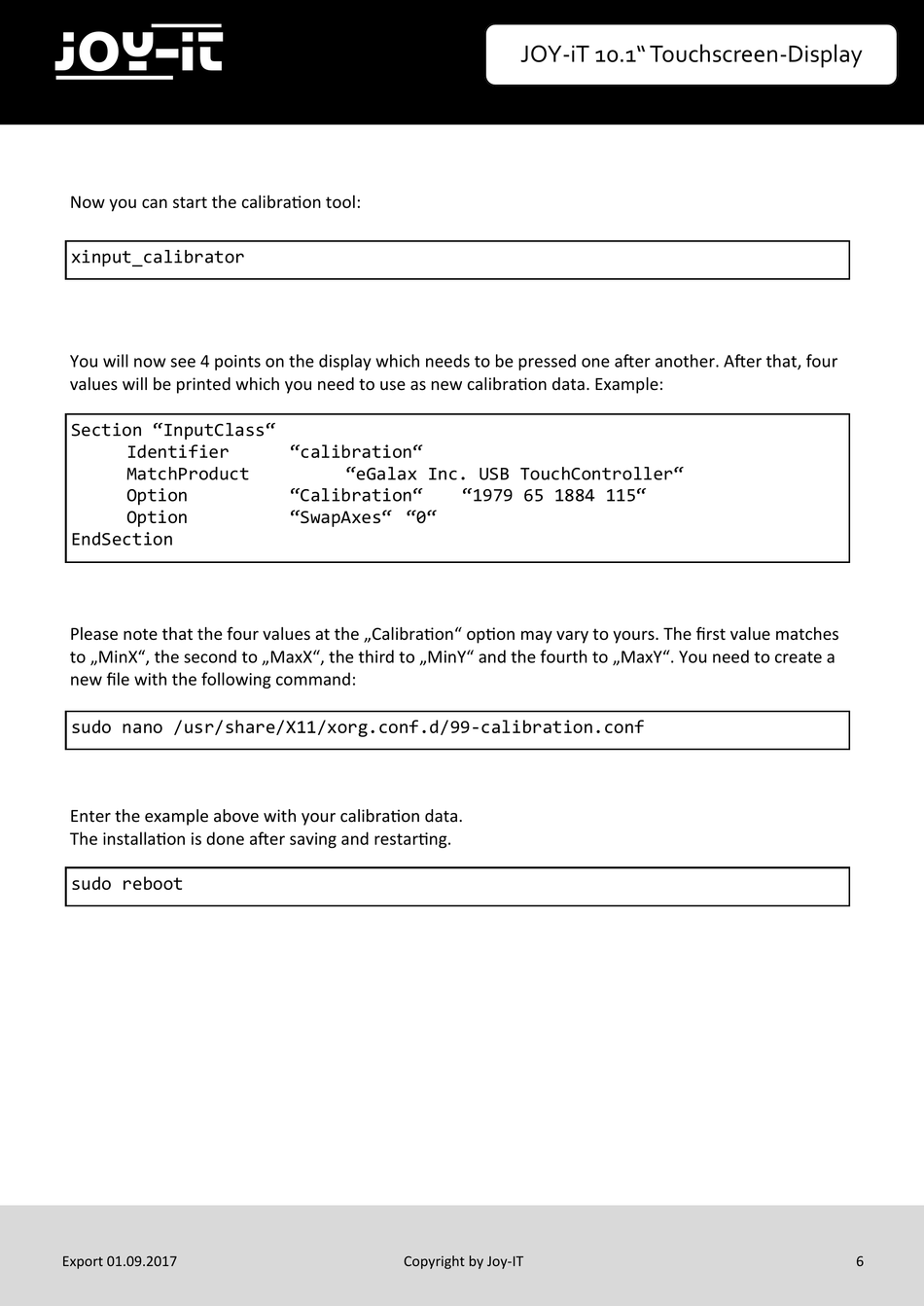

Joy-it 10.1 Touchscreen Bedienungsanleitung Seite 6

3
Now you can start the calibration tool:
xinput_calibrator
You will now see 4 points on the display which needs to be pressed one after another. After that, four
values will be printed which you need to use as new calibration data. Example:
Section "InputClass"
Identifier
MatchProduct
Option
Option
EndSection
Please note that the four values at the „Calibration" option may vary to yours. The first value matches
to „MinX", the second to „MaxX", the third to „MinY" and the fourth to „MaxY". You need to create a
new file with the following command:
sudo nano /usr/share/X11/xorg.conf.d/99-calibration.conf
Enter the example above with your calibration data.
The installation is done after saving and restarting.
sudo reboot
Export 01.09.2017
"calibration"
"eGalax Inc. USB TouchController"
"Calibration" "1979 65 1884 115"
"SwapAxes" "0"
Copyright by Joy-IT
JOY-iT 10.1" Touchscreen-Display
6
