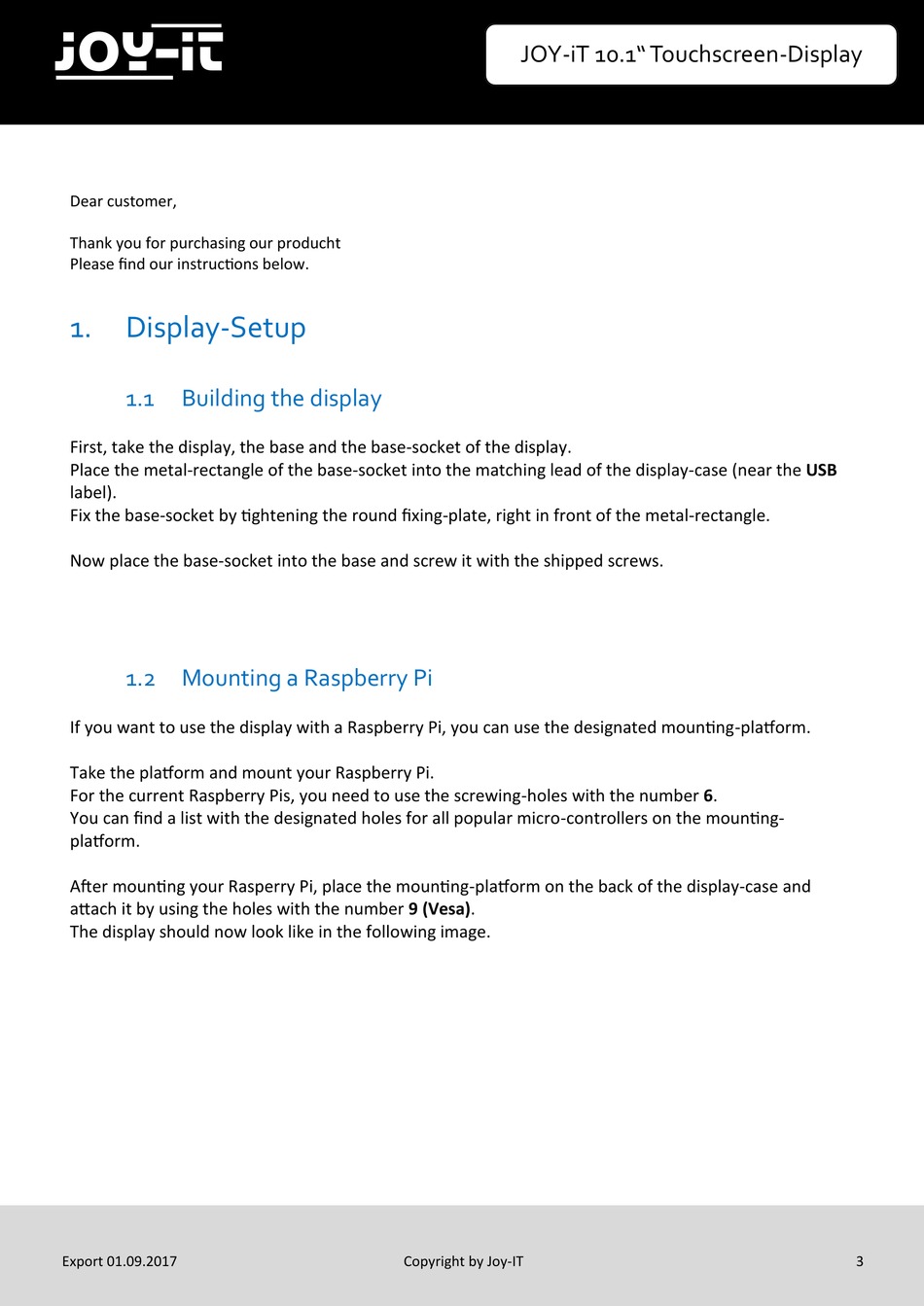

Dear customer,
Thank you for purchasing our producht
Please find our instructions below.
1.

Display-Setup

1.1 Building the display
First, take the display, the base and the base-socket of the display.
Place the metal-rectangle of the base-socket into the matching lead of the display-case (near the USB
label).
Fix the base-socket by tightening the round fixing-plate, right in front of the metal-rectangle.
Now place the base-socket into the base and screw it with the shipped screws.
1.2 Mounting a Raspberry Pi
If you want to use the display with a Raspberry Pi, you can use the designated mounting-platform.
Take the platform and mount your Raspberry Pi.
For the current Raspberry Pis, you need to use the screwing-holes with the number 6.
You can find a list with the designated holes for all popular micro-controllers on the mounting-
platform.
After mounting your Rasperry Pi, place the mounting-platform on the back of the display-case and
attach it by using the holes with the number 9 (Vesa).
The display should now look like in the following image.
