card n° aperture suggested use
1 F2.0
2 F2.8
3-8 F1.4
• Mount the dome camera in the desired location. Use the
base as a template for the mounting holes.

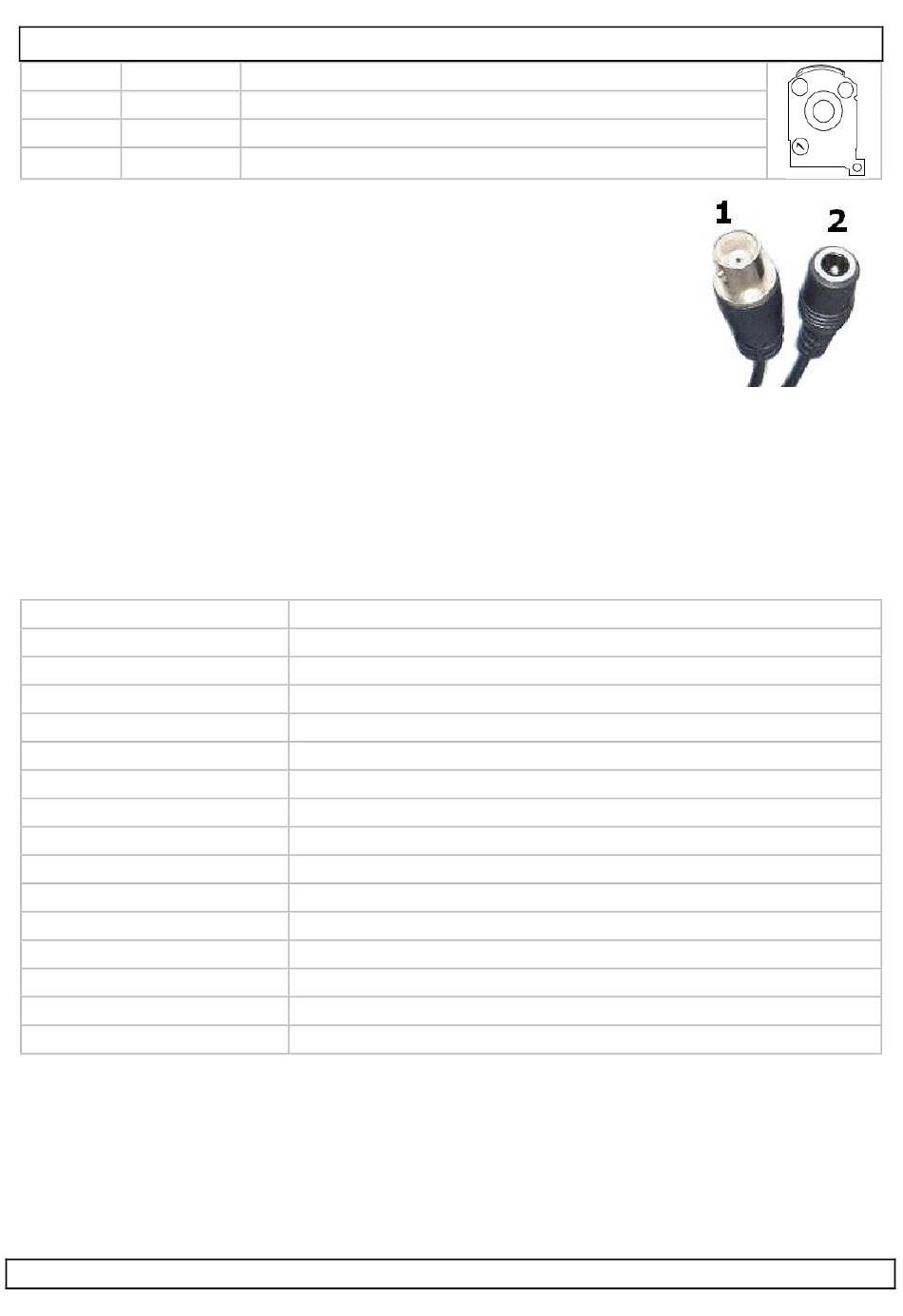

• Connect the video/power cable to the PCB. The connector
only fits in one way, do not force. Connect the video [1]
and power [2] lines.
• Point the camera towards the field of interest.
• Release screw [A] until the housing can be moved and
set the desired zoom factor. Tighten screw [A] hand
tight. Do not force to avoid damage to the mechanism.
• Release screw [B] until the housing can be moved and set the desired
focus. Tighten screw [B] hand tight. Do not force to avoid damage to
the mechanism.
• Place the inner cover back (do not cover the camera lens).
• Place the outer cover back and secure it by turning it clockwise.
5.

Technical specifications

pick-up element
pixels
horizontal resolution
min. illumination
S/N ratio
electronic shutter
lens
lens angle
iris mode
aperture
white balance
video output
power supply
current consumption
dimensions
weight
Use this device with original accessories only. Velleman nv cannot
be held responsible in the event of damage or injury resulted from
(incorrect) use of this device. For more info concerning this product,
please visit our website www.velleman.eu. The information in this
manual is subject to change without prior notice.
12.02.2010
CAMCOLD8N
most environments
fluorescent light conditions, suppress rolling
dark environment
1/3" HR colour CCD image sensor
752(H)x582(V) PAL
520 TV lines
0.1 lux / F2.0
> 48dB (AGC off)
1/50 to 1/100000s
4.0mm ~ 9.0mm
73° ~ 36°
AES
F1.4, F2.0 or F2.8 (3 iris cards included)
ATW
1Vpp @ 75 ohms
12VDC ±10%
70mA ± 10%
131 x 122 x 85mm
210g
