EcoDim ECO-DIM.06 Handbuch Seite 8

4) TouchLink
Step 1. If the device is on a ZigBee network, remove the device before enabling TouchLink.
Step 2. Press the reset button
for 4 times.
Step 4. Bring the remote within 10cm of the smart dimmer and set the remote into TouchLink
commissioning.
Step 5. The connected light will blink 10 times when TouchLink succeeds.
Note:
a. When both devices (Dimmer and remote) are not included in the Zigbee Network, each dimmer can link with
one remote max.
b. When both devices are included in the same Zigbee network, each dimmer can link with max 30 remotes.
c. For Philips Hue Hubs and Amazon Echo Plus, add the remote and device to network rst then touchlink.
5) Find and Bind

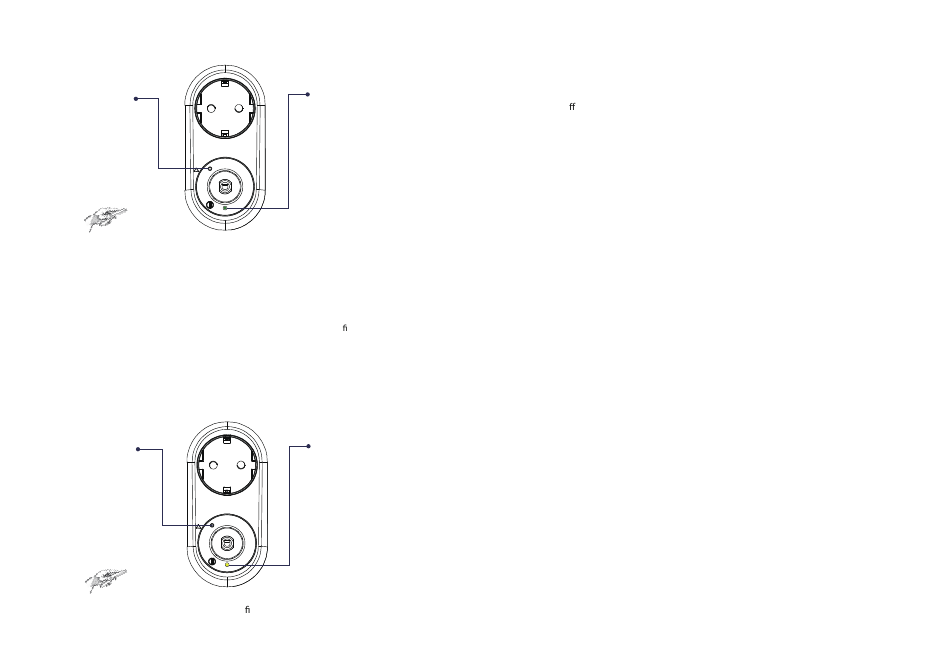

Step 1. Make sure the device and remote are added to the same Zigbee network.
Step 2. Press the reset button
for 5 times.
Step 4. Make sure the device and remote are added to the same Zigbee network. Please refer to the
manufacturers instructions on how to set the remote in nd and bind mode.
Step 3. The indicator starts
blinking green and stays solid for
10s when pairing succeeds.
Timeout 15mins.
Reset
Min
Indicator
Step 3. The indicator starts
blinking yellow and will stay
solid for 10s.
Reset
Min
Indicator
Index- Zigbee Clusters the device supports
1) Input Cluster
- 0x0000: Basic
- 0x0003: Identify
- 0x0004: Groups
- 0x0005: Scenes
- 0x0006: On/o
- 0x0008: Level Control
- 0x0b05: Diagnostics
2) Output Cluster
- 0x0019: OTA
3) Zigbee codes / Commands
The full list of Z-Wave and Zigbee commands can be found on our website,
loads-smart-dimmer.
Support Hub/Platform
Suitable for most Zigbee hubs / apps:
√ Homey
√ SmartThings
√ Philips Hue
√ Google Home
√ Amazon Alexa
√ Wink
√ Homee
√ Futurehome
√ Aduro Smart
√ Trust Smart Home
Please refer to Corresponding hub manual /instruction to learn how
www.ecodim.nl/down-
