Part nr. 902932-01
Winx-4b 75"
Whiteboard frame for the BalanceBox

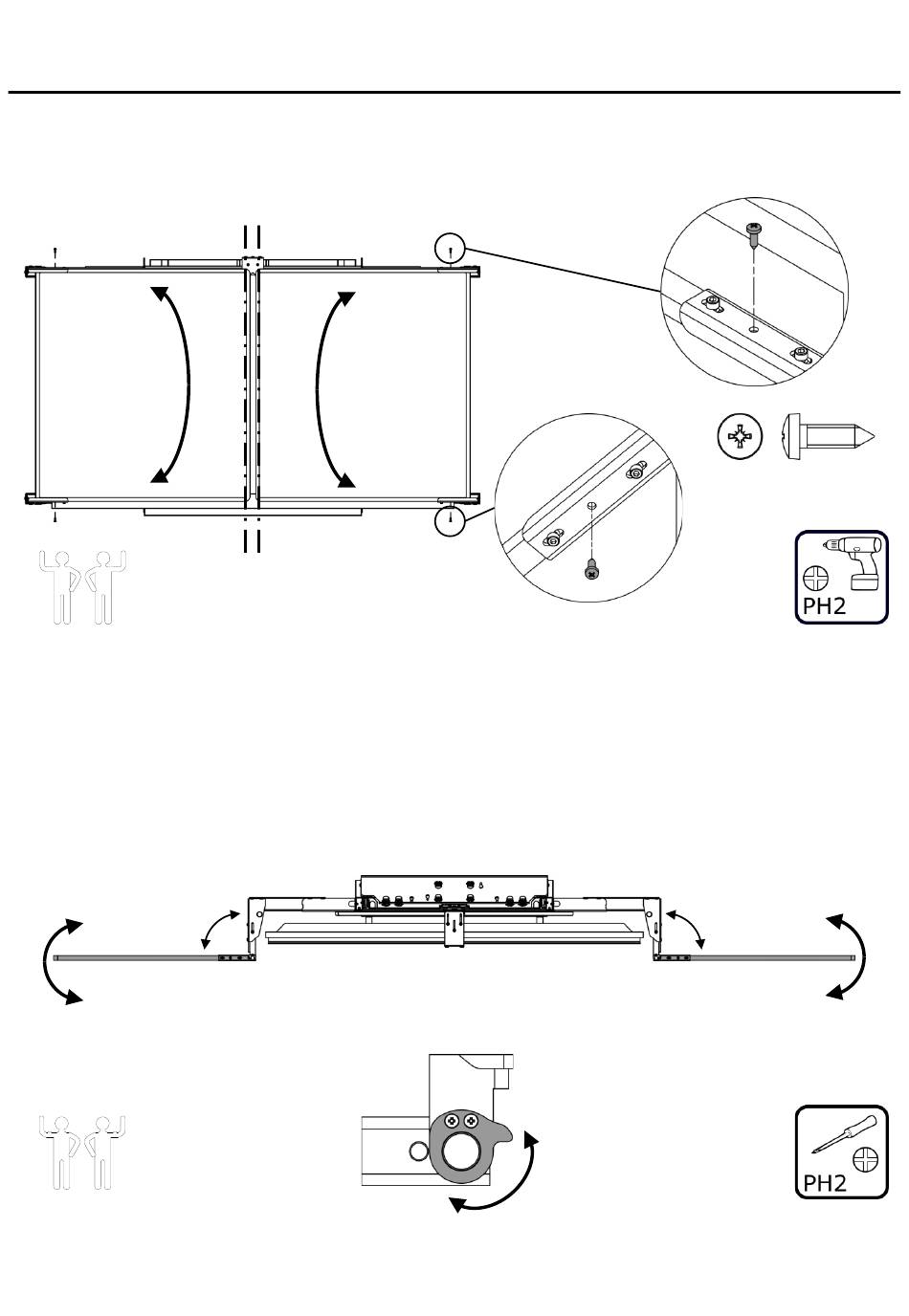

Close the whiteboards and check if they are propperly aligned, if not adjust the whiteboards:
15
Loosen the screw on top and bottom of the whiteboard, adjust and then tighten the screws again.
Secure the whiteboard by using 2x (L) Ø4,8x16 screw per whiteboard, use a powerdrill.
Open the whiteboards and check if the open position is O.K., if not adjust the end stop of the Hinges:
16
Loosen the screws on top and bottom of each hinge.
Adjust the end stop and tighten the screws on top and bottom of each hinge.
®
650
90°
23
1:1
4x (L) Ø4,8x16
90°
