Thomas Regout BalanceBox Winx-4b Installationsanleitung Seite 19

Part nr. 902932-01
11

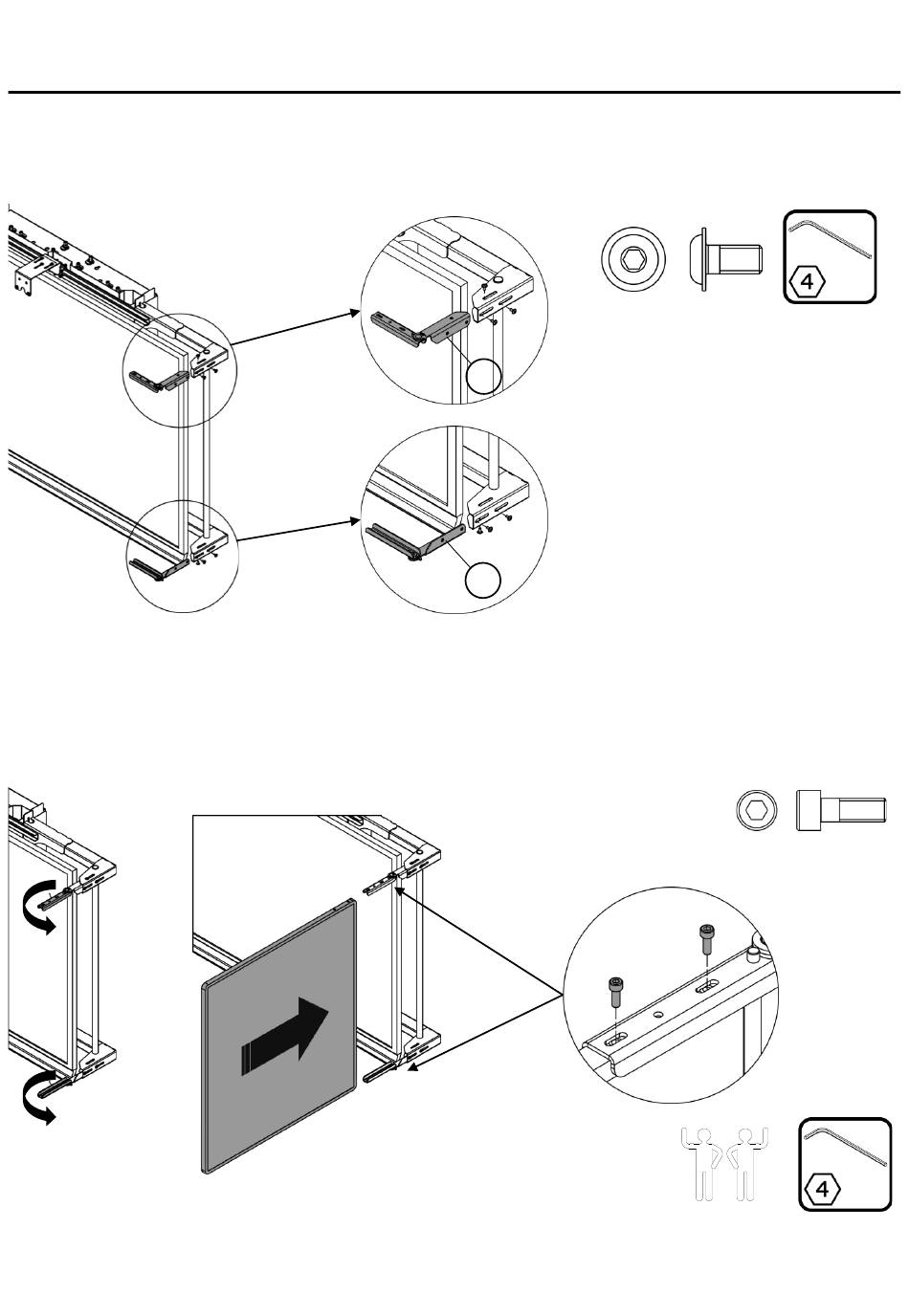

Mount 4x the hinges (C) to the Winx-4b frame.
Use for each hinge 3x (I) M6x12 screw.
Mount 2x the whiteboards to the Winx-4b frame. One on each side.
12
Turn the top and bottom hinges forward and slide in the whiteboard.
Use 4x (K) M5x14 screw to secure each whiteboard.
Whiteboard frame for the BalanceBox
C
C
19
Winx-4b 75"
1:1
3x (I) M6x12
2x (K) M5x14
® 650
1:1
