Welltime Rund Lina2 49900945 Aufbauanleitung Seite 23

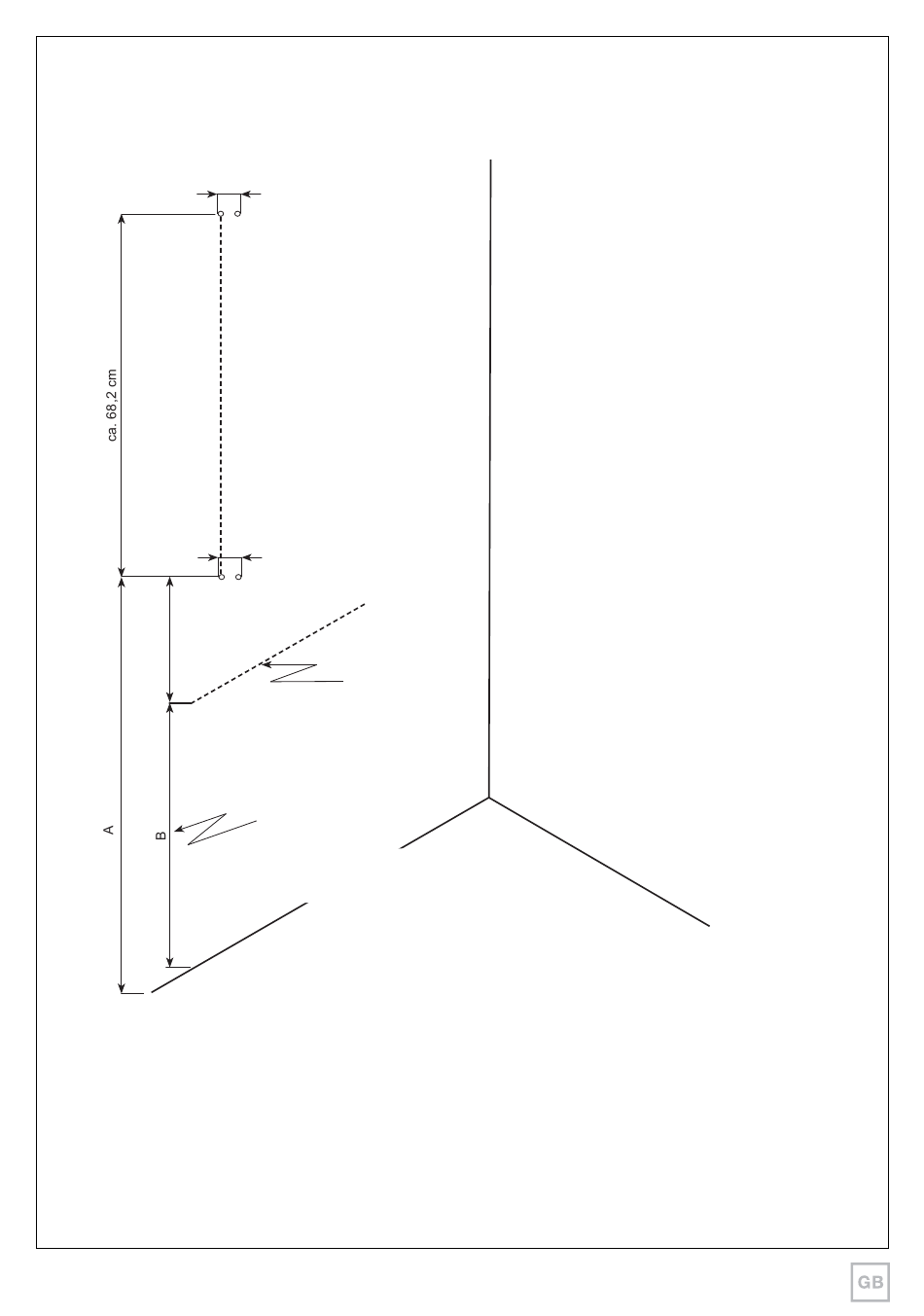

Dimensions
ca. 8 mm
ca. 8 mm
Distance between bottom of Overheadshower-Set
and floor level (to be desided by installer and refer to
body height)
2. This shows the ideal height of the hot/cold water outout
as well as distance between both taps.
Level intended to mark
bottom of Overheadshower-Set
3. Connect the water input hose at the Overheadshower-Set
to the hot/cold water output tap using a spanner.
23
