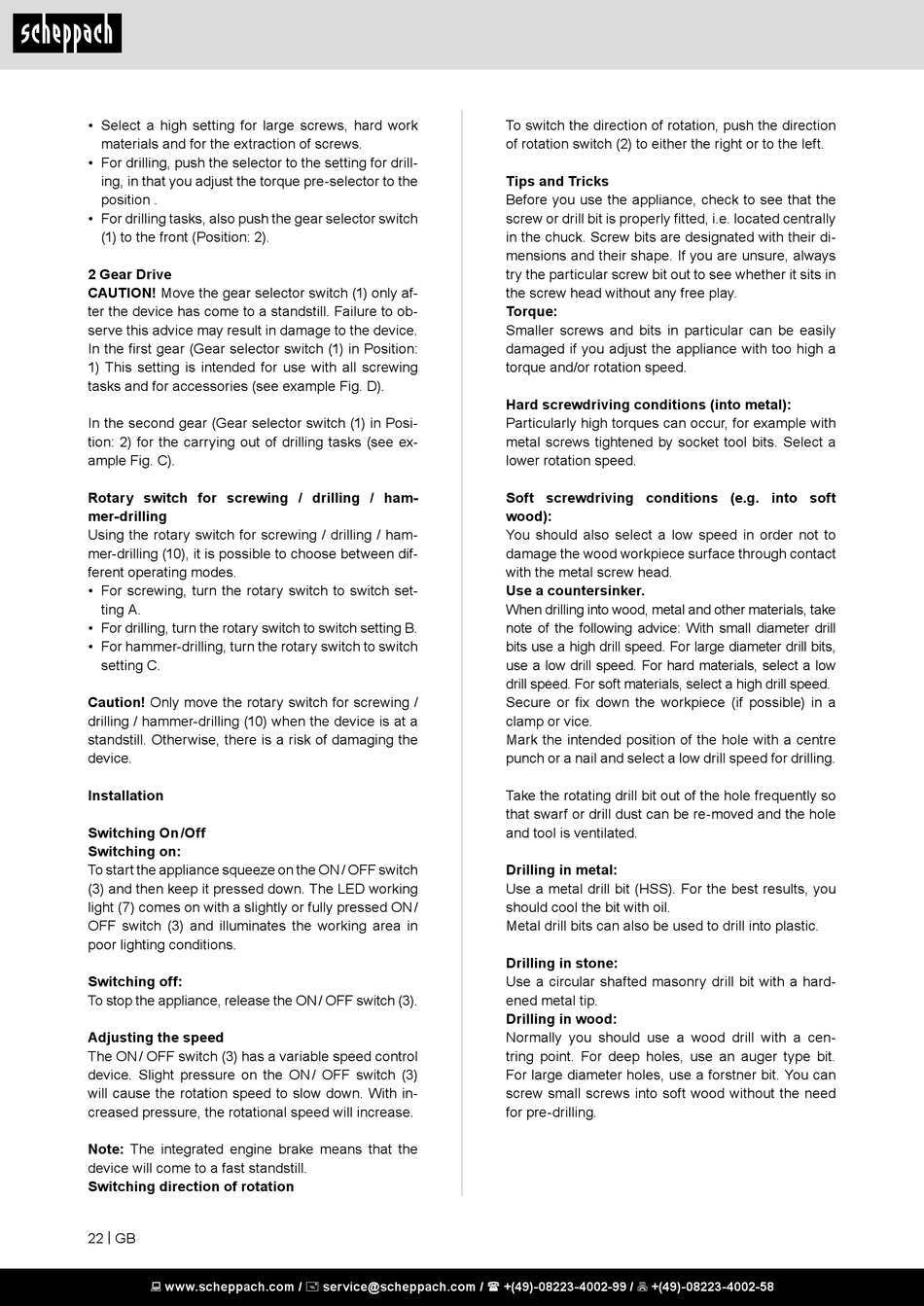

• Select a high setting for large screws, hard work
materials and for the extraction of screws.
• For drilling, push the selector to the setting for drill-
ing, in that you adjust the torque pre-selector to the
position .
• For drilling tasks, also push the gear selector switch
(1) to the front (Position: 2).
2 Gear Drive
CAUTION! Move the gear selector switch (1) only af-
ter the device has come to a standstill. Failure to ob-
serve this advice may result in damage to the device.
In the first gear (Gear selector switch (1) in Position:
1) This setting is intended for use with all screwing
tasks and for accessories (see example Fig. D).
In the second gear (Gear selector switch (1) in Posi-
tion: 2) for the carrying out of drilling tasks (see ex-
ample Fig. C).
Rotary switch for screwing / drilling / ham-
mer-drilling
Using the rotary switch for screwing / drilling / ham-
mer-drilling (10), it is possible to choose between dif-
ferent operating modes.
• For screwing, turn the rotary switch to switch set-
ting A.
• For drilling, turn the rotary switch to switch setting B.
• For hammer-drilling, turn the rotary switch to switch
setting C.
Caution! Only move the rotary switch for screwing /
drilling / hammer-drilling (10) when the device is at a
standstill. Otherwise, there is a risk of damaging the
device.
Installation
Switching On /Off
Switching on:
To start the appliance squeeze on the ON / OFF switch
(3) and then keep it pressed down. The LED working
light (7) comes on with a slightly or fully pressed ON /
OFF switch (3) and illuminates the working area in
poor lighting conditions.
Switching off:
To stop the appliance, release the ON / OFF switch (3).
Adjusting the speed
The ON / OFF switch (3) has a variable speed control
device. Slight pressure on the ON / OFF switch (3)
will cause the rotation speed to slow down. With in-
creased pressure, the rotational speed will increase.
Note: The integrated engine brake means that the
device will come to a fast standstill.
Switching direction of rotation
22 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
To switch the direction of rotation, push the direction
of rotation switch (2) to either the right or to the left.
Tips and Tricks
Before you use the appliance, check to see that the
screw or drill bit is properly fitted, i.e. located centrally
in the chuck. Screw bits are designated with their di-
mensions and their shape. If you are unsure, always
try the particular screw bit out to see whether it sits in
the screw head without any free play.
Torque:
Smaller screws and bits in particular can be easily
damaged if you adjust the appliance with too high a
torque and/or rotation speed.
Hard screwdriving conditions (into metal):
Particularly high torques can occur, for example with
metal screws tightened by socket tool bits. Select a
lower rotation speed.
Soft screwdriving conditions (e.g. into soft
wood):
You should also select a low speed in order not to
damage the wood workpiece surface through contact
with the metal screw head.
Use a countersinker.
When drilling into wood, metal and other materials, take
note of the following advice: With small diameter drill
bits use a high drill speed. For large diameter drill bits,
use a low drill speed. For hard materials, select a low
drill speed. For soft materials, select a high drill speed.
Secure or fix down the workpiece (if possible) in a
clamp or vice.
Mark the intended position of the hole with a centre
punch or a nail and select a low drill speed for drilling.
Take the rotating drill bit out of the hole frequently so
that swarf or drill dust can be re-moved and the hole
and tool is ventilated.
Drilling in metal:
Use a metal drill bit (HSS). For the best results, you
should cool the bit with oil.
Metal drill bits can also be used to drill into plastic.
Drilling in stone:
Use a circular shafted masonry drill bit with a hard-
ened metal tip.
Drilling in wood:
Normally you should use a wood drill with a cen-
tring point. For deep holes, use an auger type bit.
For large diameter holes, use a forstner bit. You can
screw small screws into soft wood without the need
for pre-drilling.
